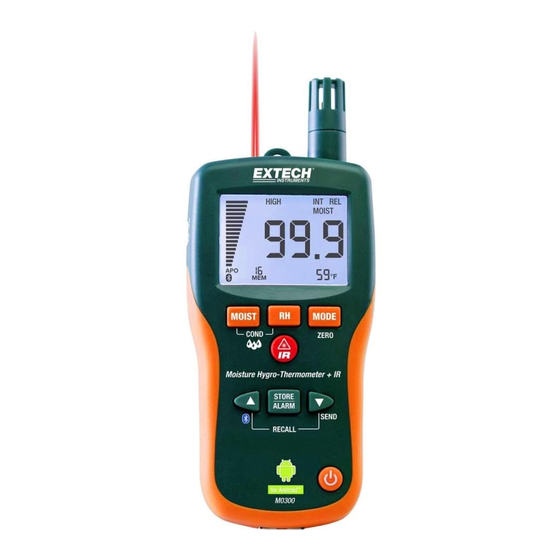

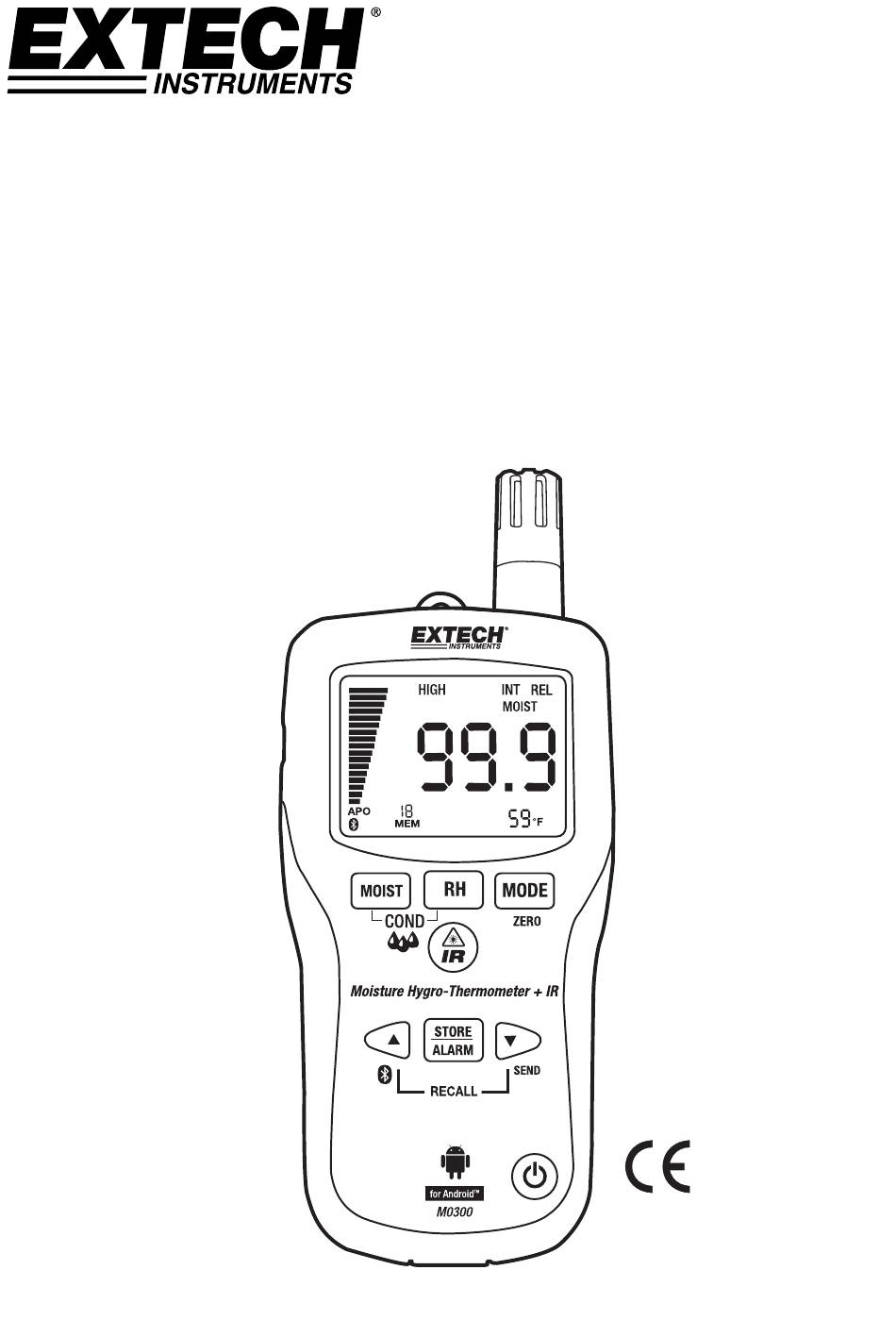

- Page 1 USER GUIDE Pinless Moisture/Humidity Meter with IR Thermometer Bluetooth and Android ready Model MO300 ...
-
Page 2: Meter Description
EXTECH INSTRUMENTS Introduction Congratulations on your purchase of the Extech MO300 with Bluetooth capabilities for use with the Android Application ExView MO300. This Pinless Moisture Meter incorporates a Patented Built‐ in IR Thermometer and 20 Point Memory. Monitor moisture in wood and other building materials with no surface damage with the Pinless Moisture sensor (Pin‐type Moisture Probe included). Measure Humidity and Air Temperature with built‐in probe plus non‐contact InfraRed Temperature with patented IR design. Advanced functions provide Grains per Pound, Dew Point and Vapor Pressure calculations. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Meter Description IR temperature sensor Laser pointer Humidity sensor Temperature sensor LCD display Relative Humidity button Mode/Zero Button IR thermometer button Alarm set button 10. Alarm adjust down / SEND button 11. ON/OFF power button 12. Remote pin probe input jack (bottom) 13. Battery compartment (rear) 14. Alarm adjust up / Bluetooth button 15. Moisture/Relative button Note: Protective sensor cap not pictured. MO300-EN v1.3 5/14... - Page 3 EXTECH INSTRUMENTS LCD Display Icons MIN MAX REL – Minimum, Maximum, Relative values HIGH LOW – Alarm limits INT EXT – Internal/External probe mBar – Vapor pressure kPa – Vapor pressure GPP – Grains per Pound g/kg – Grains per kilogram MOIST – Moisture mode RH% ‐ Relative Humidity mode COND – Condensation mode APO – Auto power OFF feature DEW – Dew Point temperature C/F – Temperature units ‐ Low battery MEM ‐ Memory location indicator ‐ Laser pointer ON ‐ Bluetooth ON Safety Use extreme caution when the laser pointer beam is on Do not point the beam toward anyone's eye or allow the beam to strike the eye from a reflective surface Do not use the laser near explosive gases or in other potentially explosive areas MO300-EN v1.3 5/14...
-
Page 4: Battery Replacement
Features Quickly indicates the moisture content of materials with Pinless technology without damaging the surface; Optional remote Pin‐type probe (MO290‐P) allows for moisture readings at different penetration levels (3ft/0.9m cable length); Easy to read, large dual display with backlit feature; Simultaneously displays % moisture of wood or material being tested and Air Temperature, IR Temperature, or Humidity Designed with patented IR design to measure non‐contact surface temperature; 8:1 distance to spot ratio with 0.95 fixed emissivity Built‐in Humidity/Temperature probe measures Relative Humidity, Air Temperature plus Grains Per Pound (GPP) and Dew Point (DP) Ambient and Surface Vapor Pressure Automatic calculation of differential Temperature (IR ‐ DP) Min/Max and Data Hold 20 point internal memory Auto power off and low battery indication Battery Replacement Turn off the meter. Remove one rear Philips head screw and lift off the rear battery cover. Replace the 9V battery. Secure the rear battery cover. MO300-EN v1.3 5/14... -
Page 5: Operation
Powering the meter Remove the RH sensor protective cap before use. Press the power button to turn the meter on. If the symbol appears or the meter does not turn on, replace the battery. Note: Operation with Bluetooth enabled reduces battery life to less than 8 hours. Using an external AC adaptor is recommended when the meter will be used for monitoring over a long period of time. Humidity (Dew point, GPP, g/kg) Measurements Press the power button to turn the meter on. Press the RH button Relative Humidity will be displayed in the primary display and the temperature will be displayed in the secondary display. Press the up or down arrow button to change the temperature units. Press the MODE button to display the DEW point. Press the MODE button to display GPP (°F) or g/kg (°C). Press the ▲or ▼button to toggle between GPP or g/kg. Pinless Moisture Measurements Press the power button to turn the meter on. Press the MOIST button to select Moisture measurement.” MOIST”, and “INT” (internal pinless sensor) will appear in the display. Hold the meter so that the rear sensor is away from any surface or your hand. The reading should be near 0.0. If not, press and hold the ZERO button for more than 2 second and the ZERO icon appears. Place the rear sensor on the surface of the material to be tested and read the relative moisture content. Pin Type Moisture Measurements Connect the external pin probe to the jack on the bottom of the meter. Press the power button to turn the meter on. Press the MOIST button twice to select Moisture measurement.” MOIST”, and “EXT” (external pin probe) will appear in the display. Press the probe pins into the material and read the % moisture content in the display. MO300-EN v1.3 5/14... - Page 6 EXTECH INSTRUMENTS Infrared Temperature Measurements Press the power button to turn the meter on. Press the IRT button to enable the IR thermometer and the laser pointer. The laser pointer icon will flash while the mode is active. Press the ▲or ▼button to change the temperature units Aim the laser pointer at the surface to be measured and read the surface temperature in the secondary display. Release the IRT button. The last temperature measured and the laser icon will remain on the display for approximately 10 seconds before returning to ambient temperature measurement. IRT MAX MIN display: The meter can be set to display only the maximum or minimum temperature measured during an IR scan. With the meter in the IR hold mode, press the MODE button. “MIN” will appear in the display. Press the IRT button to enable the IR thermometer. The meter will display the minimum temperature measured and will update only when a lower temperature is measured. Press the MODE button twice to enable the MAX mode and proceed as stated above for the maximum temperature. The MAX or MIN temperature is not stored when the function is exited. The unit automatically exits MAX/MIN mode after approximately 10 seconds. MO300-EN v1.3 5/14...
- Page 7 40mm @ 320mm WARNING: Do not directly view or direct the laser pointer at an eye. Low power visible lasers do not normally present a hazard, but may present some potential for hazard if viewed directly for extended periods of time. Condensation Mode The Condensation feature alerts the user when the surface temperature as measured by the IR thermometer is close to or has reached the Dew Point temperature. Press the power button to turn the meter on. Simultaneously press the MOIST and RH buttons. The “COND” icon will appear. Point the meter at a surface, press the IRT button to measure the surface temperature. The small display will indicate the IR surface temperature and the large display will indicate the difference between the IR temperature and the Dew Point temperature. The meter will then report the potential for condensation on that surface in the following manner If the temperature of the IRT is more than 14°C (25°F) above the Dew Point, the temperature difference shall be displayed, with no other warning. If the temperature of the IRT is 3‐14°C (5‐25°F) above the Dew Point, the temperature difference shall be displayed, along with a standard Condensation Indicator icon. The meter shall beep once to confirm that the reading is in the risk area. If the temperature of the IRT is less than 3°C (5°F) above the Dew Point, the temperature difference shall be displayed, along with a flashing Condensation Indicator icon. The meter shall beep twice to confirm that the reading is in the high‐risk area. Press the RH button to exit the mode. MO300-EN v1.3 5/14...
- Page 8 EXTECH INSTRUMENTS Vapor Pressure Mode Ambient Vapor Pressure With the Condensation mode active, press the MODE button to display the Vapor Pressure in mBAR (°F) or kPa (°C). Press the ▲or ▼button to toggle between mBAR and kPa. Press the MODE button to exit the Vapor Pressure mode. Surface Vapor Pressure Enter the Vapor Pressure mode as described above. Press the IRT button and aim the laser pointer at the surface to be measured to display the Surface Vapor Pressure in mBAR (°F) or kPa (°C). Alarm High and Low Limit Setting High and Low alarm points can be set for Humidity and Moisture measurements. Humidity Alarm Set Procedure: With RH% displayed, simultaneously press the RH and MODE buttons. The “HIGH” icon will appear on the display. Press the ▲or ▼button to set the high limit desired. Press the STORE/ALARM SET button to save the value and proceed to the LOW set value. With the “LOW” icon in the display, Press the ▲or ▼button to set the low limit desired. Press the STORE/ALARM SET button to save the value and to return to the normal mode. If the humidity measurement is lower than the low alarm setting or higher than the high alarm setting, the meter will beep once every second. Moisture Alarm Set Procedure: With MOIST displayed, simultaneously press the MOIST and MODE buttons. The “HIGH” icon will appear on the display. Press the ▲or ▼button to set the high limit desired. Press the STORE/ALARM SET button to save the value and proceed to the LOW set value. With the “LOW” icon in the display, Press the ▲or ▼button to set the low limit desired. Press the STORE/ALARM SET button to save the value and to return to the normal mode. If the moisture measurement is lower than the LOW alarm setting, the meter will beep once every second If the moisture measurement is higher than the HIGH alarm setting, the meter will beep continuously. MO300-EN v1.3 5/14...
- Page 9 When the 20 memory locations are full, the unit will overwrite old saved readings starting with memory location 01. Recalling Stored Readings: Simultaneously press and release the ▲and ▼ buttons to display stored readings. The numeric display above the MEM icon will flash and the data stored in that location will be displayed. Press the ▲or ▼button to scroll through the memory locations. To return to normal operating mode, press the STORE button. Clearing Stored Data: To clear stored data, press and hold the ▲and STORE buttons simultaneously until CLR appears on the display. Auto Power Off The meter will enter a sleep mode after 30 minutes of inactivity. The meter will emit a warning beep 15 seconds before shutting down. To disable the APO feature, press the MODE button when turning the meter ON. The “APO” icon will not appear, indicating it is disabled. Bluetooth and Android Communication This meter includes a Bluetooth module designed to communicate with an Android Application ExView MO300. Enable the MO300 Bluetooth by pressing and holding the ▲button for two seconds. The Bluetooth icon will appear in the display. Pair the meter to the Android App ExView MO300. Once paired, the data from the MO300 will be continuously displayed and updated on the Android App ExView MO300. Typical Moisture Measurement and Documentation Procedures Use the Moisture meter to measure the moisture levels at various suspect locations. When a spot of interest is located, store the moisture reading in the moisture meter’s memory. Recall the reading from memory. The moisture meter will now continuously transmit this reading via Bluetooth. MO300-EN v1.3 5/14...
- Page 10 This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna during transmission. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. MO300-EN v1.3 5/14...
-
Page 11: Specifications
Accuracy Pinless Moisture 0 to 99.9 Relative only External ‐ Moisture in 6‐99 % ± 5% wood External ‐ Moisture in 13‐99 % ± 5% building materials Pinless Depth Up to 0.75” (19mm) RH Measurement 0 to 10% ± 3%RH 11 to 90% ± 2.5%RH 91 to 100% ± 3%RH 3.6F (2.0C) Air Temperature ‐20 to 170°F (‐29 to 77°C) IR Temp ‐4 to 31F 9F 32°F ± 2°F 33 to 392F Greater of 3.5% or 9F 4.5C ‐20 to‐1C 1C 0C Greater of ±3.5% or ± 4.5°C 1 to 200C MO300-EN v1.3 5/14... - Page 12 3‐digit primary display, 4‐digit secondary display Vapor Pressure 0 to 20.0kPA, calculated from temperature and RH measurements Dew Point ‐22 to 199°F (‐30 to 100°C) Mixing Ratio 0‐999GPP (0 to 160g/kg) Sample Rate 2 per second Backlight White LED Memory 20 point memory Bluetooth range 32 feet (10 meters) approximately Operating Temperature 40 to 110°F (4 to 43°C) Storage Temperature ‐14 to 140°F (‐30 to 60°C) Operating Humidity: 90%, 32‐86°F (0‐30°C) 75%, 86‐104°F (30‐40°C) 45%, 104‐122°F (40‐50°C) Storage Humidity 90% Power Supply 9V battery Auto Power Off (APO) After 30 min. inactivity. The APO function can be disabled by the user. APO Quiescent Current 50µA maximum Dimensions 6.5 x 2.8 x 1.5’’ (165 x 70 x 38mm) Weight 7.4 oz. (210g) MO300-EN v1.3 5/14...
-
Page 13: Warranty
EXTECH INSTRUMENTS Warranty FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department for authorization. Visit the website www.extech.com for contact information. A Return Authorization (RA) number must be issued before any product is returned. The sender is responsible for shipping charges, freight, insurance and proper packaging to prevent damage in transit. This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification. FLIR Systems, Inc. specifically disclaims any implied warranties or merchantability or fitness for a specific purpose and will not be liable for any direct, indirect, incidental or consequential damages. FLIR’s total liability is limited to repair or replacement of the product. The warranty set forth above is inclusive and no other warranty, whether written or oral, is expressed or implied. Calibration, Repair, and Customer Care Services FLIR Systems, Inc. offers repair and calibration services for the Extech Instruments products we sell. NIST certification for most products is also provided. Call the Customer Service Department for information on calibration services available for this product. Annual calibrations should be performed to verify meter performance and accuracy. Technical support and general customer service is also provided, refer to the contact information provided below. Support Lines: U.S. (877) 439‐8324; International: +1 (603) 324‐7800 Technical Support: Option 3; E‐mail: support@extech.com Repair & Returns: Option 4; E‐mail: repair@extech.com Product specifications are subject to change without notice Please visit our website for the most up‐to‐date information www.extech.com FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA ISO 9001 Certified Copyright © 2014 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com MO300-EN v1.3 5/14... - Page 14 EXTECH INSTRUMENTS Garantie FLIR Systems, Inc. garantit que cet appareil Extech Instruments est exempt de défauts matériaux et de fabrication pendant un an à partir de la date d’envoi (une garantie limitée de six mois s’applique aux capteurs et aux câbles). Si le renvoi de l’appareil pour réparation devient nécessaire durant ou après la période de garantie, contactez le service client pour autorisation. Pour obtenir les coordonnées, visitez le site Web suivant : www.extech.com. Un numéro d’autorisation de retour (AR) doit être délivré avant tout retour de produit. L’expéditeur prend à sa charge les frais d’expédition, le fret, l’assurance et l’emballage correct de l’appareil afin de prévenir toute détérioration durant le transport. Cette garantie ne s’applique pas aux dommages imputables à l’utilisateur, tels que l’usage impropre ou abusif, un mauvais câblage, une utilisation non conforme aux spécifications, un entretien ou une réparation incorrecte, ou toute modification non autorisée. FLIR Systems, Inc. déclinera spécifiquement toute garantie ou qualité marchande ou aptitude à l’emploi prévu, et ne sera en aucun cas tenu responsable pour tout dommage conséquent, direct, indirect ou accidentel. La responsabilité totale de FLIR est limitée à la réparation ou au remplacement du produit. La garantie définie ci‐dessus est inclusive et aucune autre garantie, écrite ou orale, n’est exprimée ou implicite. Calibrage, réparation et services après‐vente FLIR Systems, Inc. offre des services de calibrage et de réparation pour les produits Extech Instruments que nous commercialisons. Nous fournissons également une certification NIST pour la plupart des produits. Contactez notre service client pour toute information sur les services de calibrage disponibles pour ce produit. Un calibrage doit être effectué chaque année pour vérifier les performances et la précision du mètre. Nous offrons également une assistance technique et un service à la clientèle. Veuillez vous reporter aux coordonnées fournies ci‐dessous. Lignes d’assistance: États‐Unis (877) 439‐8324; international: +1 (603) 324‐7800 Service d’assistance technique : Option 3 ; E‐mail : support@extech.com Réparations et retours : Option 4 ; E‐mail : repair@extech.com Les spécifications produit sont sujettes à modifications sans préavis. Pour les toutes dernières informations, veuillez visiter notre site Web. www.extech.com FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA Certifié ISO 9001 Copyright © 2014 FLIR Systems, Inc. Tous droits réservés, y compris la reproduction partielle ou totale sous quelque forme que ce soit. www.extech.com MO300-EN v1.3 5/14...
- Page 15 Clientes para obtener autorización. Visite www.extech.com para Información de contacto. Se debe expedir un número de Autorización de Devolución (AD) antes de regresar cualquier producto. El remitente es responsable de los gastos de embarque, flete, seguro y empaque apropiado para prevenir daños en tránsito. Esta garantía no se aplica a defectos resultantes de las acciones del usuario como el mal uso, alambrado equivocado, operación fuera de las especificaciones, mantenimiento o reparación inadecuada o modificación no autorizada. FLIR Systems, Inc., rechaza específicamente cualesquier garantías implícitas o factibilidad de comercialización o idoneidad para cualquier propósito determinado y no será responsable por cualesquier daños directos, indirectos, incidentales o consecuentes. La responsabilidad total de FLIR está limitada a la reparación o reemplazo del producto. La garantía precedente es inclusiva y no hay otra garantía ya sea escrita u oral, expresa o implícita. Servicios de calibración, reparación y atención a clientes FLIR Systems, Inc., ofrece servicios de reparación y calibración para los productos que vendemos de Extech Instruments. Además ofrecemos certificación NIST para la mayoría de los productos. Llame al Departamento de Servicio al Cliente para solicitar información de calibración para este producto. Para verificar el funcionamiento y precisión se debe realizar la calibración anual. Además se provee Soporte Técnico y servicios generales al cliente, consulte la información de contacto en seguida. Líneas de soporte: EE.UU. (877) 439‐8324; Internacional: +1 (603) 324‐7800 Soporte Técnico Opción 3; correo electrónico: support@extech.com Reparación / Devoluciones: Opción 4; correo electrónico: repair@extech.com Las especificaciones del producto están sujetas a cambios sin aviso Por favor visite nuestra página en Internet para la información más actualizada www.extech.com FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA Certificado ISO 9001 Copyright © 2014 FLIR Systems, Inc. Reservados todos los derechos, incluyendo el derecho de reproducción total o parcial en cualquier medio www.extech.com MO300-EN v1.3 5/14...
