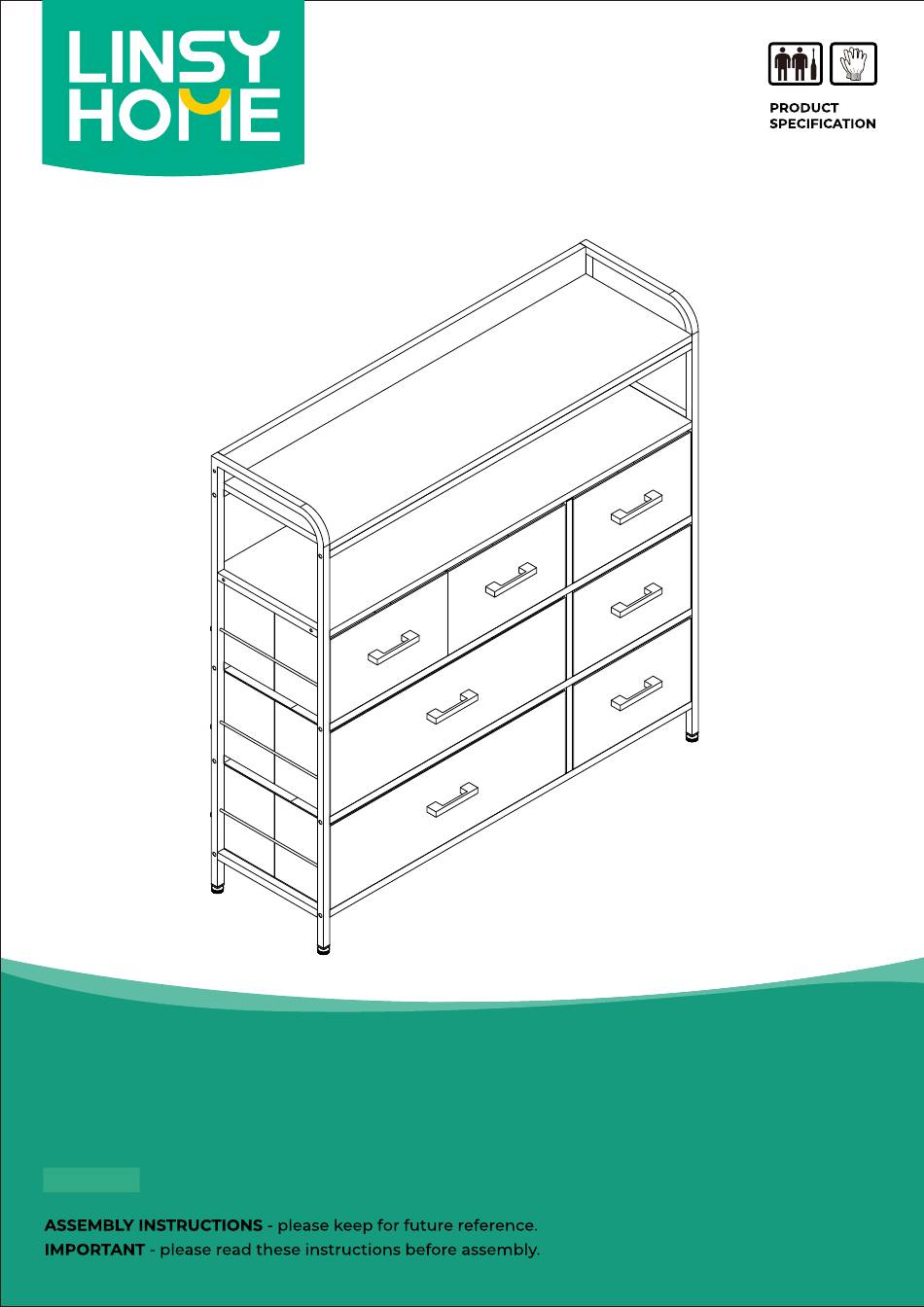

- Page 1 DRESSER WITH 7 DRAWERS - Width 37.7 inch AE1E - Depth 11.3 inch - Height 37.7 inch...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly. Please check if all the components and tools Please assemble the product as close to its listed on pages 3 - 4 are received. final position as possible. Please remove all fittings from the plastic bags Do not place furniture directly in front of and separate them into homologous groups.
- Page 3 Components Please check if all the pieces listed below are received. M6x4pcs M5x40x9pcs M6x25x18pcs M6x12x14pcs M3x1pcs 7pcs M4x8x14 pcs 2pcs M4x1pc...
- Page 4 Assembly Instructions Please use the screws correctly, otherwise the product will be seriously damaged ! Step 1 x 4 pcs x 1 pc Step 2 x 8 pcs x 1 pc...
- Page 5 Assembly Instructions Step 3 x 4 pcs x 1 pc Step 4 x 3 pcs x 1 pc...
- Page 6 Assembly Instructions Step 5 x 6 pcs x 1 pc Step 6 x 2 pcs x 1 pc...
- Page 7 Assembly Instructions Step 7 x 4 pcs x 4 pcs x 2 pcs x 1 pc x 1 pc Step 8 x 6 pcs x 1 pc...
- Page 8 Assembly Instructions Step 9 x 4 pcs x 4 pcs x 1 pc Step 10...
- Page 9 Assembly Instructions Step 11 x 2 pcs...
