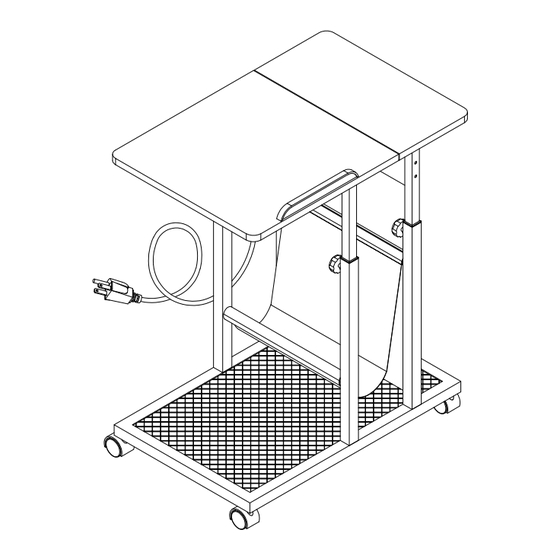

- Page 1 C Shaped End Table Assembly Instructions - Please keep for future reference. 1J-A -Length 23.5 inch - Width 15.7 inch - Height 28.3 inch Important– Please read these instructions before assembly.
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly. Please check if all the components and tools listed Please assemble the product as close to its on pages 3 - 4 are received. final position as possible. Please remove all fittings from the plastic bags and Do not place furniture directly in front of separate them into homologous groups.
- Page 3 Components Please check if all the pieces listed below are received. List Reference Description Specifications(mm) Quantity Material Bottom plate Steel 578*372*26 Top frame Steel 498*367*20 318*13 Connecting tube Steel 327*90*15 Small side plate Particle board 433*25*25 Bottom-left tube Steel 433*25*25 Bottom-right tube Steel Top-left tube...
- Page 4 Components Please check if all the pieces listed below are received. A *4 B *1 C *4 Wheels Spanner Screws D *4 E *4 F *4 Screws Screws Gaskets G *4 H *10 I *4 Screws Screws Screws J *1 K *1 L *1 Spanner...
- Page 5 Assembly Instructions Please use the screws correctly, otherwise the product will be seriously damaged ! Step 1 x 2 pcs x 2 pcs Step 2 x 2 pcs x 4 pcs x 2 pcs...
- Page 6 Assembly Instructions Step 3 x 4 pcs Do not tighten the screws at this step. Step 4 x 2 pcs x 4 pcs Please tighten all the screws.
- Page 7 Assembly Instructions Step 5 x 6 pcs Step 6 x 4 pcs...
- Page 8 Assembly Instructions Step 7 x 4 pcs Step 8 x 1 pcs...
