- Page 1 Tursdale Technical Services Ltd Unit N12B Tursdale Business Park Co. Durham DH6 5PG United Kingdom Phone: +44 ( 0 ) 191 377 3398 Fax: +44 ( 0 ) 191 377 3357 info@tursdaletechnicalservices.co.uk http://www.industrial-needs.com/ INSTRUCTION MANUAL PCE-LRF600...
-
Page 2: Table Of Contents
info@tursdaletechnicalservices.co.uk Contents 1 .Usage ..........................3 2. The main performance ......................3 3 The symbol of the inner lens and theirs functions ..............4 4. The operation of distance-measuring .................. 4 5. Points for attention while using .................... 4 6. Attachment .......................... 5... -
Page 3: Usage

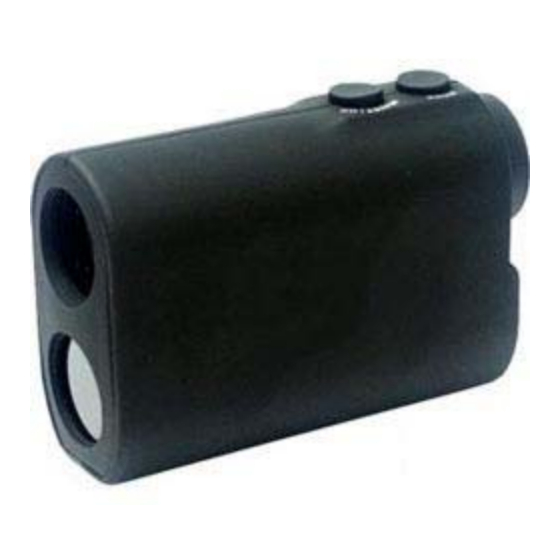

1 .Usage PCE-LRF600 laser distance-measuring telescope (abbreviated to DMT), combined with the function of common telescope and laser distance-measuring instrument, could measure the distance of the object in the distance of the particular scope. It is to save time of, give or get an electric shock-Save, show the distance directly, and power- Go away automatically. -
Page 4: The Symbol Of The Inner Lens And Theirs Functions
info@tursdaletechnicalservices.co.uk 2.14 The size of the shape: 40×99×68 mm 2.15 Weight: 180g 2.16 Water-proof function: not water-proof 3 The symbol of the inner lens and theirs functions 3.1 Symbol for aim: “--|--”, in which center there is a circle that used while measuring. 3.2 Distance—displaying: a there-figure number just above the field of vision;... -
Page 5: Attachment
info@tursdaletechnicalservices.co.uk 6. Attachment Leather box------------------------ one Strap----------------------------------one The lens cleanse cloth-----------one Directions---------------------------one In this direction will find a vision of the measurement technique: http://www.industrial-needs.com/measuring-instruments.htm NOTE: "This instrument doesn’t have ATEX protection, so it should not be used in potentially explosive atmospheres (powder, flammable gases)."...
