Omron K3NX Operation Manual

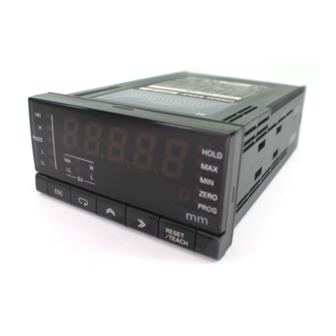

Process meter
Hide thumbs Also See for K3NX:
Table of Contents

Advertisement

Quick Links

Download this manual
Cat.No. N090–E1–1A
K3NX
Process Meter
OPERATION MANUAL
AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr

Advertisement

Table of Contents
loading

Related Manuals for Omron K3NX

Summary of Contents for Omron K3NX

  • Page 1 Cat.No. N090–E1–1A K3NX Process Meter OPERATION MANUAL AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr...
  • Page 2 K3NX Process Meter Operation Manual Revised June 2000 AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr...
  • Page 3 OMRON. No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS ....... . . 1 General Precautions .
  • Page 5 TABLE OF CONTENTS Appendices A Specifications ............. . B List of Settings .
  • Page 6 About this Manual: This manual describes the installation and operation of the K3NX Process Meter and includes the sec- tions described below. Please read this manual carefully and be sure you understand the information provided before attempting to install and operate the K3NX.

  • Page 7: Precautions

    This section provides precautions for using the K3NX Process Meter and related devices. The information contained in this section is important for the safe and reliable application of the K3NX. You must read this section and understand the information contained before attempting to set up or operate the K3NX.

  • Page 8: General Precautions

    OMRON representative. Be sure to read this manual before attempting to use the product and keep this manual close at hand for reference during operation.

  • Page 9: Noise Prevention

    Noise Prevention Section Noise Prevention Provide the following countermeasures when using the product in an environ- ment where the product is exposed to noise. • Countermeasures for protecting the product against high-frequency noise or abnormal voltages. Line filter Power Process Meter input + + + Signal...

  • Page 10: Introduction

    SECTION 1 Introduction This section describes the functions of the K3NX. The main components are also described. Refer to the remaining sections of this manual for the operation of the K3NX and its menus in detail. Features ..............

  • Page 11: Features

    K3NX. The teaching function can be used to set the set and scaling values. It can be also used to set the linear output range of the K3NX with a Linear Output Board. Refer to 5-1 Teaching Function for details.

  • Page 12: Front Of The Meter

    The startup compensation time parameter keeps the measurement operation from sending an unnecessary output corresponding to instantaneous, fluctuat- ing input from the moment the K3NX is turned ON until the end of the preset peri- Refer to Startup Compensation Time, page 44.
  • Page 13 Setting Mode: Displays the menu, parameter, or setting value. When chang- ing a value, all digits other than those that can be set become dimmer. K3NX-jjjC Set Value LED Display Model RUN Mode: Displays the process, maximum, and minimum values.
  • Page 14 Front of the Meter Section 1-2 In the RUN mode, this button terminates the measurement process and allows you to enter the setting mode, advancing through the menus and parameters. Menu 1 Menu 2 Menu n Parameter 1 Parameter 2 Parameter n In the setting mode, this button will store changes in the non-volatile memory while at the same time advancing the display to the next menu item.

  • Page 15: Rear Of The Meter

    For wiring, refer to Section 2 Setup. K3NX with Relay Output Board, K31-C1, -C2, -C5 K3NX with Transistor Output Board, K31-T1, -T2 K3NX with Linear Output Board, K31-L1, -L2, -L3, -L4, -L5, -L6, -L7, -L8, -L9, -L10 K3NX with RS-485 Output Board, K31-FLK2, -FLK5 Output board...

  • Page 16: Modes

    Modes Section 1-4 K3NX with RS-422 Output Board, K31-FLK3 Communications output board Terminator Input board K3NX with RS232C + Transistor Output Board, K31-FLK4 K3NX with RS-422 + Transistor Output Board, K31-FLK6 Communications output board Transistor output board Terminator Input board Note There is no terminator with K31-FLK4 models.

  • Page 17: Communications Function

    Refer to Section 4 Operations in RUN Mode for RUN mode in detail. Setting Mode Values are set in the K3NX in this mode by key input or using the teaching func- tion. Refer to Section 3 Parameter Setting for value setting by key input and 5-1 Teaching Function for the teaching function in detail.

  • Page 18: Setup

    SECTION 2 Setup This section provides instructions required for mounting and wiring the K3NX. Mounting ............. . .

  • Page 19: Mounting

    Section 2-1 Mounting Mounting Dimensions All dimensions are in millimeters. PV LED Indicator Size 14.2 mm 8.2 mm Panel Cutouts +0.8 –0 75 min. +0.8 –0 120 min. Recommended panel thickness is 1 to 3.2 mm. Do not mount more than one Unit closely in the horizontal or vertical direction. Be sure to keep the distance between adjacent Units.

  • Page 20: Base Unit

    Panel 1, 2, 3... 1. Insert the K3NX into the mounting hole on the panel. 2. Hook the fixture claws onto the side holes. 3. Mount a fixing metal to the right and left sides as shown above and while keeping them in balance, alternately tighten each screw until the ratchet be- comes idle.

  • Page 21: Wiring Precautions

    2-2-2 Wiring Precautions • Do not make any mistake in polarity when supplying DC power to the K3NX. • Do not wire power lines alongside the signal lines of the K3NX in order to pre- vent the K3NX from noise interference.
  • Page 22 Base Unit Section 2-2 External Control Input HOLD Input RESET Input ZERO Input Connect external signal input to terminals 5, 6, 7, 13, and 16. Terminals 7 and 13 are connected to each other internally. Connected internally. Connect hold signal (HOLD) input to terminal 5. Connect reset signal (RESET) input to terminal 6.

  • Page 23: Output Board

    K3NX with Relay Output Board, K31-C1, -C2, -C5 K3NX with Transistor Output Board, K31-T1, -T2 K3NX with Linear Output Board, K31-L1, -L2, -L3, -L4, -L5, -L6, -L7, -L8, -L9, -L10 K3NX with RS-485 Output Board, K31-FLK2, -FLK5 K3NX with BCD Output Board, K31-B2, -B4 K3NX with RS232C + Transistor Output Board, K31-FLK4 AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr...
  • Page 24 Output Board Section 2-3 K3NX with RS-422 + Transistor Output Board, K31-FLK6 K3NX with RS-232C Output Board, K31-FLK1 K3NX with RS-422 Output Board, K31-FLK3 AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr...

  • Page 25: Relay Output Board

    Output Board Section 2-3 2-3-2 Relay Output Board The following figures show the connections for relay output. K3NX with 5 Relay K3NX with 3 Relay Output Boards, Output Boards, K31-C2 K31-C1 HH comparative output comparative output H comparative output PASS...

  • Page 26: Transistor And Combination Output Board

    Board, K31-B2 or K31-B4 Transistor Output Boards, K31-FLK4 K3NX with Linear Output Board, K31-L4, -L5, -L6, -L9, -L10 K3NX with RS-422 + 5 Transistor Output Boards, K3NX with RS-485 + 5 Relay K31-FLK6 Output Boards, K31-FLK5 HH comparative HH comparative HH comparative output...

  • Page 27: Parameter Setting

    SECTION 3 Parameter Setting This section provides instructions for setting the parameters of the K3NX. Be sure to read this section before using the K3NX Process Meter for the first time. Overview ............. . .

  • Page 28: Overview

    K3NX will vary depending on the Output Board installed. Refer to Appendix D Available Parameters. • The K3NX is in RUN mode when the K3NX is turned on. Parameter settings in protect or setting mode are described below on the basis that the parameters are set for the first time.

  • Page 29: Setting Mode

    Setting Mode 3-2-1 Selecting Setting Mode • The K3NX in RUN mode will go into setting mode if the Mode Key is pressed for 1 s minimum. • The K3NX in setting mode will go into RUN mode if the Escape Key is pressed.

  • Page 30: Menu Overview

    Setting Mode Section 3-2 3-2-2 Menu Overview Press the Mode and Shift Keys Maintenance Mode while turning the K3NX on. Power On Refer to Section 5 Useful Functions. Press the Escape Key. RUN Mode Press the Escape and Refer to Section 4 RUN Mode Operations.

  • Page 31: Hh Set Value (Su.hh)

    Refer to 5-1 Teaching Function. Refer to 4-2 Displaying and Changing Set Values. REFERENCE • The setting value menu is only available for K3NX with the Comparative Out- put Board. MODELS AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr...
  • Page 32 Setting Mode Section 3-2 SETTING Follow the steps described below to input the following. EXAMPLE Setting value HH = “8000” Setting value H = “6000” Setting value L = “4000” Setting value LL = “2000” Set Value LED Display Model Basic Model 1.
  • Page 33 Setting Mode Section 3-2 6. Press the Up and Shift Keys to set the value to 6000. The input will be vali- dated automatically if no change is made for five seconds. The sU. h H set- ting value setting will be displayed again. Note Press the Mode Key to enter the set value immediately.
  • Page 34 Setting Mode Section 3-2 12. Press the Up and Shift Keys to set the value to 2000. The input will be vali- dated automatically if no change is made for five seconds. The sU.ll LL set- ting value setting will be displayed again. Note Press the Mode Key to enter the set value immediately.

  • Page 35: Scaling Menu (Scale)

    For example, if a sensor with 4- to 20-mA output is connected to the K3NX and the K3NX is set so that it will display “0” for 4-mA input and “999” for 20-mA input, the following will be the relationship between input and display values.
  • Page 36 Setting Mode Section 3-2 • Input and Display Values Input type Setting range Default DC voltage input –19999 to 99999 Input value 2 199.99 SETTING Display value 2 199.99 Input value 1 –199.99 Display value 1 –199.99 DC current input –19999 to 99999 Input value 2 199.99...
  • Page 37 Setting Mode Section 3-2 2. Press the Shift Key to display the prior set value 199.99 for changing. The PROG indicator will flash. Set Value LED Display Model Basic Model 3. Press the Up and Shift Keys to set the value to 005.00. The input will be vali- dated automatically if no change is made for five seconds.
  • Page 38 Setting Mode Section 3-2 8. Press the Shift Key to display the prior set value 199.99 for changing. The PROG indicator will flash. Set Value LED Display Model Basic Model 9. Press the Up and Shift Keys to set the value to 001.00. The input will be vali- dated automatically if no change is made for five seconds.
  • Page 39 Setting Mode Section 3-2 14. Press the Shift Key to display the prior decimal point position %%%.%% for changing. The PROG indicator will flash. Set Value LED Display Model Basic Model 15. Press the Up Key to set the decimal point position to %%%%.%. The input will be validated automatically if no change is made for five seconds.

  • Page 40: Setup Menu (Setup)

    Setting Mode Section 3-2 3-2-5 Setup Menu (setup) in t Input Range • Select the appropriate input type signal. All parameters will be set to default values if the input range is changed. FUNCTION Input type Setting Measurement range Default range a Ud a Ud...
  • Page 41 Setting Mode Section 3-2 2. Press the Shift Key to display the prior set value aU d for changing. The PROG indicator will flash. Set Value LED Display Model Basic Model 3. Repeatedly press the Up Key until e Ud is displayed. The displayed setting will be validated automatically if no change is made for five seconds.

  • Page 42: Power Supply Frequency (Fre)

    Setting Mode Section 3-2 Power Supply Frequency • Set the number of sampling times in the setup menu according to the power supply frequency in order to shut off inductive noise that may be generated from the power supply. FUNCTION Setting Unit Number of sampling...
  • Page 43 Setting Mode Section 3-2 When no operation is executed for five seconds Set Value LED Display Model Basic Model Note Press the Mode Key to enter the displayed setting immediately. The next parameter will be displayed for setting. AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr...

  • Page 44: Communications Unit Number (U No)

    • Set a communications unit number as an identification number by which the host computer is connected to the K3NX. • If more than one K3NX is connected in parallel, make sure that each commu- FUNCTION nications unit number is unique.
  • Page 45 Setting Mode Section 3-2 3. Press the Shift Key to display the prior set value 00 for changing. The PROG indicator will flash. Set Value LED Display Model Basic Model 4. Press the Up and Shift Keys to set the value to 15. The input value will be validated automatically if no change is made for five seconds.

  • Page 46: Word Length (Len)

    Setting Default none: None eUen eUen: Even odd: Odd This setting is available for the K3NX with the Communications Output Board. MODELS SETTING Follow the steps described below to set the following. EXAMPLE Word length: 8 bits Number of stop bits: 1...
  • Page 47 Setting Mode Section 3-2 2. Repeatedly press the Mode Key until the len word length setting is dis- played. Set Value LED Display Model Basic Model 3. Press the Shift Key to display the prior set value 7 for changing. The PROG indicator will flash.
  • Page 48 Setting Mode Section 3-2 9. Press the Shift Key to display eUen for changing. Set Value LED Display Model Basic Model 10. Press the Up Key to display none. The setting will be validated automatically if no change is made for five seconds. The prty parity bit setting will be dis- played again.

  • Page 49: Option Menu (Opt)

    Setting Mode Section 3-2 3-2-6 Option Menu (opt) Average Processing • The average processing of inputs are enabled for setting. • Average processing prevents the display from fluctuating due to unstable in- put. FUNCTION • Select simple average processing or movement average processing and the number of sampling times.
  • Page 50 Setting Mode Section 3-2 REFERENCE Input value Display value Without average processing Input value Display value Simple average processing Input value Display value Movement average processing Simple Average Processing: The average value is displayed after the input is sampled “n” times. The previous value is displayed until the sampling is complete.
  • Page 51 Setting Mode Section 3-2 Movement Average Processing When an input is sampled, the new sampling data is added to the previous sam- pling data and averaged. Movement average processing is ideal for removing cyclic noise from the input signal. The number of sampling times can be set to 2, 8, 16, or 32. SETTING Follow the steps described below to set the number of movement average processing EXAMPLE...

  • Page 52: Startup Compensation Time (Stine)

    K3NX enters measurement operation is set in the option menu. FUNCTION Setting range Unit Default 0.0 to 99.9 SETTING The K3NX will display “00000” with all outputs turned OFF until the K3NX is in measurement operation. REFERENCE Power supply Input value Measured value t: Startup compensation time...
  • Page 53 Setting Mode Section 3-2 3. Press the Shift Key to display the prior set value 000 for changing. The PROG indicator will flash. Set Value LED Display Model Basic Model 4. Press the Up and Shift Keys to set the value to 02.0. The setting will be vali- dated automatically if no change is made for five seconds.

  • Page 54: Hysteresis (Hys)

    Hysteresis Hysteresis L setting value H comparative output L comparative output This setting is only available for the K3NX with the Comparative Output Unit. MODELS SETTING Follow the steps described below to set the hysteresis to 30. EXAMPLE Set Value LED Display Model Basic Model 1.
  • Page 55 Setting Mode Section 3-2 2. Repeatedly press the Mode Key until the hys hysteresis setting is displayed. Set Value LED Display Model Basic Model 3. Press the Shift Key to display the prior set value 0001 for changing. The PROG indicator will flash. Set Value LED Display Model Basic Model 4.

  • Page 56: Comparative Output Pattern (C Out)

    Setting Mode Section 3-2 c out Comparative Output Pattern • The pattern of HH, H, L, LL, and PASS comparative outputs is set in the option menu. FUNCTION Setting Default nomal: Standard output nomal =one: Zone output SETTING leUel: Level output Standard Output H or HH Comparative Output: Turns ON when the measured value is larger than the H or HH setting value.
  • Page 57 Setting Mode Section 3-2 Level Output LL, L, H, or HH Comparative Output: Turns ON when the measured value exceeds the LL, L, H, or HH setting value. PASS Output: Turns ON when the LL, L, H, and HH comparative outputs are all OFF. HH setting value Measured value H setting value...
  • Page 58 Setting Mode Section 3-2 This setting is only available for the K3NX with the Comparative Output Units.- MODELS SETTING Follow the steps described below to set the comparative output pattern to level output. EXAMPLE Set Value LED Display Model Basic Model 1.
  • Page 59 Lower Limit (L) of Linear Output Range Linear output setting is made in the option menu to enable the K3NX to have voltage or current output in proportion to the change in display value. • The maximum and minimum values of linear output are set in this parameter.
  • Page 60 Setting Mode Section 3-2 SETTING Follow the steps described below to set the following. EXAMPLE H: 100.00 L: 0.00 Set Value LED Display Model Basic Model 1. Press the Mode Key for more than one second while the opt option menu is 1, 2, 3...
  • Page 61 Setting Mode Section 3-2 7. Press the Up and Shift Keys to set the value to 000.00. The setting will be validated automatically if no change is made for five seconds. The lset.l L linear output range setting will be displayed again. Note Press the Mode Key to enter the set value immediately.

  • Page 62: Remote/Local Programming (R L)

    Section 3-2 Remote/Local Programming • The K3NX can be set to remote or local mode in the option menu. The K3NX in remote mode is operated through the host computer and the K3NX in local mode is operated through the front panel key input.
  • Page 63 Setting Mode Section 3-2 5. The setting will be validated automatically if no change is made for five se- conds. The aUg average processing setting will be displayed again. Note Press the Mode Key to enter the setting immediately. The r l re- mote/local setting will be displayed again.

  • Page 64: Protect Mode

    Protect Mode 3-3-1 Selecting Protect Mode • The K3NX in RUN mode will go into protect mode if the Escape and Up Keys are pressed for more than 1 second. • The K3NX in protect mode will go into RUN mode if the Escape Key is pressed.

  • Page 65: Menu Overview

    5 seconds. Note 1. The K3NX stops measurement in setting mode. 2. Some menus cannot be set due to the display type or output type selected. AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr...

  • Page 66: All Key Protect (All)

    Protect Mode Section 3-3 3-3-3 Protect Menu (prot) All Key Protect • The operation of all keys can be prohibited in the protect menu. FUNCTION Setting Default kpon: Key protect ON kpoff kpoff: Key protect OFF SETTING SETTING Follow the steps described below to set the key protect to ON. EXAMPLE Set Value LED Display Model Basic Model...

  • Page 67: Setting Value Change Prohibit (Suset)

    Protect Mode Section 3-3 sUset Setting Value Change Prohibit • The setting value change of the K3NX in RUN mode with the front panel key inputs can be prohibited in the protect menu. FUNCTION Setting Default kpon: Key protect ON...
  • Page 68 Protect Mode Section 3-3 4. Press the Up Key to display kpon. The setting will be validated automatically if no change is made for five seconds. The sUset setting value prohibit set- ting will be displayed again. Note Press the Mode Key to enter the setting immediately. The next pa- rameter will be displayed for setting.

  • Page 69: Forced-Zero Prohibit (=Ero)

    Protect Mode Section 3-3 =ero Forced-zero Prohibit • Forced-zero setting with key input can be prohibited in the protect menu. However, forced-zero setting with external signal input is permitted. FUNCTION Setting Default kpon: Key protect ON kpon kpoff: Key protect OFF SETTING Refer to 2 Forced-zero.
  • Page 70 Protect Mode Section 3-3 4. Press the Up Key to display kpoff. The setting will be validated automatical- ly if no change is made for five seconds. The =ero forced-zero prohibit set- ting will be displayed again. Note Press the Mode Key to enter the setting immediately. The next pa- rameter will be displayed for setting.

  • Page 71: Maximum/Minimum Value Clear Prohibit (Mm.rst)

    Protect Mode Section 3-3 mm.rst Maximum/Minimum Value Clear Prohibit • The resetting of maximum and minimum values with key input can be prohib- ited in the protect menu. However, the resetting of maximum and minimum values with external signal FUNCTION input is permitted.
  • Page 72 Protect Mode Section 3-3 4. Press the Up Key to display kpon. The setting will be validated automatically if no change is made for five seconds. The mm.rst maximum/minimum value clear prohibit setting will be displayed again. Note Press the Mode Key to enter the setting immediately. The next pa- rameter will be displayed for setting.

  • Page 73: Security (Secr)

    Protect Mode Section 3-3 secr Security • Settings in setting mode can be prohibited in the protect menu. • The following table shows what set values for menus can be prohibited. The default is 0. FUNCTION Set value Menu Setting value Prohibited SETTING Scaling...
  • Page 74 Protect Mode Section 3-3 4. Press the Up Key to display 1. The setting will be validated automatically if no change is made for five seconds. The secr security setting will be dis- played again. Note Press the Mode Key to enter the setting immediately. The next pa- rameter will be displayed for setting.

  • Page 75: Operations In Run Mode

    SECTION 4 Operations in RUN Mode This section provides instructions for operating the K3NX in RUN mode. Forced-zero .............

  • Page 76: Forced-Zero

    Section 4 Forced-zero Forced-zero • The forced-zero function enables the K3NX to shift the process value to 0, which allows relative object measurement with ease when one of the following is activated in RUN mode. The RESET/TEACH Key is pressed while the process value is displayed.

  • Page 77: Displaying And Changing Setting Values

    4-2-1 Displaying Setting Values Basic Model • When the Mode Key is pressed in RUN mode, the K3NX displays a setting val- ue on the PV display (in the order of HH, H, L, and LL). • While the setting value is displayed, the corresponding SV display status indi- cator is lit.
  • Page 78 • Repeatedly press the Mode Key until the process value appears. • Leave the K3NX with no key input for five seconds. AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr...
  • Page 79 Displaying and Changing Setting Values Section 4-2 SETTING EXAMPLE Set Value LED Display Follow the steps below to change the H setting value from 600 to 700 while the Model process value is displayed in RUN mode, provided that the HH setting value is already displayed on the SV display.

  • Page 80: Displaying And Resetting Of Maximum And Minimum Values

    The external RESET input signal is turned ON. The K3NX receives the reset command through communications. • When the K3NX is reset, the maximum and minimum values are set to the pro- cess value. Note The K3NX cannot be reset with the RESET/TEACH Key if the maximum/mini- mum value clear prohibit is ON in protect mode.

  • Page 81: External Input Signals

    External Input Signals Section 4-4 3. Press the RESET/TEACH Key to set the maximum and minimum values to the process value 401. Set Value LED Display Model Basic Model 4. Press the Escape Key to check that the minimum value is set to 401. Set Value LED Display Model Basic Model External Input Signals...

  • Page 82: Hold

    4-4-3 HOLD • The K3NX will stop the measurement if the HOLD input is ON. • When the HOLD input is ON, the K3NX will retain the process value, output, and BCD data effective immediately before the HOLD input. • The HOLD indicator is lit while HOLD input is ON.

  • Page 83: Useful Functions

    SECTION 5 Useful Functions This section provides information on the teaching function, output test, and maintenance mode. Teaching Function ............5-1-1 Set Value .

  • Page 84: Teaching Function

    Teaching Function Teaching Function • The K3NX is provided with a teaching function that can set an actual measured value as a set value without any front panel key input. This function is useful for setting parameters while checking the operating sta- tus of the K3NX.

  • Page 85: Scaling Value

    Section 5-1 Teaching Function 5-1-2 Scaling Value • A scaling input value can be set using the actual measured value instead of key input in the scaling menu. • Follow the steps below to teach the setting value. 1, 2, 3... 1.

  • Page 86: Linear Output Range

    5-1-3 Linear Output Range The teaching function can be also used to set the linear output range of the K3NX with the Linear Output Board. • The H and L linear output ranges can be set using the actual measured value instead of key input in the option menu.

  • Page 87: Output Test

    • Follow the steps described below to perform the test. 1, 2, 3... 1. While the K3NX is in RUN mode, press the Mode Key for more than one se- cond to set the K3NX to the setting mode. 2. Repeatedly press the Mode Key until test output test setting is displayed.

  • Page 88: Maintenance Mode

    Maintenance Mode Section 5-3 Maintenance Mode The set values of the K3NX can be initialized and field calibration of the K3NX is possible in maintenance mode. The operations of the K3NX in this mode are de- scribed below. 5-3-1 Maintenance Mode •...

  • Page 89: Field Calibration

    Maintenance Mode Section 5-3 4. Press the Up Key to display yes. Press the Mode Key to initialize all set val- ues. The K3NX will go into RUN mode. Set Value LED Display Model Basic Model RUN mode 5-3-3 Field Calibration Calibration is to be performed when adjustment is required for display accuracy exceeding the specified value.
  • Page 90 2. Press the Mode Key to display the calib field calibration setting. Set Value LED Display Model Basic Model 3. Press the Shift Key so that the K3NX will be ready for the field calibration. Set Value LED Display Model Basic Model...
  • Page 91 6. Press the Mode Key to display the in t input range setting. Set Value LED Display Model Basic Model 7. Press the Shift Key so that the K3NX will be ready for the input range. Set Value LED Display Model Basic Model 8.
  • Page 92 Set Value LED Display Model Basic Model 18. Press the Mode Key to overwrite the calibration data and put the K3NX in RUN Mode. If no is selected, the calibration data will not be overwritten. AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr...

  • Page 93: Bcd Output

    SECTION 6 BCD Output This section provides information on the use of the K3NX with the BCD Output Board. Connectors ............. .

  • Page 94: Connectors

    Section 6-1 Connectors Connectors Terminal Arrangement Terminal Signal name Signal number direction GND:VO (See note 1.) RD1-1 Output 1: Read data 10 digit RD1-2 Output 2: Read data 10 digit RD1-4 Output 4: Read data 10 digit RD1-8 Output 8: Read data 10 digit RD2-1 Output...
  • Page 95 Plug: XM2A-3701 (OMRON) Hood: XM2S-3711 (OMRON) The depth required for the installation of the K3NX is 200 mm min. in consider- ation of the space required by the cable. Connecting Conditions Refer to the following for the connecting conditions of each I/O. Refer to 2-3 Out- put Block for output signals HH through LL.
  • Page 96 Section 6-1 Connectors Connection Example SYSMAC Programmable Controller Process Meter DC Input Unit 23.DSV Transistor Output Unit DC power supply Note 1. Connect RD2-1 through RD2-4, RS3-1 through RS3-4, RD4-1 through RD4-4, and RD5-1 through RD5-4 in the same way as RD1-1 through RD1-4.

  • Page 97: Timing Charts

    The polarity of the data must be checked with a POLARITY signal. The polarity is positive when the POLARITY signal is OFF and negative when the POLARITY signal is ON. The K3NX in output test has test data output regardless of the type of REQ sig- nal. Operating Conditions The RUN signal is turned ON in RUN or output test.

  • Page 98: Troubleshooting

    SECTION 7 Troubleshooting This section provides information for troubleshooting the K3NX. Items to Be Checked First ..........

  • Page 99: Items To Be Checked First

    The internal memory has an error. Remedy Turn the K3NX off and on. If the memory error still exists, the K3NX will need to be repaired. If the K3NX returns to normal operation, the K3NX may have been affected by noise. Check if there is any source of noise generation near the K3NX.
  • Page 100 Display Section 7-2 Notice When the power is turned ON for the first time after a separately purchased Out- put Unit is mounted to the K3Nj, the following messages will be displayed. Follow the procedures below to clear the messages. chg o Meaning of Message: This message is displayed when the power is turned ON after an Output Unit is...

  • Page 101: A Specifications

    Appendix A Specifications Ratings Supply voltage 100 to 240 VAC (50/60 Hz); 12 to 24 VDC Operating voltage 85% to 110% of supply voltage range Power consumption 15 VA max. (max. AC load with all indicators lit) (see note) 10 W max. (max. DC load with all indicators lit) Sensor power supply 80 mA at 12 VDC±10% (Use a power supply of less than 50 VAC or 70 VDC for input signals.)
  • Page 102 Baud rate 1,200/2,400/4,800/9,600/19,200/38,400 bps Transmission code ASCII (7-bit) Communications Write to K3NX Comparative set value, scaling value, remote/local programming, forced zero control, reset control of maximum/minimum values, and other setting mode items excluding communications conditions. Read from Process value, comparative set value, maximum value, minimum value, model...
  • Page 103 Appendix A Specifications Characteristics Input signal DC voltage/current, AC voltage/current A/D conversion Double integral method method Sampling period 50 Hz: 12.5 times/s; 60 Hz: 15 times/s (selectable) Display refresh period Sampling period (sampling times multiplied by number of averaging times if simple average processing is selected.) Max.
  • Page 104 Appendix B List of Settings Menu Parameter Setting range Unit Set value sUset sU.hh HH set value –19999 to 99999 Setting values menu sU. h –19999 to 99999 H set value sU. l L set value –19999 to 99999 sU.ll LL set value –19999 to 99999 scale...

  • Page 105: C Available Models

    Base Units Supply voltage Model Input type 100 to 240 VAC 12 to 24 VDC Basic Models DC voltage K3NX-VD1A K3NX-VD2A These models provide a pro- DC current K3NX-AD1A K3NX-AD2A cess value LED and front- panel control keys. Can be panel control keys.
  • Page 106 Base Units and Output Boards can be ordered individually or as sets. Refer to the Available Output Board Com- binations table on page 101. Base Units Output Boards Base Units with Output Boards K3NX - K31 - K3NX - 2 3 4 2 3 4 1, 2.

  • Page 107: D Available Parameters

    Appendix D Available Parameters Available parameters vary with the output board of the K3NX and are indicated as “YES” in the following table. Setting Mode Output Board Menu Parameter C1/C2 L4/L5/ FLK1/ FLK4/ L6/L9/ output /C5/T1 FLK2/ FLK5/ L3/L7/ FLK3...
  • Page 108 Appendix D Available Parameters Protect Mode Output Board Menu Parameter C1/C2 L4/L5/ FLK1/ FLK4/ L6/L7/ output /C5/T1 FLK2/ FLK5/ L8/L9 FLK3 FLK6 prot All key protect Protect menu sUset Set value change prohibit =ero Forced-zero prohibit mm.rst Maximum/Minimum value clear prohibit secr Security AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr...

  • Page 109: E Setting Examples

    Appendix E Setting Examples With the K3NX-ADjA, the input of 4 to 20 mA can be converted and displayed within a range of 0 to 100.00 as shown below. Power ON RUN mode (See note 1) Setup menu Option menu...
  • Page 110 Appendix E Setting Examples With the K3NX-VDjA-C2, the input of 1 to 5 V can be converted and displayed within a range of 0 to 100.00 and can be output as follows according to the following procedure: HH output for a display value larger than 100.00 H output for a display value larger than 80.00...
  • Page 111 Setting Examples With the K3NX-AAjC-L4, the input of 0 to 10 A can be converted and displayed within a range of 0.000 to 10.000 and can be output in the range of 4 to 20 mA in proportion to the change in display value according to the following conditions.

  • Page 112: Index

    Index field calibration, 8 AD converter error, 92 field calibration, 81 All Key Protect, setting, 58 flashing display, 92 average processing, description, 3 forced–zero function, description, 2 average processing, settings, 41 forced–zero function, operation, 68 Forced–zero Prohibit, setting, 61 Forced–zero setting, protecting, 61 forced–zero signal, 73 Base Unit, 11 available models, 101...
  • Page 113 Index memory error, 92 menu overview Protect mode, 57 reference signals, 82 Setting mode, 22 relay output boards, 16 menues remote/local programming, setting, 54 option menu, 41 protect menu, 58 remote/local selection, description, 3 scaling menu, 27 RESET input, wiring, 13 setting value menu, 23 setup menu, 32 RESET input, 73...
  • Page 114 Index troubleshooting, 91 teaching, description, 2 teaching function, operation, 76 terminal arrangement unit number, setting, 36 Base Unit, 11 wiring, 12 BCD Output Boards, 86 output board, 14 word length, setting, 38 terminal arrangement, 6 ZERO input, wiring, 13 timing charts, for BCD Output Boards, 89 ZERO input, 73 transistor output boards, 17 zone output, 49...

  • Page 115: Revision History

    Revision History A manual revision code appears as a suffix to the catalog number on the front cover of the manual. Cat. No. N090-E1-1A Revision code The following table outlines the changes made to the manual during each revision. Page numbers refer to the previous version.
