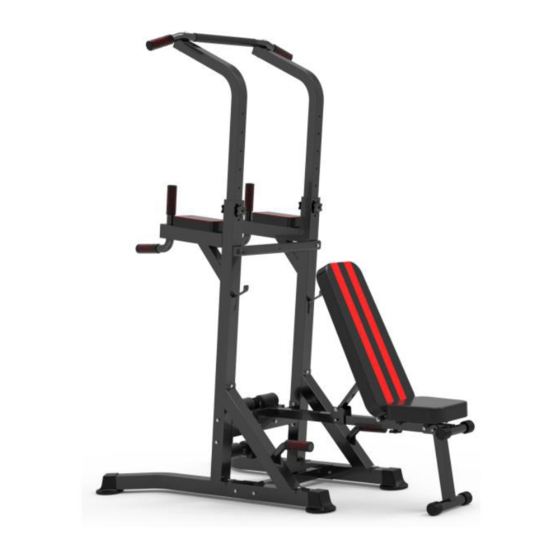

- Page 1 INade057V01_UK A91-092 POWER TOWER MANUAL READ AND SAVE THIS INSTRUCTION FOR FUTURE USE ASSEMBLY INSTRUCTION...
- Page 2 Installation Open package to confirm product components Step 1： Accessaries Foot tube Main Frame（including tube Upper Tube（2pcs） （2pcs） cover） Bottom tube cover（4pcs） Supporting Tube Elbow pad one pair H Base Connection I Hand Gloves（8pcs） Gym Bar（including hand gloves） tube J Main Frame Connection Tube R Back Set Tube K ScrewM8x65mm(22pcs)
- Page 3 Assembly 4 foot covers Step 2 ： Accessaries： A Foot Tube 2 pcs Foot Cover（4pcs） Use 4 foot covers to insert into the foot tube Step 3：Assembly the bottom connection tube Accessaries： H Bottom Connection Tube K Screw M8x65mm(4pcs) Screw M8x65...
- Page 4 Step 4：Assembly Main Frame Accessaries： Main Frame Supporting Tube I Hand Gloves（6pcs） K Screw M8x65mm(12pcs) Insert the hand gloves（Note：Use a little water will be more easy） Screw M8x65mm Note：Don't lock up yet Screw M8x65mm Note：Don't lock up yet...
- Page 5 Step 5：Assembly Main Frame Connection Tube with bench connection tube K Screw M8x65mm(4pcs) J Main Frame Connection Screw M8x65mm (Outside use bigger gasket) Accessaries： Sit up bench Tube K Screw M8x65mm(2 pcs)
- Page 6 Elbow pad Step 6：Assembly Elbow pad one pair Accessaries： Q Screw M8x55（4pcs）...
- Page 7 Step 7：Assembly upper tube and gym bar Accessaries： N Screw M8x75（2pcs） Upper Tube（2pcs） Gym Bar(with hand gloves) Screw M8x75...
- Page 8 Adjust suitable angles and heights Step 8： Accessaries： 8x60（2pcs） P Screw Nut M8（2pcs） Screw Use Screw 8x60 Fix Tottally 7 adjustment Installation complete without bench （See pic）...
- Page 9 Step 9：Assembly sit up bench（Using） Plastic Gasket X Screw M10x20mm(2pcs) Sit Up bench（Back set） Uuse screw M10X20 add gasket in the middle...
- Page 10 Step 10：Assembly Foot tube W Bolt 8x66(1pcs) foot tube Screw M8x65mm+big gasket dia30(2pcs) Q Screw M8x55（1pcs） Use Screw M8x65mm（add 2 big gasket） Bolt adjust the sit up bench foldable or not...
-
Page 11: Folding Storage
Folding storage Step 11 ： ： Accessaries： W Bolt 8x66(1pcs) Take out the Bolt and fold it Use Screw fix the sit up bench...
