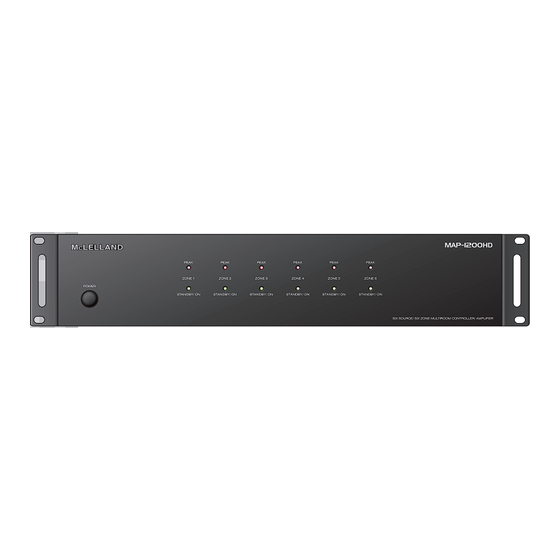

- Page 1 MAP 1200HD INSTRUCTION BOOK MANSION INDUSTRY CO.,LTD...
- Page 2 www.mclellandmusic.com IMPORTANT SAFETY INSTR UCTIONS INSTRUCTIONS PER TAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS. Introduction The MAP-1200HD is a functional, easy-to-install, highly compatible, expandable, and Read Instructions used-friendly audio distribution system. After easy setting steps, it provides up to 25W @ 8 The Owner's Manual should be read and understood before operation of your unit.
- Page 3 www.mclellandmusic.com 12. MUTE IN/ SYSTEM CONTROL OUT: This input can temporarily mutes the system by connecting this unit to a relay closure switch on home automation system or phone system etc. When switch is on, it will short-circuit the input and mute the unit. 13.
- Page 4 www.mclellandmusic.com MAP-1200HD SELECT MUTE AMP-kP1 Control Keypad AMP-kP2 Touch Sensor Control Keypad Keypad Panel Fnd Functions 1.Power:Turns the zone ON an OFF. Can be programmed with IR codes or sequences. 2.Select: This button can be use for selected the system function of each zone,and also can be use as for panic call button (hold 3 sec) 3.Remote(IR Sensor):The keypad has build-in receiver for complete wireless control, also can be receives IR from hand-held remotes to control both source components and...
- Page 5 www.mclellandmusic.com Feature: High efficiency more than 85% (class D) amplification ● Stereo/Bridge mono output ● Stereo/Bridge mode adjustable. ● IR remote controller for source select/volume/treble/bass ● Built-in IR receiver in the keypad ● RS-232 port allows 2-way communication with the Home Automation ●...
