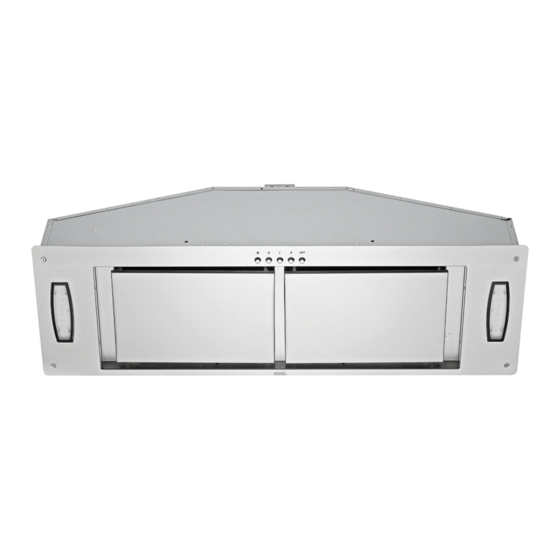

KOBE Range Hoods
Premium Series
IN28 SQP-XX Series
Model No.: IN2830SQP-XX (30")
IN2836SQP-XX (36")
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN28 SQP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KOBE IN28 SQP Series

  • Page 1 KOBE Range Hoods Premium Series IN28 SQP-XX Series Model No.: IN2830SQP-XX (30”) IN2836SQP-XX (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
  • Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to customer.service@koberangehoods.com. NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
  • Page 3: Table Of Contents

    [ENGLISH] - READ AND SAVE THESE INSTRUCTIONS – CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................ 1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 5 OPERATING INSTRUCTIONS ..................9 MAINTENANCE ......................10 SPECIFICATIONS ......................11 MEASUREMENTS & DIAGRAMS ................. 12 PARTS LIST ........................14 CIRCUIT DIAGRAM ......................
  • Page 4: Important Safety Instructions

    KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the hood.
  • Page 5 What to Do In the Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight filling lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
  • Page 6: Components Of Package

    {D} Airflow Efficiency Panel x 1 {E} 6” Round Plastic Collar x 1 {F} Wire Cap x 3 {G} Screw Package M4 x 1/2" (4) • FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR CONTACT KOBE RANGE HOODS AT (626) 775-8880.
  • Page 7 {K} Airflow Efficiency Panel x 2 {L} 6” Round Plastic Collar x 1 {M} Wire Cap x 3 {N} Screw Package M4 x 1/2" (4) • FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR CONTACT KOBE RANGE HOODS AT (626) 775-8880.
  • Page 8: Installation

    INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Height of Counter Top to Wood Frame Bottom (Recommended 26”...
  • Page 9 Figure 1 Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. • Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. • A straight, short vent run will allow the hood to perform more efficiently.
  • Page 10 Figure 4 Wiring to Power Supply SAFETY WARNING RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS DONE QUALIFIED ELECTRICIAN ACCORDANCE WITH ALL APPLICABLE NATIONAL LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
  • Page 11 Figure 7 Hood Installation 19. Slide the hood into the opening where it will be installed. 20. Locate the screw holes (4) on each side of the insert. Adjust the level of the hood casing support according to the thickness of the base (1/2 thickness plywood recommended –...
  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function • Press button to choose the speed o Q = QuietMode™ speed o L = Low speed o H = High speed •...
  • Page 13: Maintenance

    MAINTENANCE For optimal appearance, clean the range hood surface and filters regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. ***Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2.
  • Page 14: Specifications

    SPECIFICATIONS IN2830SQP-XX / 30” MODEL / SIZE IN2836SQP-XX / 36” COLOR 18-gauge commercial grade stainless steel CONSUMPTION / AMPERE 300W / 2.5A VOLTAGE 120V 60Hz NUMBER OF BLOWER FAN TYPE: CENTRIFUGAL Single Horizontal Squirrel Cage Top 6” Round EXHAUST CONTROL Mechanical Push Button LIGHTS LED Lights (3W) x 2...
  • Page 15: Measurements & Diagrams

    MEASUREMENTS & DIAGRAMS ***All ( ) are in millimeter. ***All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO.: IN2830SQP-XX (30”) Side View Bottom View Front View Stainless Steel Liner (Sold Separately) Model No. INL36211A...
  • Page 16 ***All ( ) are in millimeter. ***All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO.: IN2836SQP-XX (36”) Side View Bottom View Front View...
  • Page 17: Parts List

    PARTS LIST MODEL NO.: IN2830SQP-XX (30”) IN2836SQP-XX (36”) DESCRIPTION MODEL / SIZE PART NO. 6” Round Plastic Exhaust L1-0505-0007 Wiring Box L1-0231-2730 Blower System L1-0302-0120-802RO Electronic Component Box L1-0524-0003 LED Light Driver L1-0402-0303 Capacitor x 1pcs L1-0401-0120-24 Control Switch L1-0405-0301 LED Lights (3W) x 2 L1-0403-0601 IN2830SQP-XX...
  • Page 18 MODEL NO.: IN2830SQP-XX (30”) IN2836SQP-XX (36”)
  • Page 19: Circuit Diagram

    CIRCUIT DIAGRAM MODEL NO.: IN2830SQP-XX (30”) IN2836SQP-XX (36”)
  • Page 20: Troubleshooting

    TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s power is ON. Use a installation, both motors voltage meter to check the power and lights are supply. not working. The wire connection is not secure.
  • Page 21: Warranty

    TWO-YEAR LIMITED LABOR WARRANTY ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion.
  • Page 22 THIS WARRANTY WILL BE VOIDED BY: 1. Improper installation and failure to follow installation instructions. 2. Any repair, alteration, modification not authorized by KOBE. 3. Duct alteration, modification and connection. 4. Incorrect electric current, voltage or wiring. 5. Improper usage of the product such as commercial, outdoor or other use besides residential indoor usage.
  • Page 23: Warranty Information Form

    3. Serial No. : ______________________________ For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880...
  • Page 24 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
