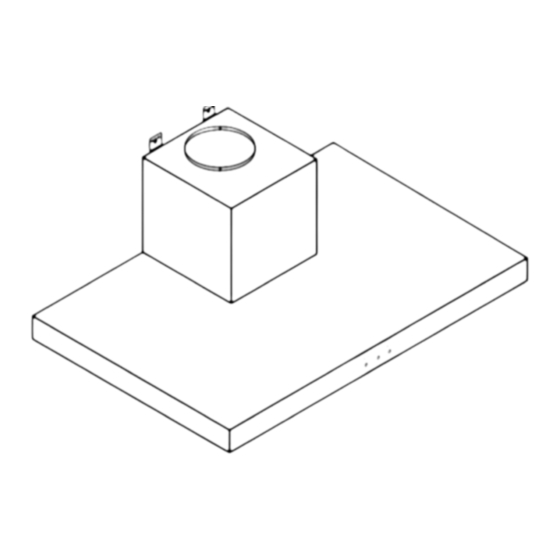

- Page 1 KOBE Range Hoods Premium Series Milo CH27 Series Model No.: Under Cabinet: CH2730SQ3-XX (30”) CH2736SQ3-XX (36”) Wall Mount: CH2730SQ3-WM-XX (30”) CH2736SQ3-WM-XX (36”) CH2748SQ3-WM-XX (48”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to customer.service@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED...
- Page 3 [ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................. 1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 5 OPERATING INSTRUCTIONS..................11 MAINTENANCE ......................13 SPECIFICATIONS ......................14 MEASUREMENTS & DIAGRAMS................. 15 PARTS LIST ........................17 CIRCUIT DIAGRAM ...................... 21 TROUBLE SHOOTING ....................
- Page 4 KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
- Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
- Page 6 {F} Wire Cap x 3 {G} Screws Package {H} Stainless Steel Filter x 1 Wire caps (3) *Pre-Installed M4 x 1-1/2” (4) *Pre-Installed • FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR CONTACT KOBE RANGE HOODS AT (626) 775-8880.
- Page 7 {I} Wire Cap x 3 {J} Screws Package {K} Stainless Steel Filter x 1 3/16 “x 3/8” (8PCS) *Pre-Installed Wire Caps (3) M4 x 1-1/2” (4) *Pre-Installed • FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR CONTACT KOBE RANGE HOODS AT (626) 775-8880.
- Page 8 INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculation in inches). - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to...
- Page 9 SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: DO NOT USE AN ELECTRIC SCREWDRIVER. USE HAND TOOLS ONLY. DO NOT OVER TIGHTEN SCREWS AS THIS MAY CAUSE DAMAGE TO THE HOOD. Installation Contents UNDER CABINET INSTALLATION WALL MOUNT INSTALLATION...
- Page 10 UNDER CABINET INSTALLATION Applicable Model: CH2730SQ3-XX (30”) / CH2736SQ3-XX (36”) Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. (Figure 1) A straight, short vent run will allow the hood to perform more efficiently.
- Page 11 Figure 5 Ductwork Installation 5. Use steel pipe to connect the 6” round plastic collar {F} on the hood to the ductwork above. Use duct tape to make all joints secure and air tight. Refer to Figure 6. Wiring to Power Supply THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
- Page 12 WALL MOUNT INSTALLATION Applicable Model: CH2730SQ3-WM-XX (30”) / CH2736SQ3-WM-XX (36”) / CH2748SQ3-WM-XX (48”) Figure 8 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside.
- Page 13 Figure 12 Wiring to Power Supply THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
- Page 14 OPERATING INSTRUCTIONS Control Panel Light Indicator QuietMode™ speed Low speed High speed Delay Shut-Off On Mode Standby Auto Mode Auto Mode • The hood has advanced built-in temperature sensors. When the sensor detects by ~7°F degrees** of temperature differential between the hood and the surrounding environment, the fan and lights on the hood will turn on automatically.
- Page 15 *Please note the sensor will override this automatically when the sensor detects the 7°F-degree** temperature differential; and the hood and lights will turn on again. Power Button • To manually turn on the hood, press the power button once. • To Manually Activate the delay shut-off: When the ON light is green, you can manually activate the delay shut-off by pressing the power button and you will see the D + ON light turn on to indicate delay shut-off is activated.
- Page 16 MAINTENANCE For optimal performance, clean the range hood surface and filters regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. ***Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2.
- Page 17 SPECIFICATIONS MODEL / SIZE Under Cabinet Application Wall Mount Application CH2730SQ3-XX (30”) CH2730SQ3-WM-XX (30”) CH2736SQ3-XX (36”) CH2736SQ3-WM-XX (36”) CH2748SQ3-WM-XX (48”) COLOR 18-Gauge Commercial Grade Stainless Steel CONSUMPTION / AMPERE 420W / 3.5A Power Rating 120V / 60Hz NUMBER OF BLOWER DESIGN Seamless / Satin Finish BLOWER TYPE...
- Page 18 MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. - FOR UNDER THE CABINET – CH2730SQ3-XX (30”) / CH2736SQ3-XX (36”) MODEL NO.: - FOR WALL MOUNT – CH2730SQ3-WM-XX (30”) / CH2736SQ3-WM-XX (36”) / CH2748SQ3-WM-XX (48”) MODEL NO.:...
- Page 19 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket...
- Page 20 PARTS LIST CH2730SQ3-XX (30”) MODEL NO.: CH2736SQ3-XX (36”) DESCRIPTION MODEL / SIZE PART NO. 6” Round Plastic Exhaust L1-0505-0007 Blower System L1-0302-0120-590RO Stainless Steel Filter B101-27300-09-M Control Unit L1-0404-3001-A Capacitor x 1PCS L1-0401-0120-24 LED Light Driver L1-0402-D001 Temperature Sensor L1-0404-3001-C Processor Board L1-0404-3001-B CH2730SQ3-XX...
- Page 21 CH2730SQ3-XX (30”) MODEL NO.: CH2736SQ3-XX (36”)
- Page 22 CH2730SQ3-WM-XX (30”) MODEL NO.: CH2736SQ3-WM-XX (36”) CH2748SQ3-WM-XX (48”) DESCRIPTION MODEL / SIZE PART NO. Duct Cover-Mounting Bracket L1-0203-0390 Duct Cover CH02DC-1 12-27900 6” Round Plastic Exhaust L1-0505-0007 Blower System L1-0302-0120-590RO Stainless Steel Filter B101-27300-09-M Control Unit L1-0404-3001-A Capacitor x 1PCS L1-0401-0120-24 LED Light Driver L1-0402-D001...
- Page 23 CH2730SQ3-WM-XX (30”) MODEL NO.: CH2736SQ3-WM-XX (36”) CH2748SQ3-WM-XX (48”)
- Page 24 CIRCUIT DIAGRAM CH2730SQ3-XX and CH2730SQ3-WM-XX (30”) MODEL NO.: CH2736SQ3-XX and CH2736SQ3-WM-XX (36”) CH2748SQ3-WM-XX (48”)
- Page 25 TROUBLE SHOOTING Issue Possible Cause Solution After installation, The power is not on. Make sure the circuit breaker and the unit’s power is ON. Use a voltage both motors and lights are not meter to check the power supply. working. The wire connection is not secure.
- Page 26 TWO-YEAR LIMITED LABOR WARRANTY ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion.
- Page 27 THIS WARRANTY WILL BE VOIDED BY: 1. Improper installation and failure to follow installation instructions. 2. Any repair, alteration, modification not authorized by KOBE. 3. Duct alteration, medication and connection. 4. Incorrect electric current, voltage or wiring. 5. Improper usage of the product such as commercial, outdoor or other usage other than residential indoor usage.
- Page 28 3. Serial No. : ______________________________ For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880...
- Page 29 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
