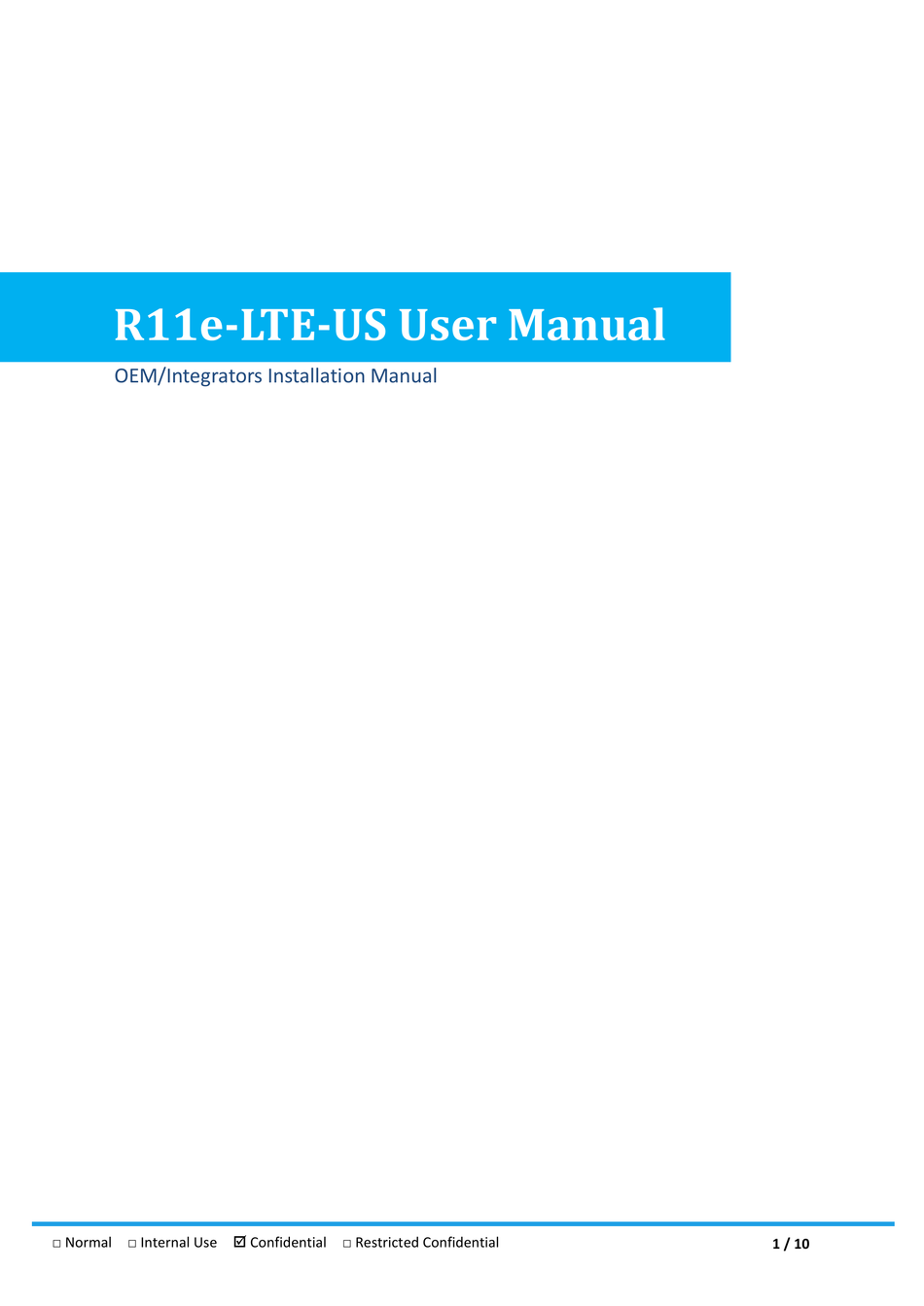

- Page 1 R11e-LTE-US User Manual OEM/Integrators Installation Manual □ Normal □ Internal Use Confidential □ Restricted Confidential 1 / 10...
- Page 2 R11e-LTE-US User manual Important Notice to OEM integrators 1. This module is limited to OEM installation ONLY. 2. This module is limited to installation in mobile or fixed applications, according to Part 2.1091(b). 3. The separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and different antenna configurations...
- Page 3 R11e-LTE-US User manual Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 R11e-LTE-US User manual Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
-
Page 5: Table Of Contents
R11e-LTE-US User manual Contents Contents .......................... 5 Introduction ......................6 1.1. Features ........................ 6 Electrical Specification ..................... 6 2.1. Power supply ......................6 RF Specifications ..................... 7 3.1. RF Specification ....................7 3.2.1 Band support ....................7 3.2.2 Bandwidth support..................7 3.2.3 RF Transmit Specification ................ -
Page 6: Introduction
R11e-LTE-US User manual 1. Introduction The R11e-LTE-US mini-PCIe module is a Cat. 4 LTE modem which integrates an application CPU subsystem, peripheral interfaces and functions designed to address the power/ performance/cost requirements of IoT and M2M applications. The CPU is based on Qualcomm’s MDM architecture which offers OFDMA-related software based signal processing... -
Page 7: Rf Specifications
R11e-LTE-US User manual 3. RF Specifications 3.1. RF Specification 3.2.1 Band support Table 1. Band support Band Uplink (MHz) Downlink (MHz) LTE Band 2 1,850–1,910 1,930–1,990 LTE Band 4 1,710–1,755 2,110–2,155 LTE Band 5 824–849 869–894 LTE Band 12 699–716 729–746... -
Page 8: Rf Receiver Specification
4. Mechanical and Environmental Certifications 4.1. PCBA Form Factor R11e-LTE-US module has the dimensions as below: 50.85 mm (typ.) × 29.9 mm (typ.) × 3.3 mm (typ.), tolerance: ± 0.15 mm □ Normal □ Internal Use Confidential □ Restricted Confidential... - Page 9 R11e-LTE-US User manual Top view Right view Figure 1. PCBA dimension Figure 2. PCB dimension(Bottom view) □ Normal □ Internal Use Confidential □ Restricted Confidential 9 / 10...
-
Page 10: Thermal Considerations
R11e-LTE-US User manual 4.2. Thermal considerations Ambient operating temperature: –25 °C to +75 °C (–20 °C to +60 °C fully compliant with 3GPP; –25 °C to +75 °C functional work) Ambient storage temperature: –40 °C to +85 °C The case temperature of module shielding cover must be < 85 °C when integrated to prevent damage.
