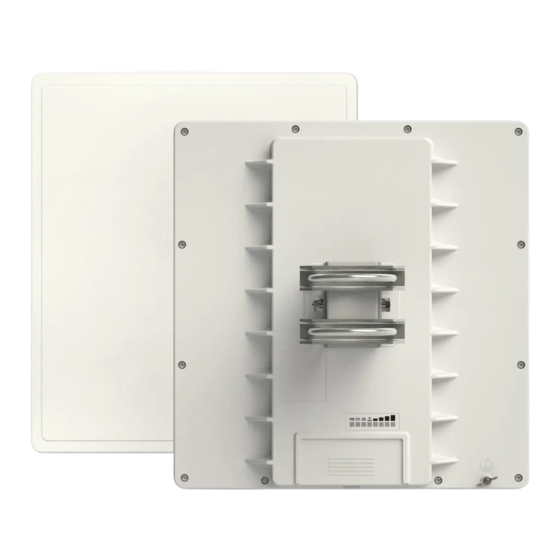

MikroTik RB911G-5HPacD-QRT (QRT 5 ac) Quick Manual

EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v7.11.2 or the latest version to ensure compliance with local authority regulations!
It is the end users' responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be professionally installed.
This is Wireless Network Device. You can find the product model name on the case label (ID).
Please visit the user manual page on
Technical specifications, brochures, and more info about products at
The most important technical specifications for this product can be found on the last page of this Quick Guide.
Configuration manual for software in your language with additional information can be found
MikroTik devices are for professional use. If you do not have qualifications please seek a
Depending on the antenna used, you must set its gain and set the installation setting to '
authorities. This is done in the Quickset menu.
First steps:
Make sure your ISP is accepting hardware changes and will automatically assign an IP address;
For OmniTIK models, Connect your LAN cable to the device Ethernet2 port. Connect the device to the power source with the provided adapter;
Connect ISP cable to the Ethernet1 port;
Set LAN computer IP configuration to automatic (DHCP);
The Default IP address of the unit is 192.168.88.1, open this address in your web browser to start the configuration. The username is admin and there is no
password;
Choose your country, apply country regulation settings and set up your password on the screen that loads;
Update RouterOS software to the latest version, make sure that the device has an internet connection;
For other models, or if you have trouble accessing the IP address, download the Winbox from our webpage and use it to connect through the MAC address;
For a manual update of the device, visit the products page at
the "Support&Downloads" menu;
Upload downloaded packages to the
By upgrading your RouterOS software to the latest version, you can ensure optimal performance, stability, and security updates;
In the " QuickSet " menu set up the following: Choose your country, to apply country regulation settings;
Set up your wireless network password in the left field;
Set up your router password in the bottom field.
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be mounted outdoors on a pole. Please read the mounting instructions carefully before beginning installation. Failure to use the
correc t hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and damage to the system
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
This is a Class A product. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate
measures.
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
Exposure to Radio Frequency Radiation:
environment. This MikroTik device should be installed and operated no closer than 30 centimeters from your body, occupational user, or the general public.
Manufacturer: Mikrotikls SIA, Unijas 2, Riga, Latvia, LV1039.
Note: For some models, check the user and wireless passwords on the sticker.
BG - Български. Бързо ръководство:
Това устройство трябва да бъде надстроено до RouterOS v7.11.2 или най-новата версия, за да се гарантира спазването на местните
регулаторни разпоредби.
Крайните потребители са отговорни за спазването на местните разпоредби, включително работата в рамките на законни честотни канали,
извеждане на продукция изисквания за захранване, окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства
на MikroTik трябва да бъдат професионално инсталиран.
Това е устройство за безжична мрежа. Можете да намерите името на модела на продукта на етикета на регистъра (ID).
Моля, посетете страницата с ръководството за потребителя на
Или сканирайте QR кода с мобилния си телефон.
Технически спецификации, брошури и повече информация за продуктите
Най-важните технически спецификации за този продукт могат да бъдат намерени на последната страница на това Кратко ръководство.
Ръководство за конфигуриране на софтуер на вашия език с допълнителна информация можете да намерите на
Устройствата MikroTik са за професионална употреба. Ако нямате квалификация, моля, потърсете
https://mt.lv/um for the full up-to-date user manual. Or scan the QR code with your mobile phone.
https://mikrotik.com/products
"Winbox " "Files" menu and reboot the device;
This MikroTik equipment complies with the European Union radiation exposure limits set forth for an uncontrolled
https://mt.lv/um-bg
https://mikrotik.com/products
at https://mt.lv/help
consultant https://mikrotik.com/consultants
Outdoor
to find your product. The required packages are accessible under
за пълното актуализирано ръководство за употреба.
на https://mikrotik.com/products
'. This is to ensure that EIRP meets the limit set by the local
https://mt.lv/help-bg
консултант https://mikrotik.com/consultants
.
