MikroTik R11e Series User Manual

R11e series

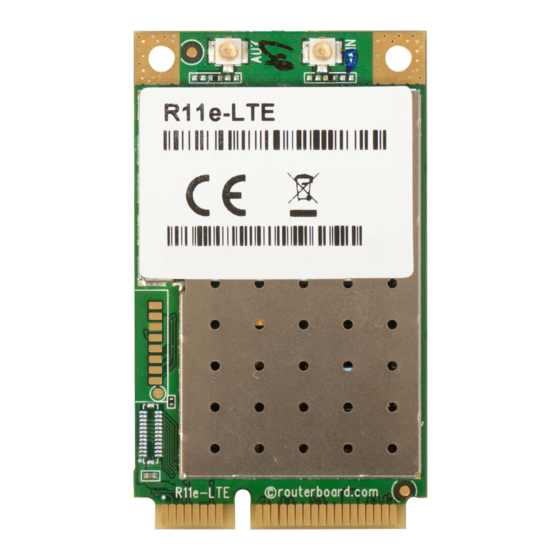

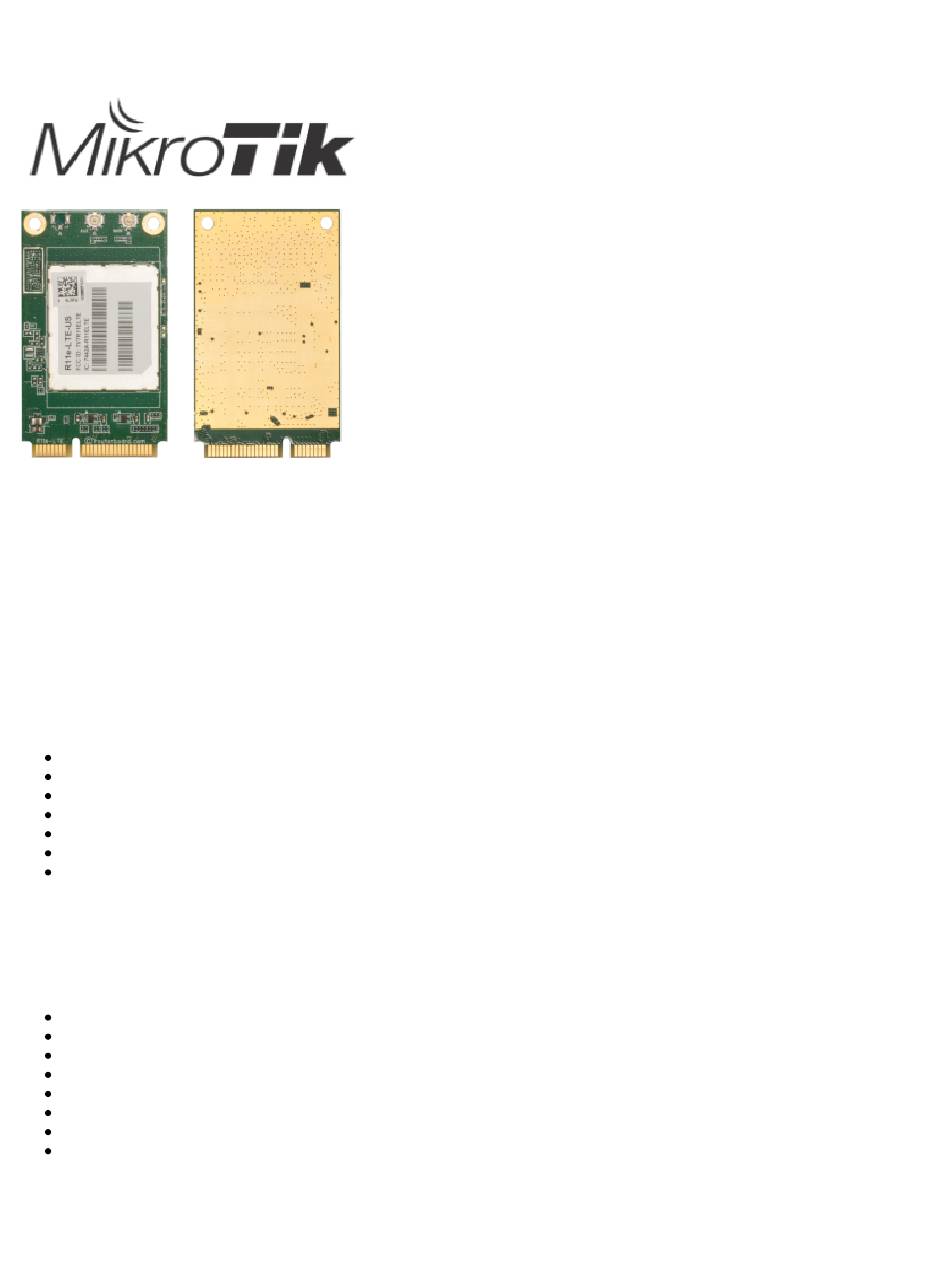

R11e-LTE-US is a Cat-4 modem. It can be integrated into any MikroTik product that has a miniPCI-e slot.
R11e-LTE-US
R11e-LTE
R11e-4G
R11e-LTE6
Specifications
Interface – Mini-PCIe;
Temperature Operating -30°C .. +70°C
LTE Channel Bandwidth: 1.4/3/5/10/15/20 MHz
LTE Category: 4 (150Mbps Downlink, 50Mbps Uplink)
3G Category: R7 (Cat14 - 21.1Mbps Downlink)
LTE (FDD) bands: 2/4/5/12 (1900/1700/850/700)
3G bands: 2/5 (1900/850)
Installing the module in your device
R11e-TE-US for professional use. Each of the cards comes in ESD protective packaging. When handling electrical equipment please observe the following
safety precautions:
Use a wrist grounding strap when unpacking and working with electrical components to avoid electrical discharge (ESD) damage;
After unpacking please place the card on the anti-static mat;
When installing make sure there are no objects that can damage or touch the PCB plate;
The card can be installed in your desired device using the factory provided screw holes in a PCB plate;
Locate miniPCIe slot on your device;
Unscrew two factory attached screws;
Optionally you can use the thermal pad by placing it under the card, the thermal pad is not included in the package;
Install the module to the miniPCIe slot and secure it with previously removed screws. Tightening torque 0,3 Nm;
