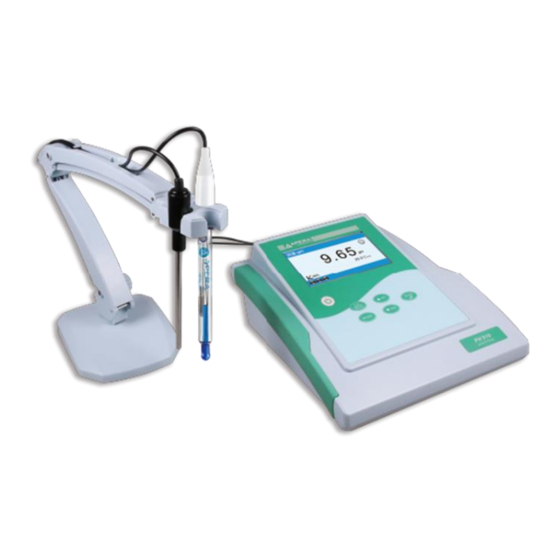

- Page 1 PH910 Benchtop pH Meter Instruction Manual PH910 Benchtop pH Meter EC910 Benchtop Cond. Meter PC910 Benchtop pH/Cond. Meter APERA INSTRUMENTS (Europe) GmbH www.aperainst.de - 1 -...
-
Page 2: Table Of Contents
Table of Contents Introduction .......................... - 4 - Measuring parameters ....................- 4 - Basic features ....................... - 4 - pH measurement features .................... - 4 - Conductivity measurement features ................- 4 - Configuration ........................- 5 - Specifications ........................- 6 - Technical parameters .................... - Page 3 Conductivity probe maintenance ................. - 26 - Parameter setting ......................- 27 - Main menu and submenu ................... - 27 - Operation ........................- 27 - Content of parameter setting ..................- 28 - USB communication ......................- 29 - Install Software ......................
-
Page 4: Introduction
Introduction Thank you for purchasing our PH910 Benchtop pH Meter. Before using this meter, please read this manual carefully in order to help use and maintain it correctly. On the basis of improving instrument of performance constantly, we reserve the right of changing the content of this manual and accessories in case of not notifying in advance. -
Page 5: Configuration
Configuration Description Quantity PH910 EC910 PC910 PH910 pH meter √ EC910 conductivity meter √ PC910 pH/conductivity meter √ 602 flexible electrode holder √ √ √ LabSen211 glass pH combination electrode √ √ MP500 temperature probe √ √ 2301T-F conductivity electrode (ATC, K=1.0) √... -
Page 6: Specifications
3.1 Technical parameters Technical Parameters Model Measuring Range (0.00 ~ 14.00) pH Resolution 0.1/0.01 pH Accuracy ±0.01 pH ±1 digit Temperature PH910 (0 ~ 100) °C (Auto. or Manual) Compensation Range PC910 Calibration point 1~3 points Measuring Range ±2000mV Resolution Accuracy ±0.1% FS ±1 digit... -
Page 7: Instrument Description
Instrument Description 4.1 LCD display ① pH measurement pH measurement interface ② pH measuring value ③ Temperature measuring value ④ pH electrode slope ⑤ Calibration solution indication icon ⑥ Used data storage ⑦ Temperature compensation icon, MTC-manual temperature compensation ATC-auto. temperature compensation ⑧... -
Page 8: Keypad Functions
TDS measurement interface Salinity measurement interface Salinity factor 0.5 ①—TDS measurement ②—TDS factor 0.71 pH/Cond. measurement interface mV measurement interface 4.2 Keypad functions Diagram-1 Keypad operation mode: — Short press Press the <2s, buzzer makes a beep; — Long press Press key >2s, buzzer makes a beep when pressing the button, another beep will ring after holding the key for 2 seconds. -
Page 9: Meter Sockets
Chart -1 Keypad operations and functions Keypad Operations Functions Short press ⚫ Power on/off Press key to select measurement mode: ⚫ PH910: pH→mV Short press ⚫ EC910: Cond→TDS→Salt ⚫ PC910: pH→mV→Cond→TDS→Salt→pH/Cond ⚫ Press key to enter temperature adjustment mode (for manual Long press temperature compensation) ⚫... -
Page 10: Display Mode
Model Meter sockets ⑦ PH910 ① ② ③ ⑥ ⑦ EC910 ④ ⑤ ⑥ ⑦ PC910 ① ② ③ ④ ⑤ ⑥ 4.4 Display mode 2020-01-18 4.4.1 Reading stable display mode 16:26:42 When the measuring value is stable, smiley icon appears and stays on LCD screen, see Diagram –... - Page 11 actual store data is 200 groups, but storage number will be less than 200. If press key again when storage value is full, icon will flash, see Diagram –5(c) to indicate store memory is already full and need to be deleted for new store value. (b) Auto.
-
Page 12: Manually Adjust Temperature
4.6 Manually adjust temperature In MTC mode, long press key to enter temperature regulation mode. Press to adjust temperature value. Press and hold the key for fast adjustment. Press key to confirm and return to measurement mode. pH measurement pH Electrode Information The meter comes with a LabSen 211 pH combination electrode and MP500 temperature probe, which enables the automatic temperature compensation. - Page 13 5.1.3 Technical Specifications of the MP500 Temperature Probe Temperature Range 14 to 230 ˚F (-10 to 110 °C) Body Material Stainless Steel Sensor 30 KΩ thermistor Probe Dimension (Φ5×145) mm Connector Connector and cable length BNC/1m 5.1.4 Use the Electrode Insert the blue BNC connector of the electrode to the BNC socket of your pH meter while twisting clockwise until it`s locked, plug the RCA connector into the “TEMP”...
-
Page 14: Ph Calibration Related Information
For tough contaminants, soak the electrode in Apera cleaning solution (AI1166) for 30 minutes. Then use a soft brush to remove the contaminants. Afterwards, soak the electrode in 3M KCL solution (SKU: AI1107) for at least 1 hour. Rinse it off, then re-calibrate it before using again. The connector of the electrode should be kept clean and dry. - Page 15 Chart -3 Three-point calibration mode USA standard NIST standard CH standard Applicable range One-point Accuracy pH 7.00 pH 6.86 pH 6.86 calibration ≤± 0.1pH pH 7.00 and pH 6.86 and pH 6.86 and < pH 7.00 pH 4.00/1.68 pH 4.01/1.68 pH 4.00/1.68 Two-point calibration...
-
Page 16: Ph Meter Calibration (Take Three-Point Calibration As An Example)
5.3 pH meter calibration (take three-point calibration as an example) Long press key to enter calibration mode, as shown in left graph. Rinse pH probe in purified water, remove excess water by shaking or filter paper. Press key to confirm. Submerge probe in pH7.00 buffer solution. -
Page 17: Customized Calibration (Take 2.00Ph And 7.30Ph Calibration Solution As An Example)
Submerge probe in pH10.01 buffer solution. Stir the solution briefly and allow it to stay in the buffer solution until appears and stays. Press key to finish calibration. Calibration completed, instrument goes back measurement mode. 5.4 Customized calibration (take 2.00pH and 7.30pH calibration solution as an example) 1. -
Page 18: Self-Diagnosis Information
5. Submerge probe in pH7.30 buffer solution. Stir the solution briefly and allow it to stay in the buffer solution until appears and stays. Press key to adjust measuring value to 7.30pH. Press key to finish calibration. 6.Calibration completed, instrument goes back to measurement mode. -
Page 19: Sample Measurement
Chart -4 Self-diagnostic information of pH measurement mode Self-diagnostic Description Check up information 1.Check if the pH buffer solution is correct 2. Check if the connection between meter Wrong pH buffer solution or exceed buffer error the recognition range of the meters and probe is good 3. -
Page 20: Mv Measurement
5.6.2 pH isothermal measurement principle The closer the temperature of the sample solution to the calibration solution, the more accurate the measurements will be. Please be aware of this principle. 5.6.3 Restore to factory default setting Instrument has a factory default setting function, please refer to parameter setting clause 1.4 (see Diagram-8). -
Page 21: Ion Potential Measurement
6.3 Ion potential measurement Connect ion probe and dip it in sample solution, stir the solution briefly and allow it to stay in the solution until icon appears and stays. The reading obtained is potential value of ion probe. If ion probe is combination type, only need to insert it into “pH/mV”... - Page 22 Note: calibration indication icons are examples of Standard series. 7.2.2 Calibration frequency (a) The meter is calibrated before leaving the factory and can generally be used right out of the box. (b) Normally, performing calibration once a month is recommended. (c) For high accuracy measurement or larger temperature deviation from the reference temperature (25°C), performing calibration once a week is recommended.
-
Page 23: Conductivity Meter Calibration (Take 1413Μs/Cm Calibration As An Example)
7.3 Conductivity meter calibration (take 1413μS/cm calibration as an example) 1. Long press key to enter calibration mode, as shown in left graph. Rinse pH probe in purified water, remove excess water by shaking or filter paper. Press key to confirm. 2. -
Page 24: Self-Diagnosis Information
2. Long press key to enter calibration mode, as shown in left graph. Rinse probe in purified water, remove excess water by shaking or filter paper. Press key to confirm. 3. Submerge probe in 10μS/cm standard solution. Stir the solution briefly and allow it to stay in the buffer solution until appears and stays. -
Page 25: Solution Measurement
Chart -8 Self-diagnostic information of conductivity measurement mode Self-diagnostic Description Check up information 1. Check if conductivity solution is correct. Wrong conductivity calibration 2. Check if the connection between meter solution or exceed recognition buffer error and probe is good range of the meter 3. -
Page 26: Conductivity Probe Maintenance
7.6.2 Relationship among TDS, salinity and conductivity The conversion coefficient between TDS and conductivity is 0.40~1.00 which can be adjusted in parameter setting clause 2.6. Factory default setting is 0.71. The conversion coefficient between salinity and conductivity is 0.5. So the meter only needs to be calibrated in conductivity mode, then switch to TDS and salinity mode. -
Page 27: Parameter Setting
Parameter setting 8.1 Main menu and submenu pH submenu Main menu Conductivity/TDS submenu Setting submenu Diagram-12 8.2 Operation Press key to open main menu→press key to select main menu items→press key to open main menu item (submenu)→press key to select submenu items(parameter)→... -
Page 28: Content Of Parameter Setting
8.3 Content of parameter setting Serial Factory Main menu Parameter setting items Setting content number default pH buffer selection CH-USA-NIST-User Resolution 0.01-0.1 0.01 The last calibration data View Restore factory default No-Yes Cell constant 10-1.0-0.1 CAL solution selection CH-Standard-User Standard The last calibration data View Reference temperature... -
Page 29: Usb Communication
USB communication 9.1 Install Software This instrument uses the PC-Link 910 communication software, and the communication port is USB. Copy the PC-Link 910 program files to the computer from the flash drive, connect the USB communication cable to the PC socket of the meter and the computer’s USB port. The software will be automatically open. -
Page 30: Recommended Ph Electrodes For Specific Applications
Download — Upload the data in the meter’s memory to the computer. Sync. D/T — Sync the time and date of PC to the meter. Export Data — Export the stored data to a Microsoft Excel document for further analysis. Exit —... -
Page 31: Recommended Conductivity Electrodes For Specific Applications
We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at option of APERA INSTRUMENTS (Europe) GmbH, any malfunctioned or damaged product attributable to responsibility of APERA INSTRUMENTS (Europe) GmbH for a period of THREE YEARS (SIX MONTHS for the probe) from the delivery.
