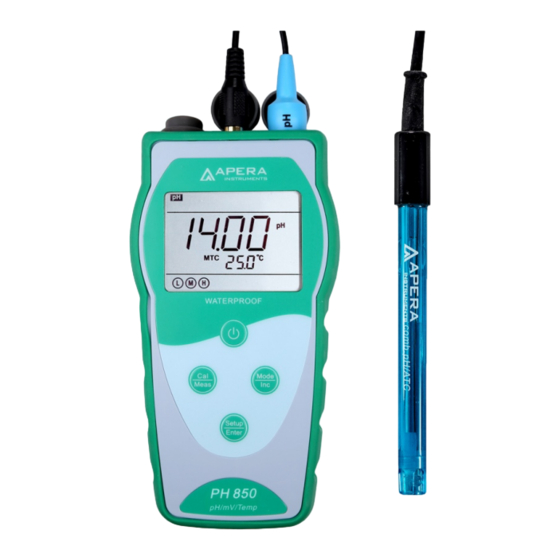

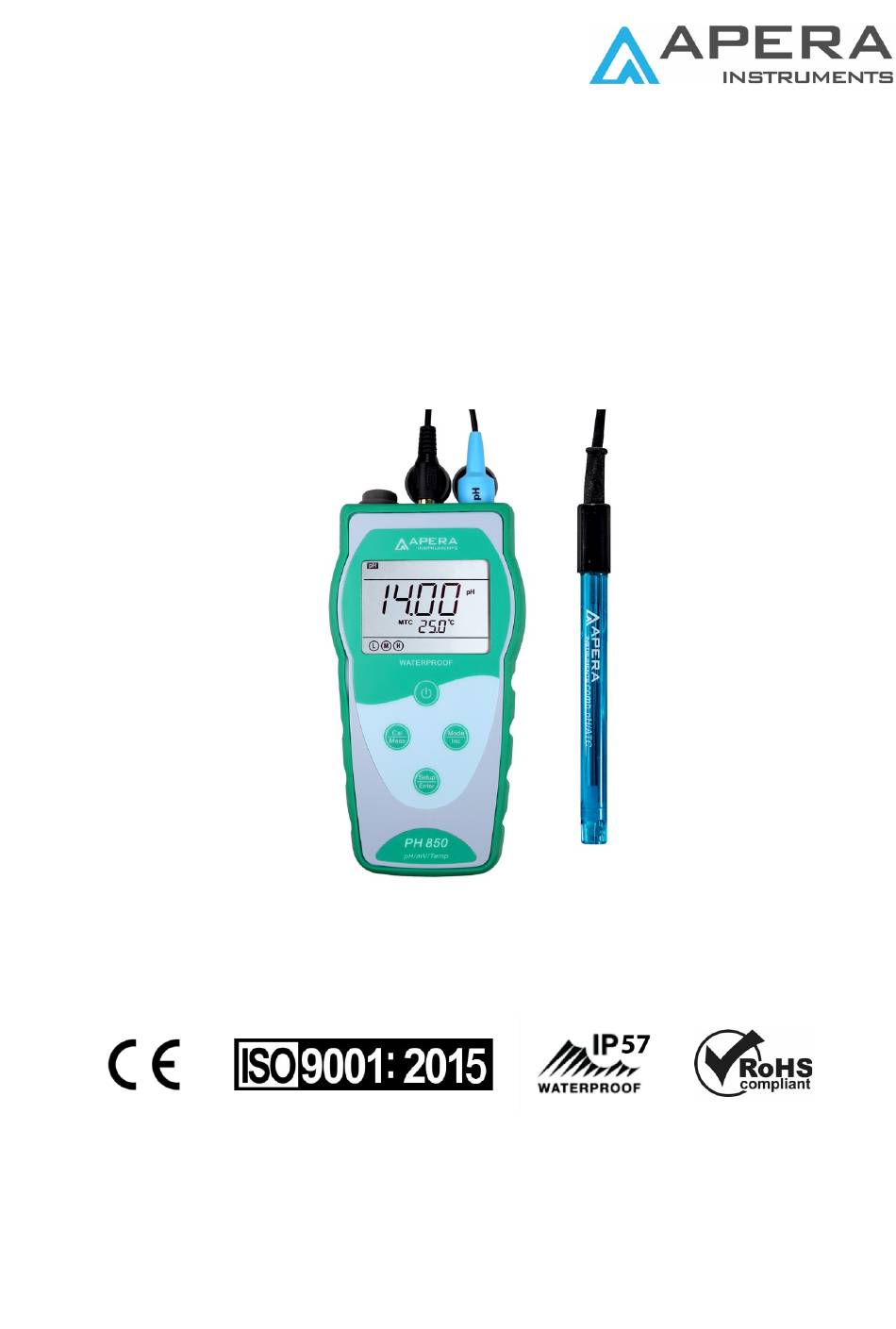

- Page 1 PH850 Portable pH Meter User Manual Version2.0...
-
Page 2: Table Of Contents
Contents Introduction ............................1 1.1 Measurement Parameters ....................... 1 1.2 Basic Features ..........................1 1.3 pH Measurement Features ......................1 Specifications ............................2 2.1 Main Specifications ......................... 2 2.2 Other Specifications: ........................2 Instrument Description ........................2 3.1 LCD Display： ..........................2 3.2 Keypad Functions ........................... -
Page 3: Introduction
Introduction Thank you for purchasing PH850 portable pH meter. This product is a great combination of advanced electronics technology, sensor technology, and software design, made for general water solution applications such as water treatment, environmental monitoring, pools and spas, hydroponics, aquaculture, education, beverage making, cooling tower, etc., especially ideal for field use. -
Page 4: Specifications
Resolution 0.1˚C Accuracy ±0.5˚C ±1 digit 2.2 Other Specifications: Power AAA batteries × 3 (1.5V×3) IP rating IP57 Meter: (86×196×33) mm / 335 g Dimension & Weight Portable case:(330×270×82)mm/1.3kg PH850, EC850 Instrument Description 3.1 LCD Display ： Diagram-2 HOLD ⑬... -
Page 5: Keypad Functions
(1) — Parameter mode icons (2) — Measurement reading (3) — Prompts of special display mode (4) — Units of measurement (5) — Temperature units (°C and °F) (6) — Units of pH and conductivity calibration value (7) — pH and conductivity calibration value, and prompts of special display mode (8) —... -
Page 6: Meter Socket
Long press turn off the meter. Select measurement parameters: → # PH850 pH meter: # In the measurement mode: long press to enter manual temperature compensation mode, then long press or momentary press this key Short/long press to change the temperature value (only one direction)."... -
Page 7: Automatic Lock Display Mode
“High” is set for stability for longer time, “Low” is set for stability for shorter time. User can select suitable stability criteria according to different testing requirement. 3.5 Automatic Lock Display Mode Select On from parameter P4.6 to turn on automatic lock-up display function. When the reading value stabilizes more than 10 seconds, the meter locks the measuring value automatically and displays HOLD icon, see Diagram –... - Page 8 Chart - 3 pH standard buffer solution series pH standard buffer solution series Calibration guide icons USA series (USA) NIST series (NIS) 1.68 pH and 4.00 pH 1.68 pH and 4.01 pH Three-point 7.00 pH 6.86pH calibration 10.01 pH and 12.45 pH 9.18 pH and 12.45 pH 4.2.2.
-
Page 9: Ph Meter Calibration (With An Example Of 3-Point Calibration)
4.3 pH Meter Calibration (with an example of 3-point calibration) 4.3.1. First point calibration (a) Press key to enter the calibration mode, “CAL 1” flashes at the top right of LCD and “7.00 pH” flashes at the bottom right of LCD, indicating using pH 7.00 buffer solution to make the 1 point calibration. -
Page 10: Sample Test
stay on the screen before pressing (c) To exit calibration mode and go back to measurement mode, press key. 4.4 Sample Test 4.4.1. Rinse pH electrode in distilled or deionized water, allow it to dry, and submerge it in tested solution. Stir the solution briefly and allow it to stay in the tested solution until icon stays on LCD and a stable reading is reached, which is the pH value of test solution. -
Page 11: Ph Electrode Maintenance
4.4.3. pH temperature principle Please note that the closer the temperature of the sample solution to the calibration solution, the more accurate the readings. 4.4.4. Factory default setting For factory default setting, please refer to parameter setting P1.4 (Item 7.3). All calibration data is deleted and the meter restores to the theory value (zero electric potential of pH is 7.00, the slope is 100%). -
Page 12: Mv Value Measurement
4% HF (hydrofluoric acid) for 3-5 seconds, and wash it in distilled or deionized water, then submerge it in the soaking solution for 24 hours to renew it. 4.5.5. Clean contaminated glass bulb and junction (please refer to Chart-6) Chart – 6 Clean contaminated glass bulb and junction Contamination Cleaning Solutions General tough contaminants... -
Page 13: Parameter Setting
toothpaste, then wash it in distilled or deionized water, then submerge it in the soaking solution for 6 hours. Parameter Setting 6.1 Main Menu In the measurement mode, press key to enter P1.0, then press to switch to main menu: P1.0→P3.0. - Page 14 6.3 Submenu of pH Parameter Setting (press key to switch) P1.1. – Select pH standard solution (USA-NIST) 1. In measurement mode, press key to enter P1.0 mode, then press to enter P1.1. 2. Press key, USA flashes, press key to select USA→nIS, press to confirm.
-
Page 15: What's In The Kit
2. When Parameter is confirmed, press key to return to the measurement mode. What’s in the Kit Include Quantity PH850 PH850 portable pH meter 1 set 201T-F plastic three-in-on pH electrode 1 pc pH standard buffer 1 bottle each solution (4.00 pH /7.00pH/10.01/50mL) -
Page 16: Recommended Ph Electrodes For Different Applications
Recommended pH Electrodes for Different Applications Application Ideal Apera pH Electrodes to Use with 850 Series Meter General water solutions 201T-F, LabSen 211, LabSen 213 Beverage, beer, wine… LabSen 211, LabSen 213 Cosmetics LabSen 851-S Corrosive solutions LabSen 861 Culture medium LabSen 823, LabSen 821, LabSen 851-S Dairy products (milk, cream, yogurt, mayo, etc.) LabSen 823, LabSen 821... -
Page 17: Warranty
We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at the option of APERA INSTRUMENTS, LLC, any malfunctioned or damaged product attributable to the responsibility of APERA INSTRUMENTS, LLC for a period of THREE YEARS for the instrument and SIX MONTHS for the probe from the delivery. -
Page 18: Appendix I: Parameter Setting & Factory Default Setting
10 Appendix I: Parameter Setting & Factory Default Setting Restore to Modes" Prompts" Parameter setting items" Abbreviation" Description" factory default USA$NIST P1.1 Select pH buffer solution " 0.01$0.1 P1.0 P1.2 Select resolution" 0.01 Set reading stability " Normal%High%Low P1.3 Normal criteria Restore to factory default No$Yes... -
Page 19: Appendix Ii: Abbreviation Glossary
11 Appendix II: Abbreviation Glossary Code and Modes Prompts In English Description abbreviation P1.1 Standard buffers Standard buffer solution " P1.2 Resolution Resolution" P1.0 Set up reading stability P1.3 Stability criteria criteria P1.4 Factory default setting Factory default setting " P2.1 Cell Constant Cell...
