PH60 Series Premium pH Testers
Instruction Manual

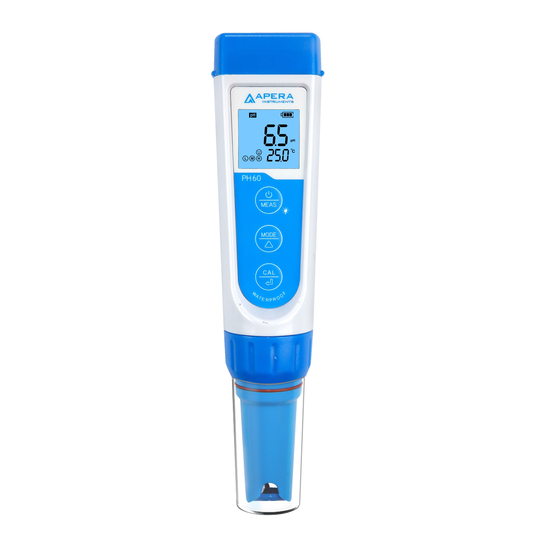

PH60 pH Tester
PH60S Spear pH Tester
PH60F Flat pH Tester
APERA INSTRUMENTS, LLC
www.aperainst.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Apera Instruments PH60

Summary of Contents for Apera Instruments PH60

  • Page 1 PH60 Series Premium pH Testers Instruction Manual PH60 pH Tester PH60S Spear pH Tester PH60F Flat pH Tester APERA INSTRUMENTS, LLC www.aperainst.com...

  • Page 2: Table Of Contents

    Thank you for purchasing the Apera Instruments PH60 Series Premium pH Tester. Please read this manual thoroughly before use in order to properly use the instrument and have a reliable testing experience. Apera Instruments reserves the rights to update the information of this manual without giving prior notices.

  • Page 3: Battery Installation

    1. Battery Installation Please install batteries according to the following steps. Please note direction of batteries: All POSITIVE SIDES (“+”) FACING UP. (Wrong installation of batteries will cause damage to the tester and potential hazards) ﹣ ﹣ ﹣ ﹣ ① Pull the battery cap up ②...

  • Page 4: Complete Kit

    4. Preparation Before Use 4.1 PH60 and PH60F: If it is first-time use or the tester hasn’t been used for over 30 days, pour certain amount (about a quarter of the probe cap) of 3M KCL solution in the probe cap, and soak the probe for about 3 to 15 minutes.

  • Page 5: Ph Calibration

    5. pH Calibration 5.1 Rinse the probe in pure water and dry it. 5.2 Pour certain amount (about half volume of calibration bottles) of pH7.00 pH and pH 4.00 buffer solutions in separate calibration bottles. 5.3 Long press to enter calibration mode; Short press to exit.

  • Page 6: Ph Measurement

    2 to 3 seconds. 6.2 Special notes a) Applications of each model: Model/Probe Application PH60/Bulb probe Most common liquid measurement such as hydroponics, aquaculture, pools and spas, water treatment, cooling towers, etc. Cheese, sushi rice, meat, fruit, bread, soil, solid culture medium PH60S/Spear probe and semi-solid medium measurement;...

  • Page 7: Parameter Setting

    c) PH60F Flat probe testers are mostly for flat surface sample test. ■ For skin test: skin should be without sweat or dirt, nor be overly cleaned (do not use facewash products before testing) to avoid affecting measurement results, dampen skin with some distilled water, slightly force flat probe onto the skin, get readings after value stabilized.
  • Page 8 7.2 Parameter setup method When turned off, long press to enter parameter setting→Short press to switch P1-P2- …P7→Short parameter flashing→Short press to choose parameter→Short press to confirm→Long press to switch off. 7.3 Parameter setting instruction a) Select standard pH buffer solution (P1): There are two options of standard buffer solutions: USA series and NIST series.

  • Page 9: Orp Measurement

    7.00pH, slope is 100%), parameter setting return to initial value. This function can be used when instrument does not work properly in calibration or measurement. Calibrate and measure again after recovering the instrument to factory default status. 8. ORP Measurement Refer to Clause 11 to replace OPR probe (to be purchased separately), press key to enter mode.

  • Page 10: Probe Replacement

    11.1 Twist off the probe ring, unplug the probe, plug in new probe (pay attention to probe’s position), and twist on the probe ring. 11.2 The model numbers of replacement probes that are compatible with the tester are:  PH60-E (Regular pH glass bulb probe)  PH60S-E (Spear pH probe for solids/semi-solids pH testing) ...

  • Page 11: Warranty

    We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at option of APERA INSTRUMENTS, LLC, any malfunctioned or damaged product attributable to responsibility of APERA INSTRUMENTS, LLC for a period of two years from the delivery (a six-month limited warranty applies to probes).
  • Page 12 APERA INSTRUMENTS, LLC Address: 977 Old Henderson Rd, Columbus, Ohio 43220 Tel: 1-614-285-3080 Email: info@aperainst.com Website: www.aperainst.com...
