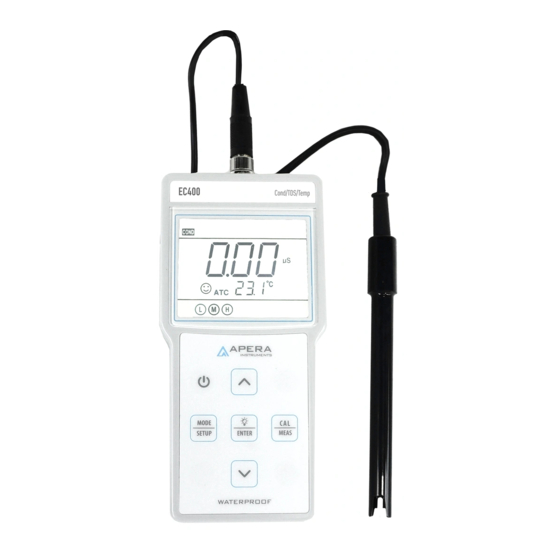

- Page 1 400 Series Portable pH/Conductivity Meter Instruction Manual PH400 Portable pH Meter EC400 Portable Conductivity Meter PC400 Portable pH/Conductivity Meter APERA INSTRUMENTS, LLC www.aperainst.com - 1 -...
-
Page 2: Table Of Contents
Table of Contents Brief Introduction ............................- 3 - Measuring Parameters ........................- 3 - Features and Functions ........................- 3 - Features in pH Measurement ......................- 3 - Features in Conductivity Measurement .................... - 3 - Technical Specifications ..........................- 4 - Parameter Specifications ........................ -
Page 3: Brief Introduction
For technical support, please contact us at info@aperainst.com or +1 (614)-285-3080 Apera Instruments reserves the right to update the content of this manual without giving prior notices. Measuring Parameters Measuring Parameters PH400... -
Page 4: Technical Specifications
Technical Parameters Models Measuring (0 to 14.00) pH Range Resolution 0.01 pH Accuracy ±0.01 pH ±1 digit Temperature PH400 Compensation (0 to 100) °C, Automatic or Manual PC400 Range Measuring -1000 mV to 0 to 1000 mV Range Resolution 1 mV Accuracy ±0.2% F.S ±1 digit... -
Page 5: Instrument Description
INSTRUMENT DESCRIPTI ON LCD Display ① — Measuring parameters ② — Measuring value ③ — Reminder icons ④ — Measurement unit ⑤ — Temperature unit ⑥ — Measuring unit in calibration ⑦ — Calibration value, numberings of data storage, and reminder icons ⑧... - Page 6 Table- 1 Keypad Operation and Functions Keypad Operation Functions • Short Press Power on/off Choose measuring mode: • PH400 pH Meter: → Short Press • EC400 Conductivity Meter: → • PC400 pH/Cond. Meter: → → →...
-
Page 7: Ph Measurement
• In manual temperature compensation (MTC) mode: Short press to adjust temperature, long press to adjust swiftly. Short Press • In parameter setting mode: press to change the numbering of parameters or Long Press in main menu and sub-menu. • In sub-menu, press to change parameters and settings. - Page 8 Table-2 pH Standard Calibration Solution Series Calibration Icons USA Series NIST Series 4.00 pH 4.01 pH 3-point 7.00 pH 6.86 pH calibration 10.01pH 9.18 pH 4.2.2 pH Calibration Modes The instrument has 1 to 3 points auto calibration mode. The 1 point must be 7.00 pH (or 6.86 if using NIST).
-
Page 9: Ph Calibration (Take 3-Point Calibration As An Example)
pH Calibration (Take 3-point calibration as an example) 4.3.1 Press to enter calibration mode. CAL1 icon will flash in the upper right corner of the LCD. 7.00 pH will flash in the lower right corner of the LCD, reminding you to use pH 7.00 buffer to conduct 1 point of calibration. -
Page 10: Sample Measurement
Sample Measurement 4.4.1 Rinse the pH electrode in distilled water, dry it, and dip it into sample solution. Stir the solution gently and let it stand still in the sample solution until icon appears and stays on LCD, get the pH reading, which is pH value of sample solution, please refer to Figure-5 for calibration and measurement process of the pH meter. -
Page 11: Maintenance Of The Ph Electrode
Returning to factory default setting is to restore the meter to the theoretical value (zero potential pH is 7.00, slope is 100%), and set all the parameters to default settings (see appendix 1). When the meter’s calibration or measurement is performing abnormally, users can use this function to let the meter return to factory default mode, and conduct calibration and then test again. -
Page 12: Mv Measurement
Inorganic metal oxide Dilute acid less than 1mol/L Organic lipid Dilute detergent (weak alkaline) Resin macromolecule Dilute alcohol, acetone, ether Proteinic haematocyte sediment Acidic enzymatic solution (saccharated yeast tablets) Paints Dilute bleacher, peroxide Notes: 1) The instruments will NOT give accurate and stable pH readings when measuring distilled or deionized water. -
Page 13: Conductivity Measurement
electrode: (a) For inorganic pollutant, soak the electrode in 0.1mol/L dilute hydrochloric acid for 30 minutes, then wash it in distilled water, then soak it in the 3M KCL storage solution for 6 hours. (b) For organic or lipid pollutant, clean the platinum surface with detergent, then wash it in distilled water, then soak it in the 3M KCL storage solution for 6 hours. - Page 14 Table-8 Conductivity Calibration Solutions Calibration Icons Calibration Solutions 84 μS/cm 1413 μS/cm 12.88 mS/cm 111.8 mS/cm 6.2.2. How often to calibrate (a) The meter has been calibrated before leaving the factory and can generally be used right out of the box. (b) Normally perform calibration once per month.
-
Page 15: Conductivity Calibration
Conductivity Calibration 6.3.1. Rinse the electrode in distilled water, allow it to dry, wash with a little of standard solution and dip it in standard solution. Stir the solution briefly and allow it to stay in the solution until a stable reading is reached. 6.3.2. -
Page 16: Sample Test
Sample test 6.5.1. Rinse conductivity electrode in distilled water, dry it, and dip it in the sample solution. Stir the solution briefly and allow it to stay in the sample solution until a stable reading is reached and icon appears on LCD, then get the reading value, which is the conductivity value of the solution. -
Page 17: Parameter Setting
PAR AM ETER SETTI NG Main Menu In the measurement mode, press key to enter in P1.0, then press to switch main menu: P1.0→P2.0→P4.0. Please refer to Figure - 7. P1.0: pH parameter setting menu, P2.0: Conductivity parameter setting menu, P4.0: Basic parameter setting menu. - Page 18 Main Menu pH Setting Submenu P1.1 Select pH buffers P1.2 Restore to factory default Conductivity Setting Submenu P2.1 Select electrode’s constant P2.2 Select reference temp. P2.3 Adjust temp. coefficient P2.4 Adjust TDS factor P2.5 Restore to factory default Basic Parameter Setup Submenu P4.1 Select temp.
- Page 19 pH Setting Sub-Menu P1.1 — Select pH buffer series (USA—NIST) 1. In measurement mode, long press to enter P1.0, press to enter P1.1 2. Press , “USA” flashes; Press to choose USA→NIST; Press to confirm. USA—USA NIS—NIST 3. Press to enter P1.2, or press to return to measurement mode.
- Page 20 P2.5 — Return to factory default mode (No—Yes) Press , “No” flashes, press to choose No→Yes; Press to confirm, the meter returns to measurement mode. No— not return to factory default mode; Yes—return to factory default mode If not choosing Yes, press to return to measurement mode.
-
Page 21: Complete Kit
APERA INSTRUMENTS, LLC, any malfunctioned or damaged product attributable to responsibility of APERA INSTRUMENTS, LLC for a period of two years from the delivery (a six-month limited warranty applies to probes). This warranty does not apply to defects resulting from actions such as misuse (violation of the instructions in this manual or operations in the manner not specified in this manual), improper maintenance, or unauthorized repairs. -
Page 22: Appendix 1: Table Of Parameter Setting And Factory Default Setting
10 APPENDIX 1: TABLE OF PAR AM ETER SE TTI NG AND FACTORY DEFAULT SETTI NG Mode Symbol Parameter Abbreviation Content Factory Default － P1.1 Select Buffer Series P1.0 USA－NIST P1.2 Restore to factory default settings No－Yes P2.1 Select electrode’s constant 1.0－10.0－0.1 P2.2 Select reference temperature... -
Page 23: Appendix 3: Table Of Self-Diagnosis
NIST Series 12 APPENDIX 3: TABLE OF SELF-DI AG NOSIS Symbol Self-Diagnosis Information Conductivity Wrong conductivity calibration solution or the meter recognition √ √ of calibration solution out of range. √ √ Press key when measuring value is not stable during calibration. √... - Page 24 APERA INSTRUMENTS, LLC Address: 6656 Busch Blvd, Columbus Ohio 43229 Tel: 1-614-285-3080 Email: info@aperainst.com Website: www.aperainst.com - 24 -...
