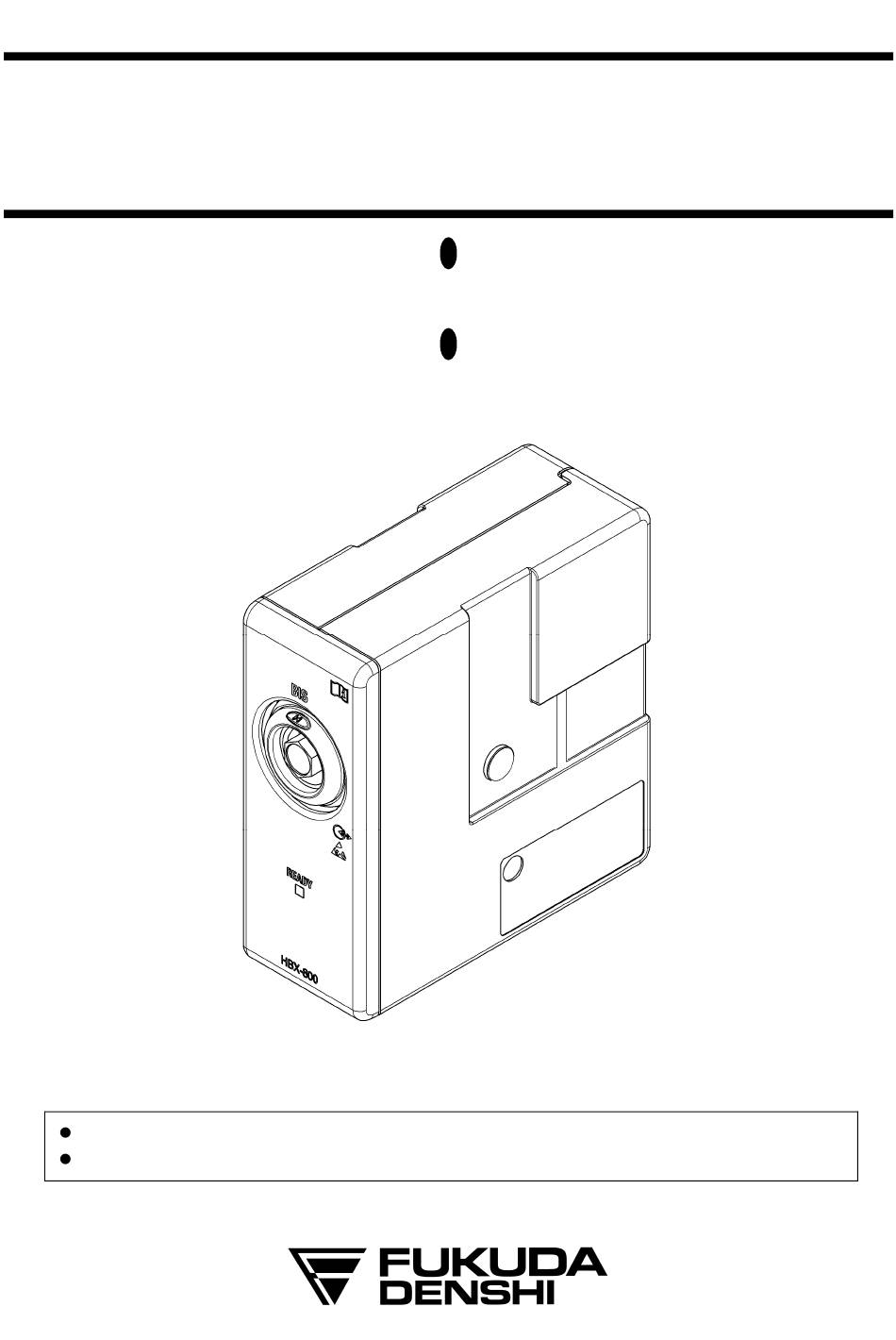

- Page 1 BISx I/F Unit ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● HBX-800 Service Manual Before setting up/maintenance, please read this “Service Manual” thoroughly.
- Page 2 • The company and product names used in this manual are trademarks or registered trademarks. • If this manual has pages missing or out of order, contact Fukuda Denshi for replacement. • Only physician or persons instructed by physicians are allowed to use the equipment.
-
Page 3: Revision History
Revision History Model Name: HBX-800 Service Manual Edition Revised Items Reason of the Revision Date New Edition 2014.02 －... - Page 4 Blank Page...
-
Page 5: General Description
General Description The HBX-800 is an interface unit between the AUX connector of the HS-8312N/HS-8312M (or other equipment which the HBX-800 is connected to) and the BISx Module to measure the BIS, SQI, SR and EMG. <Connecting the HBX-800 BISx I/F Unit and HS-8312N/HS-8312M Super Unit>... -
Page 6: Specification
Specification/ Performance The specification and performance of this equipment are as follows. Specification Dimensions 36(W) × 87(D) × 91(H) mm ± 10mm (not including the connector part and protrusion) Weight 0.20kg ± 0.05kg (not including the accessory) Environmental Conditions Operational Temperature : 10 to 40°C Operational Humidity : 30 to 85% (non-condensing) - Page 7 Usable Life 6 years : According to self-certification Refer to “Maintenance” for the usable life of periodic replacement parts. Performance BIS Monitoring (HBX-800 with BISx) Bispectral Index (BIS) Range: 0-100 Signal Quality Index (SQI) Range: 0-100% EMG Range: 25-100dB (Tabular Trend)
-
Page 8: Name Of Parts And Their Functions
When the BISx is connected, it will light in green. AUX Connection Cable Connects to the AUX connector of the HS-8312N/HS-8312M. Do not connect a unit or cable not authorized by Fukuda Denshi to any I/O connector. W A R N I N G... -
Page 9: Block Diagram
① Interface with HS-8000 DF11C-14DP-2V ② DF13C-14P-1.25 Interface with BISx The list of Connection Cable in HBX-800 Block Diagram is as follows: Item Code Item Name 1M010503A AUX inner cable for HPD-810 (Same as the HPD-810) 1M0105810 BIS IF unit Input connector Cable... - Page 10 If the indicator does not light, 12V may not be supplied. If the indicator lights red, it could not supply 5V to BISx. PCB-7604 READY LED board is installed in front of the HBX-800. Internal Connector on the PCB-7605 POD Cable Connector CN1 (DF11C-14DP-2V)
- Page 11 BISx Interface Connector CN2 (DF13C-14P-1.25V) Signal Type Description Note Driving power supply of BISx Driving power supply of BISx Driving power supply of BISx Driving power supply of BISx RESERVE Reserved pin RESERVE Reserved pin RESERVE Reserved pin HOST_RxD Serial Receive Data from BISx RS-232 HOST_TxD Serial Transmission Data to BISx...
-
Page 12: Other Spare Parts
Spare Parts Lists Electrical Parts Item Code Item Name Model Type Note 9F0106860 LED Board PCB-7604 SAS － 9F0106870 BIS IF Board PCB-7605 SAS － Cables Item Code Item Name Note 1M010503A AUX inner cable for HPD-810 (Same as HPD-810) －... - Page 13 Note: Put screw locking glue on it. Note: This dent should be upward when assembling. Note: This mark should be upward Note: Put screw when assembling. locking glue on it. Note: It should keep flat when assembling. Item Code Drawing No. Item/Model Q’ty 6C0128870...
-
Page 14: Troubleshooting
Troubleshooting The power indicator of HBX-800 lights red. Cause : HBX-800 is defective. Solution : Cease using the equipment and contact your nearest service representative to repair the HBX-800. <BISx Disconnected> is displayed. Cause 1 : BISx is disconnected. Solution : Connect the BISx and verify all cable connections. - Page 15 Cause 2 : Sensor application is incorrect. Solution : Read Instructions on sensor package and reapply sensor. Cause 3 : Sensor connection is poor. Solution : Check sensor connection. Cause 4 : Patient interface cable is defective. Solution : Replace the patient interface cable. Cause 5 : BISx is defective.
- Page 16 <BISx Incompatible> is displayed. Cause : The sensor is not compatible with the monitor configuration. Solution : Replace the BISx. <Check BIS Sensor, Perform Sensor Check> is displayed. Cause : Problem is detected relating to sensor ground element, or sensor is using too much current.
-
Page 17: Maintenance
For the test menus of other devices and whole system, refer to the DS-8500 service manual. The HBX-800 test menu is operated from the display of the DS-8500 system main unit. 1. Press the [Menu] → [Maintenance] → [Test Menu] keys, and enter password “11111111”. - Page 18 When the power is turned ON and BISx is not connected, it will light in orange. When the BISx is connected, it will light in green. If HBX-800 is defective, it will light in red or turns off. In such case, HBX-800 needs to be repaired.
-
Page 19: Sensor Simulator
Sensor Simulator To test the system from the BISx to the BIS sensor, you will need a Sensor Simulator (Covidien Part Number 186-0137) Sensor Check The sensor check tests and verifies that the monitor is reporting the proper impedance values provided by the Sensor Simulator. -
Page 20: Storing The Equipment
Do not mix disinfecting solutions (e.g., bleach and ammonia) as hazardous gases may result. Do not autoclave the BISx Module or HBX-800. Autoclaving will seriously damage both components. C A U T I O N Avoid liquid ingress to the patient interface cable. Contact of fluids with the... - Page 21 3-39-4 Hongo, Bunkyo-ku, Tokyo, Japan Tel: +81-3-5684-1455 Fax: +81-3-3814-1222 http://www.fukuda.com Printed in Japan 4R0101000 201402...
