This device bears the CE label in accordance with the provisions of Medical Device Directive 93/42/EEC.
This device bears the CE label in accordance with the provisions of RoHS Directive 2011/65/EU.
For details on how to set the monitoring condition, refer to the operation manual of the DS-8500 System or other equipment which the HBX-800 is
connected to.
Safety Precautions
Make sure to follow the precautions indicated below, as these are
important messages related to safety. The followings are descriptions
and graphic symbols of the safety and precaution messages used in this
manual.
Failure to follow this message may result in death
WARNING
or serious injury.
Failure to follow this message may cause injury or
CAUTION
failure to the equipment.
A note is not related to product safety, but provides
information about the correct use and operating
NOTE
procedures to prevent incorrect operation and
malfunction of the equipment.
Graphic Symbols
The following are the symbols and their meaning indicated on the
equipment.
Symbol
Follow operating instructions (Information).
Type BF Applied Part with Defibrillation-Proof
Indicates the degree of protection against electric
shock which is Type BF eApplied Part with
defibrillation-proof.
Electrostatic Sensitive Part
Directly touching this connector part with hands
should be avoided.
Signal Input/Output
Year of Manufacture
Indicates the manufactured year.
WEEE (Waste Electrical and Electronics Equipment)
Indicates a separate collection for electrical and
electronic equipment.
General Description
The HBX-800 is an interface unit between the AUX connector of the
HS-8312N/HS-8312M (or other equipment which the HBX-800 is
connected to) and the BISx Module to measure the BIS, SQI, SR and
EMG.
The HBX-800 is provided with a serial communication connector which
connects the BISx Module (optional).
HBX-800 BISx I/F UNIT
(Bispectral Index, BISx Module Interface)
3-39-4 Hongo, Bunkyo-ku, Tokyo, Japan
Phone:+81-3-5684-1455 Fax:+81-3-3814-1222
Copyright © 2014 by Fukuda Denshi Co., Ltd.
No part of this document may be copied or transmitted in any form without the prior written permission of
Fukuda Denshi Co., Ltd.
Thank you for purchasing this product.
Before using this product, read through this manual and also refer to the DS-8500 System operation manual.
After reading, keep this manual near the unit for future reference.
Fukuda Denshi UK
Unit 7, Genesis Business Park, Albert Drive, Woking, Surrey GU21 5RW, United Kingdom
Description
Instruction Manual
Printed in Japan
2
1
1
Power Supply Indicator
Serial Communication
2
Connector (BISx Input)
3
AUX Connection Cable
If the indicator does not light or lights red when connected to the
patient monitor, disconnect it and cease using the equipment.
Contact your nearest service representative.
- 1 -
4L0110810 201401

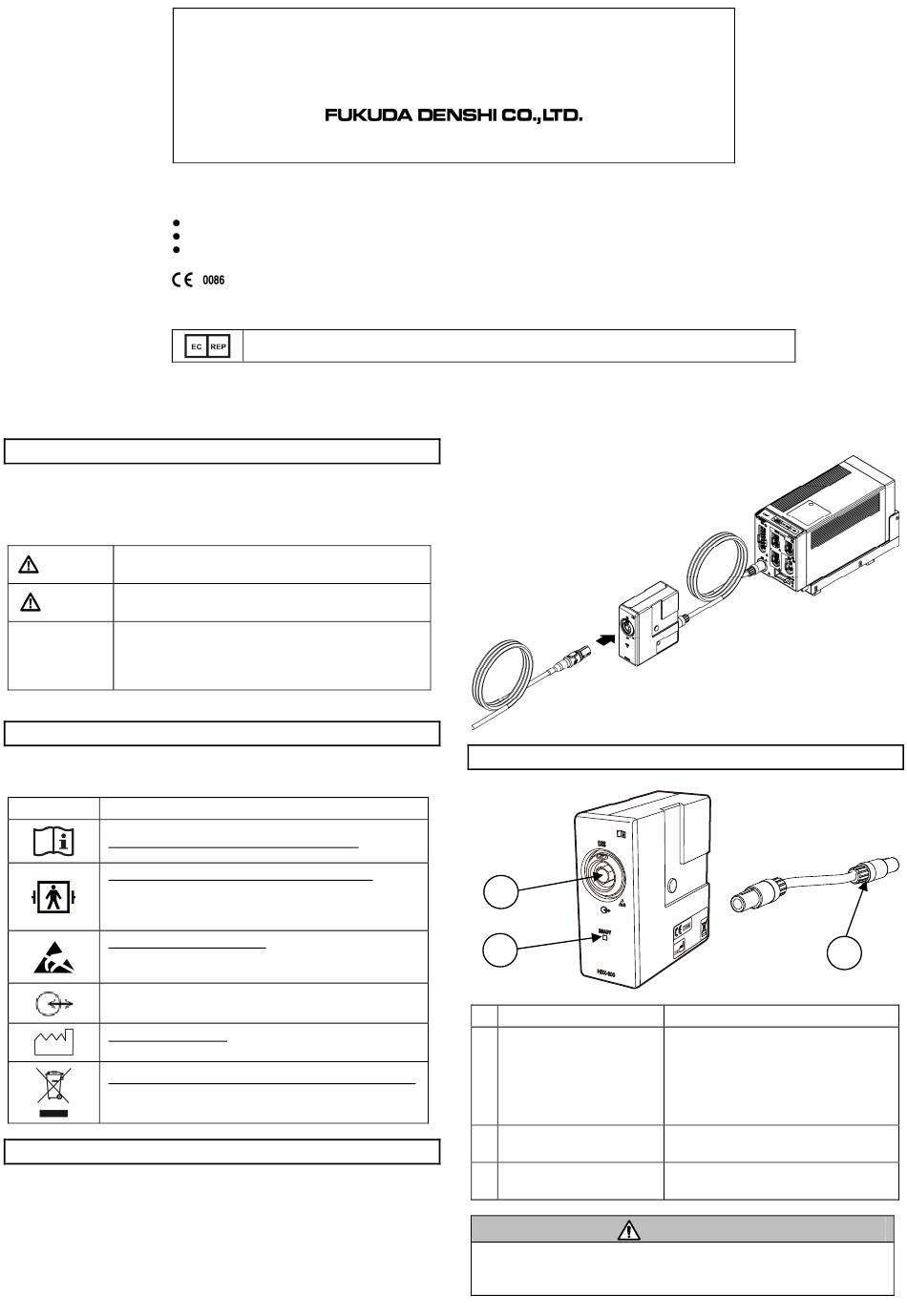

<HS-8312N/HS-8312M and HBX-800>
Name of Parts and Their Functions
Item
Indicates the power ON/OFF status.
When the power is turned ON and
BISx Module is not connected, it will
light in orange. When the BISx
Module is connected, it will light in
green.
Connects the BISx Module
(Covidien).
Connects to the AUX connector of
the HS-8312N/HS-8312M.
CAUTION
3
Function
