  • Page 1 NSC-200 Network & Service Companion User Guide...
  • Page 2 Copyright/Trademarks © Copyright 2022 VIAVI Solutions Inc. All rights reserved. No part of this guide may be reproduced or transmitted, electronically or otherwise, without written permission of the publisher. VIAVI Solutions and the VIAVI logo are trademarks of VIAVI Solutions Inc. (“Viavi”).
  • Page 3 (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by VIAVI could void the user's authority to operate the equipment.
  • Page 4 VIAVI has established a take-back process in compliance with the EU Waste Electrical and Electronic Equipment (WEEE) Directive, 2012/19/EU, and the EU Battery Directive, 2006/66/EC. Instructions for returning waste equipment and batteries to VIAVI can be found in the WEEE section of the VIAVI Standards and Policies web page.
  • Page 5 California and the state’s drinking water and environment from excessive exposure to chemicals known to the state to cause cancer, birth defects or other reproductive harm. For the VIAVI position statement on the use of Proposition 65 chemicals in VIAVI products, see the Hazardous Substance Control section of the VIAVI Standards and Policies web page.
  • Page 6 Precautions WARNING: Pursuant to FCC 15.21 of the FCC rules, changes not expressly approved by VIAVI might cause harmful interference and void the FCC authorization to operate this product. CAUTION: Do not use the instrument in any manner not recommended by the manufacturer.

  • Page 7: Table Of Contents

    Conventions ......................12 Typographical conventions................12 Keyboard and menu conventions ...............13 Symbol conventions ..................13 Safety definitions ................... 14 What ships with the NSC-200 ................15 Preparation for use ....................15 Chapter 1 Quick Tour About the Companion ..................18 Benefits ......................18 Features ......................
  • Page 8 Viewing hardware/software versions and options ....... 57 Syncing to the StrataSync server ..............58 Syncing with StrataSync ................59 Managing files ......................61 NSC-200 Files ....................61 Mobile Tech Files ....................63 Managing files with StrataSync ...............65 Remotely controlling the Companion ............. 66...
  • Page 9 Before you begin ....................93 SpeedCheck testing .................... 94 SpeedCheck server setup ................94 Iperf testing ......................95 Before you begin ....................95 VIAVI UDP Speed testing ..................95 Before you begin ....................95 Chapter 5 Appendix Cleaning the instrument ..................98 Resolving problems ....................98 General testing ....................98...
  • Page 10 Contents NSC-200 User Guide 22162977 July 2022...

  • Page 11: About This Guide

    About this Guide Thank you for purchasing the NSC-200 Network & Service Companion. This guide provides setup and operating instructions to get you up and running as soon as possible. Purpose and scope The purpose of this guide is to help you successfully use the product features and capabilities.

  • Page 12: Safety And Compliance Information

    A vertical bar | means “or”: only one option can appear in a single platform [a|b|e] command. Square brackets [ ] indicate an login [platform name] optional argument. Slanted brackets < > group <password> required arguments. NSC-200 User Guide 22162977 July 2022...

  • Page 13: Keyboard And Menu Conventions

    This symbol represents a risk of a hot surface. It may be associated with either a DANGER, WARNING, CAUTION, or ALERT message. See the "Safety definitions" on page 14 for more information. NSC-200 User Guide July 2022 22162977...

  • Page 14: Safety Definitions

    Indicates that there is an action that must be ALERT performed in order to protect equipment and data or to avoid software damage and service interruption. NSC-200 User Guide 22162977 July 2022...

  • Page 15: What Ships With The Nsc-200

    Turn the unit on. If the Power indicator is red, charge the battery. NOTE: For additonal information about Companion options and services, contact your local VIAVI representative or visit www.viavisolutions.com. NOTE: This hand-held instrument is not intended to be body worn, or operated while held against the body.
  • Page 16 About this Guide NSC-200 User Guide 22162977 July 2022...

  • Page 17: Chapter 1 Quick Tour

    Quick Tour This chapter provides an overview of the unit, status indicators, connectors, and using with the VIAVI Mobile Tech app, including the following: "About the Companion" on page 18 "A guided tour of the Companion" on page 20 "VIAVI Mobile Tech app" on page 24 "Connecting to StrataSync"...

  • Page 18: About The Companion

    Chapter 1 Quick Tour About the Companion The VIAVI Network & Service Companion™ NSC-200 allows techs and contractors to validate both network & service layers before sharing their test results with customers & providers. Simplify the closeout test process and analysis for...

  • Page 19: Features

    PON data analysis (PON-ID) PON power levels Job Manager NOTE: Running IP, ping, web connectivity, and speed tests require the full GPON software option. For more information, contact your local VIAVI representative or visit www.viavisolutions.com. NSC-200 User Guide July 2022 22162977...

  • Page 20: A Guided Tour Of The Companion

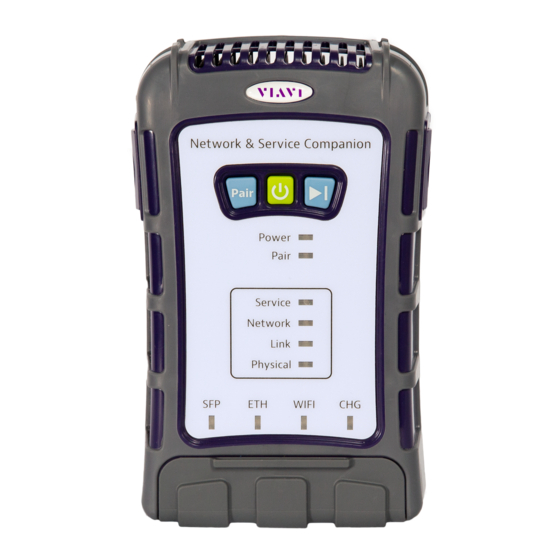

    Chapter 1 Quick Tour A guided tour of the Companion Front view Power and Pair buttons Power and Pair indicators Service and Network indicators Status indicators NSC-200 User Guide 22162977 July 2022...

  • Page 21: Bottom View

    Charging the battery Connect the supplied AC adapter to the USB-C port on the unit to power the Companion or charge the battery. A full charge could take up to an hour or so. NSC-200 User Guide July 2022 22162977...

  • Page 22: Status Indicators

    Solid green – Charge complete Flashing red – Error in charging or powering the unit. Make sure you are using the VIAVI charger supplied with the unit and try again. The meter may need to be serviced by a Certified Repair Center. Before sending in the unit for repair, contact VIAVI for an RMA.

  • Page 23: Power And Pair Buttons

    Pair – Press and hold to pair with a Bluetooth device Power – Press and hold to turn the Companion on or off Play – Used for safe testing without entering the home. See "Delayed Start testing" on page NSC-200 User Guide July 2022 22162977...

  • Page 24: Viavi Mobile Tech App

    The Companion is designed to be paired with a mobile device or tablet (such as an iPhone, iPad, or similar Android device), and leverages the user interface of those devices along with the VIAVI Mobile Tech App to provide a smooth user experience.

  • Page 25: Using The Mobile Tech App

    If your meter is compatible, you can also log in with your instrument or transfer files in local mode. To change your current server, select Current Server at the bottom and choose Europe or United States. NSC-200 User Guide July 2022 22162977...

  • Page 26: Pairing The Companion To Your Mobile Device

    Verify that the device is not paired with any NSC Companion unit. 3. From the Mobile Tech Main menu, under My Devices, find the Companion, shown as “NSC-200”, and select Connect. If you don't see the device, you may need to press Discover Devices.

  • Page 27: Mobile Tech Main Menu

    Near the top of the Main menu, you can select Show more to see details on your instrument, including all of the installed options. Show more Companion – Run tests and configure profiles for the Companion NSC-200 User Guide July 2022 22162977...
  • Page 28 Chapter 1 Quick Tour Job Manager – Attach jobs to tests, including customer info and work orders, and track test results Instrument Sync – Sync your instrument to StrataSync and deploy configuration files NSC-200 User Guide 22162977 July 2022...
  • Page 29 Chapter 1 Quick Tour NSC-200 Files and Mobile Tech Files – Manage files on the unit that you can save to your phone or tablet. Use the NSC-200 Files menu to manage files stored on your meter, use the Mobile Tech Files menu to manage those stored on your mobile device.

  • Page 30: Mobile Tech Options Menu

    From the Main menu, select the Options menu in the upper right. The Options menu appears. Documentation – View and download various documentation for your instrument, including applications notes, software release notes, and quick reference guides NSC-200 User Guide 22162977 July 2022...
  • Page 31 Chapter 1 Quick Tour StrataSync – Connect to StrataSync from your browser for advanced account settings and configuration Product Support – Contact the VIAVI Technical Assistance Center, request repair or calibration, or watch quick tip videos NSC-200 User Guide July 2022...
  • Page 32 Chapter 1 Quick Tour Settings – Configure advanced settings for the Mobile Tech app, including when the unit syncs and clearing local data Upgrade Firmware – Easily upgrade the firmware of your Companion from StrataSync NSC-200 User Guide 22162977 July 2022...

  • Page 33: Companion Menu

    From the Main menu, press the Companion button to bring up the Companion menu. Here you can run tests and set up your testing profiles, as well as check the firmware version of the meter and the battery status. Companion menu NSC-200 User Guide July 2022 22162977...
  • Page 34 Chapter 1 Quick Tour OneCheck PON – Run simplified OneCheck PON tests OneCheck Ethernet – Run simplified OneCheck Ethernet tests OneCheck WiFi – Run simplified OneCheck WiFi tests NSC-200 User Guide 22162977 July 2022...
  • Page 35 Chapter 1 Quick Tour WiFi Expert – Run advanced WiFi tests, including coverage, channel noise, airtime, and throughput Loopback – Run simplified Loopback 1G and 10 G tests NSC-200 User Guide July 2022 22162977...
  • Page 36 Chapter 1 Quick Tour TWAMP Light – Run simplified TWAMP (Two-Way Active Measurement Protocol) light tests Fusion Client – Run simplified Fusion Client tests NSC-200 User Guide 22162977 July 2022...
  • Page 37 Chapter 1 Quick Tour Profile Manager – Set up and manage testing profiles Meter Settings – Configure advanced settings for the Companion, including customer info, power settings, and the bluetooth device name NSC-200 NSC-200 NSC-200 User Guide July 2022 22162977...
  • Page 38 Chapter 1 Quick Tour Remote Control – Run tests on the NSC remotely if the Mobile Tech app and the NSC are on the same network NSC-200 User Guide 22162977 July 2022...

  • Page 39: Chapter 2 Meter Setup

    "Syncing to the StrataSync server" on page 58 "Managing files" on page 61 "Managing files with StrataSync" on page 65 "Getting your customer's signature" on page 68 "Remotely controlling the Companion" on page 66 NSC-200 User Guide July 2022 22162977...

  • Page 40: Mobile Tech Settings

    View location history Enable logging Perform a comprehensive sync to StrataSync Clear local storage From Mobile Tech Main menu, select Options in the upper right, then press Settings. The Settings menu appears. Settings menu NSC-200 User Guide 22162977 July 2022...

  • Page 41: Companion

    Change the Bluetooth name of the meter Reset GPON SFP Restore factory default settings From the Main menu, select the Companion menu, and then scroll down and press Meter Settings. The Meter Settings menu appears. Meter Settings NSC-200 NSC-200 NSC-200 User Guide July 2022 22162977...

  • Page 42: Specifying User Information

    2. Press OK to restore the factory default settings. 3. Settings are restored to their factory default values. You must reboot your instrument for the factory defaults to take effect. NSC-200 User Guide 22162977 July 2022...

  • Page 43: Job Manager

    4. Enter a unique work order ID. For NSC jobs, you can also enter customer information. 5. When finished, select Save at the bottom. The job will be added to the jobs list. NSC-200 User Guide July 2022 22162977...

  • Page 44: Managing Jobs

    Take video, or Saved Photo or video, Saved File, or Attach Mobile Tech Files. To export job files to another app, select Export Job Files and choose the app you want from the pop up. To delete a job, select Delete. NSC-200 User Guide 22162977 July 2022...

  • Page 45: Profile Manager

    4. From there, you can import an existing profile to edit or enter the connection details for the new one. 5. When finished, select Save and Exit at the bottom, or Save and Run to run the test immediately. Profile Manager NSC-200 User Guide July 2022 22162977...

  • Page 46: Profile Setup

    PON ID Type Passive Mode Interface Run IP Test Run Ping Test Run Traceroute Test Run Ookla Speedtest Run Web Test Run Broadcom Speed Service Run TrueSpeed Run SpeedCheck Run Iperf Test Viavi UDP Speed Test NSC-200 User Guide 22162977 July 2022...
  • Page 47 Typically a carrier would have a special management VLAN (e.g. VLAN 100) that would need to be associated with the NSC's management IP address. Assigning just two IP addresses without any VLAN usage prevents the NSC from distinguishing between the different IPs. NSC-200 User Guide July 2022 22162977...
  • Page 48 Optical Loss Max Threshold (dB) Data Interface Interface Protocol Customize MAC Address Custom MAC Address Address Type – DHCP or Static IPv4 Address – Enter the instrument’s IP address (which will be used when accessing the provider network). NSC-200 User Guide 22162977 July 2022...
  • Page 49 Server Tx Count (1-100000000) Tx Size (24-2000) Tx Packet Interval (ms) Max Threshold (%) Traceroute Configuration Run Traceroute Test Destination IP / DNS Name DNS Lookup Packet Type Max Hops Max Delay Threshold (ms) NSC-200 User Guide July 2022 22162977...
  • Page 50 Loss (%) Upload Threshold (Mbps) Download Threshold (Mbps) TrueSpeed Configuration Run TrueSpeed Gateway Enable Host User Password Test Duration Per Direction (s) Saturation Window (%) Saturation Connections (%) Upload CIR (Mbps) Download CIR (Mbps) NSC-200 User Guide 22162977 July 2022...
  • Page 51 Port Test Duration (s) Transport Protocol Number of Streams Window Size (KB) Upload Threshold (Mbps) Download Threshold (Mbps) VIAVI UDP Speed Test Configuration Run Viavi UDP Speed TestTrueSpeed Host User Password Upload CIR (Mbps) Download CIR (Mbps) Upload Threshold (Mbps)
  • Page 52 Delay Network Test after Ethernet Link is Established (s) NOTE: Running IP, ping, web connectivity, and speed tests require the full GPON software option. For more information, contact your local VIAVI representative or visit www.viavisolutions.com. NSC-200 User Guide 22162977 July 2022...

  • Page 53: Connecting To The Network

    Connect the other end of the Ethernet cable to the LAN. 2. Verify that network connectivity is enabled via the status indicators on the meter. 3. Use the Profile Manager and testing profiles in the previous section to configure your network. NSC-200 User Guide July 2022 22162977...

  • Page 54: Wifi Connections

    (based on signal strength and/or encryption supported). The instrument can save up to 32 WiFi network profiles. NOTE: Your instrument will automatically save your WiFi network password for 24 hours after successfully connecting to a new WiFi network. NSC-200 User Guide 22162977 July 2022...

  • Page 55: Updating The Firmware From Usb

    The meter will power off when finished. Installing software options You can install software options via USB drive if VIAVI sends you a file or via StrataSync. 1. Before installing options, upgrade to the latest firmware, as shown in the previous section.

  • Page 56: Updating The Firmware From Stratasync

    The update will begin and the meter will power off when finished. Please wait as this could take 10-15 minutes, based on the size of the update file and connection speed. NOTE: You need the appropriate permissions in StrataSync to update the firmware. NSC-200 User Guide 22162977 July 2022...

  • Page 57: Viewing Hardware/Software Versions And Options

    You can easily see more detail about your Companion, including the software version, serial number, Tech ID, and installed software options. From the Main menu, select Show More near the top of the screen. Scroll down to see more details. Show More NSC-200 User Guide July 2022 22162977...

  • Page 58: Syncing To The Stratasync Server

    To obtain the latest configuration settings, software options and updates, and ownership registration information, the Companion can sync with a VIAVI server via the internet. The synchronization also stores any user files saved on the unit to the StrataSync server.

  • Page 59: Syncing With Stratasync

    Deploy – Shows any files from StrataSync that are ready to be deployed to the unit Completed – Shows files that have been synced or deployed. Select the arrow to the right for more detail Instrument Sync NSC-200 User Guide July 2022 22162977...
  • Page 60 This can be used to create a “golden” unit. Lastly, if any updates are available, you will be prompted that you can update When synchronization is complete, the Status will indicate “Sync Complete”. NSC-200 User Guide 22162977 July 2022...

  • Page 61: Managing Files

    The Companion's file management is separated into 2 menus, NSC-200 Files and Mobile Tech Files. Use the NSC-200 Files menu to manage files stored on your meter, while the Mobile Tech Files menu is used to manage those stored on your mobile device,...
  • Page 62 To select multiple files, press the Select Multiple button at the bottom, and then select the files to download or delete. Then select Download or Delete. NSC-200 User Guide 22162977 July 2022...

  • Page 63: Mobile Tech Files

    To view PDF files, you may need to download a PDF reader app, such as Adobe PDF Reader. 1. From the Main menu, select Mobile Tech Files. The Files screen appears, showing the list of files on your mobile device. Mobile Tech Files NSC-200 NSC-200 User Guide July 2022 22162977...
  • Page 64 The file can also be deployed to the NSC-100 or attached to a job. The files are automatically uploaded to StrataSync, as well. To delete a file, select the file and swipe to the left. Then select Delete. NSC-200 NSC-200 User Guide 22162977 July 2022...

  • Page 65: Managing Files With Stratasync

    .92&company= Network | Ping Server IP 4.2.2.1 Requests Sent Replies Received Replies Lost Average Delay (ms) 14.0 Replies Lost (%) Network | IP Address bh001 2 / 4 NSC-100 / RRSO0071990071 0.0.99-2049 NSC-200 User Guide July 2022 22162977...

  • Page 66: Remotely Controlling The Companion

    3. Set up your hardware as necessary, including using the optional USB to Ethernet adapter to connect to your router. 4. Configure your network. 5. When finished, select Apply at the bottom to remotely connect to the NSC. Remote Control NSC-200 User Guide 22162977 July 2022...
  • Page 67 Chapter 2 Meter Setup NSC-200 User Guide July 2022 22162977...

  • Page 68: Y "Getting Your Customer's Signature

    Chapter 2 Meter Setup NSC-200 User Guide 22162977 July 2022...

  • Page 69: Chapter 3 Onecheck Testing

    "TWAMP Light" on page 83 "Fusion Client" on page 84 "Creating a report" on page 85 "Deleting a report" on page 86 "Testing the data layer" on page 86 "Delayed Start testing" on page 87 NSC-200 User Guide July 2022 22162977...

  • Page 70: About Onecheck Testing

    OneCheck WiFi WiFi Expert Loopback TWAMP Light Fusion Client NOTE: Running IP, ping, web connectivity, and speed tests require the full GPON software option. For more information, contact your local VIAVI representative or visit www.viavisolutions.com. NSC-200 User Guide 22162977 July 2022...

  • Page 71: Onecheck Pon

    For more details, select a section of the test. When finished, you can run another test by selecting New Location. To see all tests or save the reports, select Job View. "Creating a report" on page 85. NSC-200 User Guide July 2022 22162977...

  • Page 72: Onecheck Ethernet

    For more details, select a section of the test. When finished, you can run another test by selecting New Location. To see all tests or save the reports, select Job View. "Creating a report" on page 85. NSC-200 User Guide 22162977 July 2022...

  • Page 73: Onecheck Wifi

    For more details, select a section of the test. When finished, you can run another test by selecting New Location. To see all tests or save the reports, select Job View. "Creating a report" on page 85. NSC-200 User Guide July 2022 22162977...

  • Page 74: Channel View

    You can choose from 2.4 GHz or 5 GHz, and select a channel to bring up a pop-up with more detail, incuding MAC address and SSID. Channel detail Bandwith Channel View NSC-200 User Guide 22162977 July 2022...

  • Page 75: Wifi Expert

    For more details, select a section of the test. When finished, you can run another test by selecting Network. To see all tests or save the reports, select Job View. "Creating a report" on page 85. NSC-200 User Guide July 2022 22162977...

  • Page 76: Access Points

    From the Access Points screen, you can sort and view the APs in a few ways. Sort by –Press to sort by signal strength, ascending and descending names, and channel. Show – Show by bands, 2.4 GHz + 5 GHz, 2.4 GHz, or 5 GHz NSC-200 User Guide 22162977 July 2022...

  • Page 77: Details

    Airtime bar segments the your network-device airtime vs external-device airtime Your network lists all active devices on your network under test Estimated throughput now for typical WiFi 4/5/6 devices NSC-200 User Guide July 2022 22162977...

  • Page 78: Channel View

    You can choose from 2.4 GHz or 5 GHz, and select a channel to bring up a pop-up with more detail, incuding MAC address and SSID. Channel detail Bandwith Channel View NSC-200 User Guide 22162977 July 2022...

  • Page 79: Wifi Help

    Chapter 3 OneCheck Testing WiFi Help When running the test, you can select the Info icon for more detail help. Info NSC-200 User Guide July 2022 22162977...

  • Page 80: Loopback

    7. At the end of the test, the Remote Device should Stop Traffic and send a Loop Down. To see details of the test, select Details. To save the report, select Report or Save. "Creating a report" on page 85. NSC-200 User Guide 22162977 July 2022...

  • Page 81: Port Loopback

    This test loops back all traffic. NOTE: If you have Persist on Boot enabled in the testing profile, it may take a few minutes for the unit to reboot and continue testing again after a shutdown. NSC-200 User Guide July 2022 22162977...

  • Page 82: L2 Loopback

    Chapter 3 OneCheck Testing L2 Loopback This test loops back L2 traffic from a specific MAC address. L3 Loopback This test loops back L3 traffic from a specific IP address. NSC-200 User Guide 22162977 July 2022...

  • Page 83: Twamp Light

    "Creating a report" on page 85. NOTE: If you have Persist on Boot enabled in the testing profile, it may take a few minutes for the unit to reboot and continue testing again after a shutdown. NSC-200 User Guide July 2022 22162977...

  • Page 84: Fusion Client

    "Creating a report" on page 85. NOTE: If you have Persist on Boot enabled in the testing profile, it may take a few minutes for the unit to reboot and continue testing again after a shutdown. NSC-200 User Guide 22162977 July 2022...

  • Page 85: Creating A Report

    The report will be created and saved to the meter. You can then export to your mobile device and email to your customer. See "Managing files" on page 61. Job View Report Generate Report NSC-200 User Guide July 2022 22162977...

  • Page 86: Deleting A Report

    You can delete reports from the Instrument Files or Local Files menus. "Managing files" on page 61. Testing the data layer Using the data layer tests, you can test for connectivity and throughput. See Chapter 4: Data Testing on page NSC-200 User Guide 22162977 July 2022...

  • Page 87: Delayed Start Testing

    The Delayed Start feature allows a pre-configured test to be started with the physical Play button on the NSC-200, even if the NSC is not connected to the mobile device via Bluetooth. 1. With the NSC connected to the mobile device, configure the test you want to run, and press Delayed Start.
  • Page 88 Chapter 3 OneCheck Testing NSC-200 User Guide 22162977 July 2022...

  • Page 89: Chapter 4 Data Testing

    "Ping and Traceroute testing" on page 91 "Speedtest by Ookla data testing" on page 91 "TrueSpeed testing" on page 93 "SpeedCheck testing" on page 94 "Iperf testing" on page 95 "VIAVI UDP Speed testing" on page 95 NSC-200 User Guide July 2022 22162977...

  • Page 90: About Data Tests

    VIAVI UDP Speed NOTE: Running IP, ping, web connectivity, and speed tests require the full GPON software option. For more information, contact your local VIAVI representative or visit www.viavisolutions.com. NOTE: Several of the tests require additional setup before testing. See "Profile Manager"...

  • Page 91: Ping And Traceroute Testing

    4 milliseconds. An average ping delay value and a ping delay jitter value (both in milliseconds) are provided for each ping. The final ping average result (in milliseconds) is then derived. NSC-200 User Guide July 2022 22162977...

  • Page 92: Upload Measurement

    Total bytes downloaded Download stage duration An HTTP connection then opens to the URL: http://www.speedtest.net/api/embed/api.php, and the measurements are uploaded. The Speedtest results are also available in all Save Report formats (XML, HTML, and PDF). NSC-200 User Guide 22162977 July 2022...

  • Page 93: Truespeed Testing

    TrueSpeed provides metrics that can be used to tune TCP parameters for obtaining maximum throughput. Before you begin Once you have your profile setup through Profile Manager, you can run the test. Make sure the test is enabled in the profile, as well. NSC-200 User Guide July 2022 22162977...

  • Page 94: Speedcheck Testing

    Once the server is configured, a very large file needs to be placed on the server that the Companion will download during the SpeedCheck test. VIAVI recommends a throughput file of at least 2 GB. This file is typically located in the Apache htdocs directory.

  • Page 95: Iperf Testing

    Its Download/ Upload rate is up to 10 Gbps for Ethernet. With VIAVI UDP, you can quickly evaluate the customer experience of their network and provide actionable information to resolve problems.
  • Page 96 Chapter 4 Data Testing NSC-200 User Guide 22162977 July 2022...

  • Page 97: Appendix

    "Resolving problems" on page 98 "Limited warranty" on page 99 "Getting technical assistance" on page 99 "Additional information" on page 99 "FAQs" on page 100 "Specifications" on page 102 "Ordering information" on page 105 NSC-200 User Guide July 2022 22162977...

  • Page 98: Cleaning The Instrument

    Make sure that the Ethernet interface cabling is correct. If the Ethernet cable is not hooked up, or is hooked up incorrectly, a packet will not be sent. Thus the Ethernet statistics will not increment. NSC-200 User Guide 22162977 July 2022...

  • Page 99: Limited Warranty

    Limited warranty For the latest warranty information, visit https://www.viavisolutions.com/literature/viavi-solutions-inc-general-terms-en.pdf https://www.viavisolutions.com/en-us/literature/viavi-manufacturer-warranty-nse- products-en.pdf Getting technical assistance If you require technical assistance, call 1-844-GO-VIAVI / 1.844.468.4284. For the latest TAC information, visit https://support.viavisolutions.com http://www.viavisolutions.com/en/services-and-support/support/technical-assistance Additional information For more detailed information, contact us at TAC@viavisolutions.com...

  • Page 100: Faqs

    Initially on ONX-CATV/DSL, this was done intentionally to prevent a discrepancy between the rate that CPE devices are provisioned for and the rate that is measured by our throughput test, so a legacy from MSOs/CATV. NSC-200 User Guide 22162977 July 2022...

  • Page 101: Gpon And Xgspon

    The laser of the VIAVI XGSPON SFP+ is Class 1 What ODN class are the VIAVI PON SFPs? The ODN Class of the VIAVI GPON SFP is Class B+ The ODN Class of the VIAVI XGSPON SFP is Class N1...

  • Page 102: Specifications

    Speed Test up to 10 Gbps RJ-45, 1G Ethernet SFP TWAMP Reflector (Optional) TWAMP Light Reflector support RJ-45, 1G Ethernet SFP, 10G Ethernet SFP+ Port/L2/L3 Loopback (Optional) Port Loopback and Source specific VIAVI Loopback support NSC-200 User Guide 22162977 July 2022...
  • Page 103 Test Results Delay, Upstream and Downstream Bit Rates User Interface Communication Interface Bluetooth v5.0 Mobile Tech app Smart Device Support Android 8 or newer (recommendation) iOS 12 or newer VIAVI Instrument Support ONX-580, ONX-CATV NSC-200 User Guide July 2022 22162977...
  • Page 104 4000 m max DC Input Power 15V @ 3A, USB-C Power Delivery (PD) 32 W/hr Li-Ion rechargeable battery Battery Field replaceable Battery Life 1-day typical usage Charge Port USB-C USB Host Port USB-A (USB 3.0) NSC-200 User Guide 22162977 July 2022...

  • Page 105: Ordering Information

    NSC TrueSpeed (RFC-6349) over 2.5/5/10GE port up to Speed Tests 2Gbps NSC-SPEEDTEST-2G NSC Ookla Speedtest over 1+1/2.5/5/10GE ports up to 2Gbps NSC-SPEEDCHECK-2G NSC SpeedCheck over 2.5/5/10GE port up to 2Gbps NSC-IPERF-2G NSC iPerf Test over 2.5/5/10GE port up to 2Gbps NSC-200 User Guide July 2022 22162977...
  • Page 106 NSC GPON SFP (ONT Emulation) NSC-SFP-XGSPON NSC XGSPON SFP+ (ONT Emulation) Optional Accessory NSC-CAR-CHARGER NSC Car Charger with Cable Replacement Parts NSC-BATTERY NSC Battery NSC-CHARGER NSC Charger with Cable NSC-STRAP NSC Hand Strap NSC-CASE NSC Carrying Case NSC-200 User Guide 22162977 July 2022...
