Viavi NSC-100 Quick Card User Manual

Network & Service Companion (NSC-100/200)
QUICK CARD
OneCheck WiFi Ookla Speedtest and Ping
This quick card describes how to run an Ookla Speedtest and Ping a DNS Server using
the NSC-100 or NSC-200 Network & Service Companion OneCheck WiFi test.
• Mobile Device (Smartphone or Tablet) with VIAVI Mobile Tech App
• Network & Service Companion equipped with the following:
Software release V4.1.5 or greater
o
NSC-OC-WIFI option for OneCheck WiFi testing
o
NSC-SPEEDTEST option for up to 1 Gigabit Ethernet testing
o

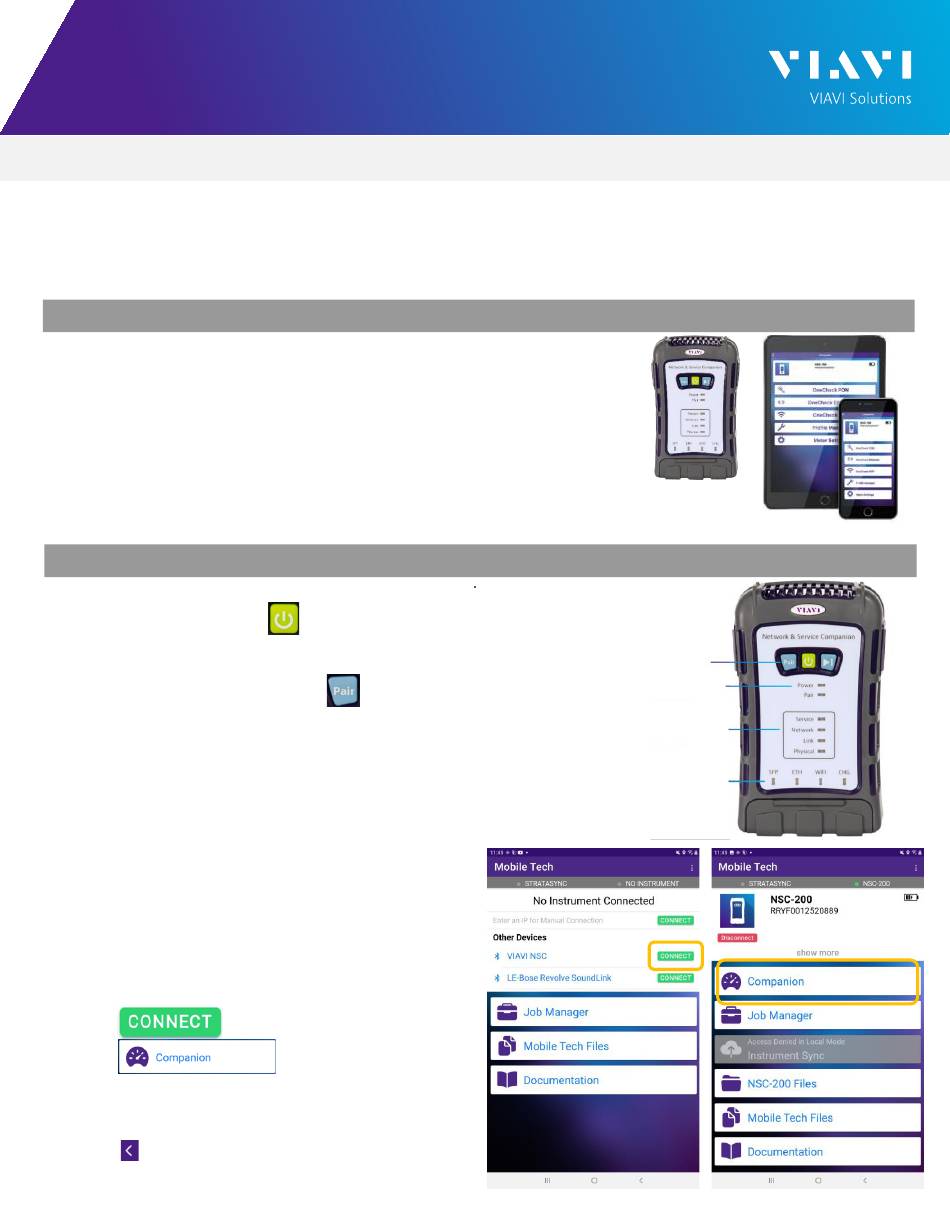

PA I R I N G T H E N S C TO Y O U R M O B I L E D E V I C E
On the Network & Service Companion:
Press the Power button
1.
The Power indicator will turn solid green when the
NSC is on.
Press and hold the Pair button
2.
for 3 seconds to enter pairing mode. The blue
Pair indicator blinks.
On the Mobile Device:
Go to the Settings menu, enable Bluetooth, and
1.
scan for available devices.
Pair with VIAVI NSC.
2.
Launch the VIAVI Mobile Tech App:
3.
If you are using Stratasync for Asset and
1.
Report Management, tap LOGIN WITH
INSTRUMENT, enter your Tech ID, and tap
LOGIN when prompted.
If you don't use Stratsync, tap LOCAL MODE.
2.
Press
4.
Press
5.
menu. You can now control the instrument
through the Mobile Tech App and
run all tests on the Companion.
Press to exit Job View.
6.
Network & Service Companion
to turn on the unit.
on the NSC
to connect to VIAVI NSC.
to view the Companion
Power and Pair buttons
Power and Pair Indicators
Service and Network Indicators

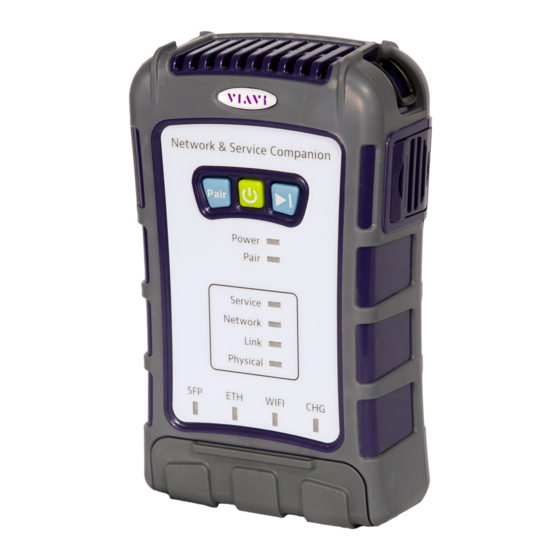

Figure 2: Front View
Figure 3: Mobile Tech App
