Viavi NSC-100 Quick Card User Manual

Network & Service Companion (NSC-100/200)
QUICK CARD
Ethernet Layer 2 Traffic Loopback
This quick card describes how to set the NSC-100 or NSC-200 Network & Service
Companion (NSC) up as a Layer 2 Loopback device for another VIAVI test instrument.
• Mobile Device (Smartphone or Tablet) with VIAVI Mobile Tech App
• Network & Service Companion equipped with the following:
Software release V4.2.19 or greater
o
o NSC-LOOPBACK-1G option for up to 1 Gigabit Ethernet loopback
NSC-LOOPBACK-10G option for 10 Gigabit Ethernet loopback
o
NSC-OPTICAL ETHERNET for loopback using the SFP port
o
• Optical Transceiver supporting the line rate to be tested:
NSC-SFP-ELEC-10G 10G Electrical Ethernet SFP+
o
NSC-SFP-ELEC-1-2.5-5-10G 1G, 2.5G, 5G and 10G Electrical Ethernet SFP+
o
NSC-SFP-ELEC-AUTO-10G 2.5G, 5G and 10G Auto-neg Electrical Ethernet SFP+
o
NSC-SFP-850-1G-10G 1G and 10G Optical Ethernet SFP+ 850 nm SR
o
NSC-SFP-1310-1G-10G 1G and 10G Optical Ethernet SFP+ 1310 nm LR
o
NSC-SFP-1550-1G-10G 1G and 10G Optical Ethernet SFP+ 1550 nm ER
o
• Cables to match the optical transceiver and the line under test
• Fiber optic inspection microscope (P5000i or FiberChek Probe)
• Fiber optic cleaning supplies
PA I R I N G T H E N S C TO Y O U R M O B I L E D E V I C E
On the Network & Service Companion:
Press the Power button
1.
The Power indicator will turn solid green when
the NSC is on.
Press and hold the Pair button
2.
for 3 seconds to enter pairing mode. The blue
Pair indicator blinks.
Network & Service Companion
to turn on the unit.
on the NSC
VIAVI//Public

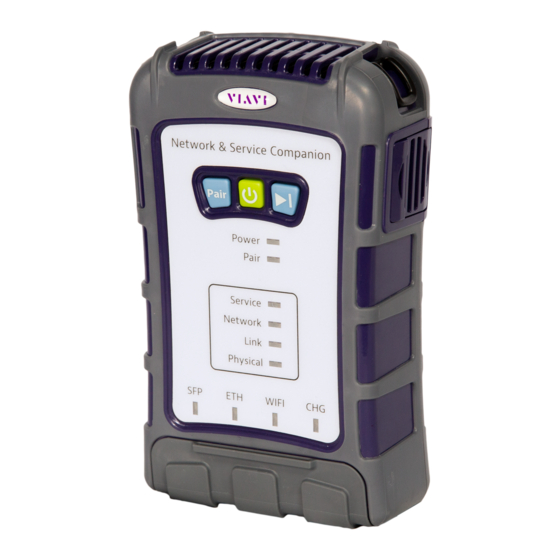

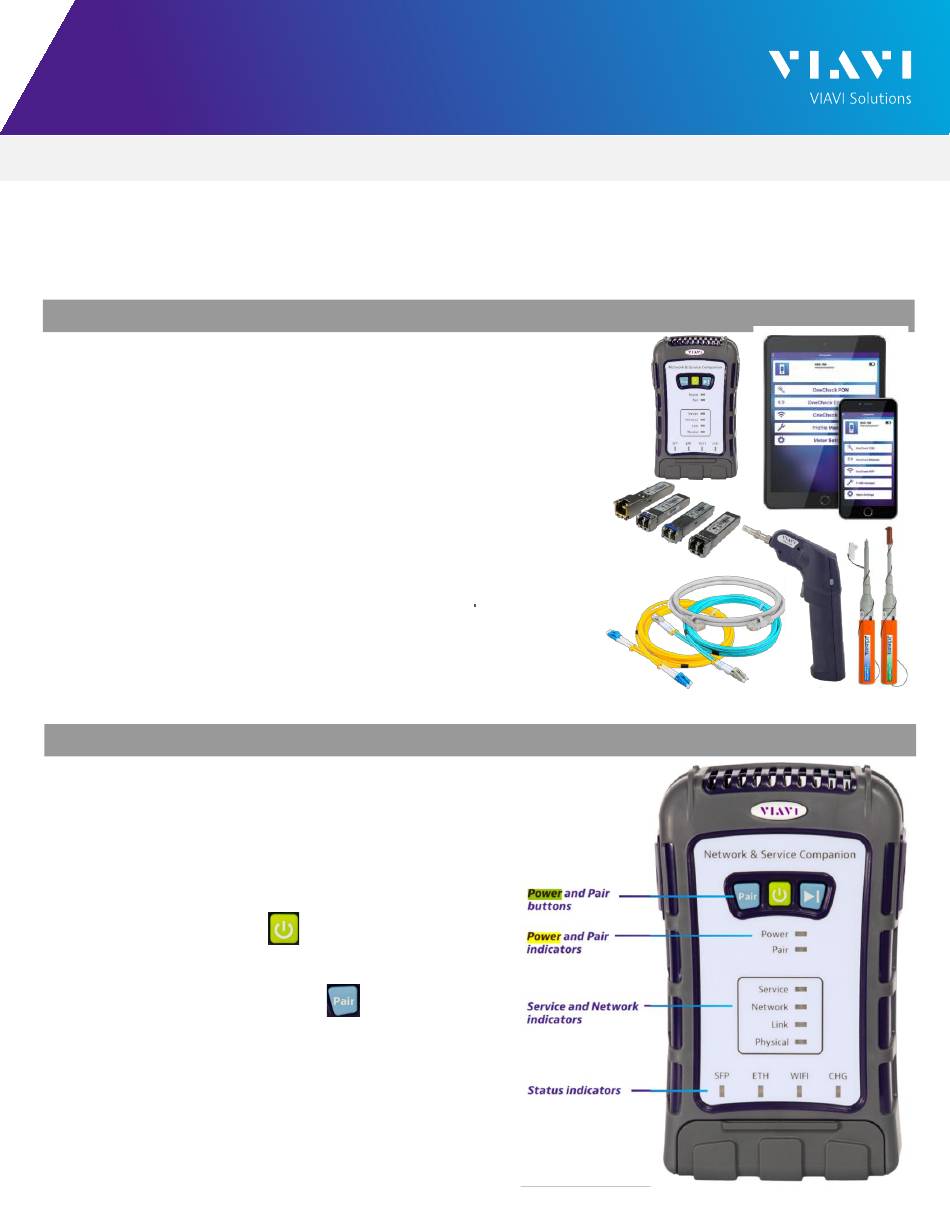

Figure 1: Equipment Requirements
