Operation
AC Current Measurements
1) Set the Function switch to the ACA range.
2) Press the jaw trigger and clamp around,
fully enclosing a single conductor.
Do not allow a gap between the two halves of the jaw.

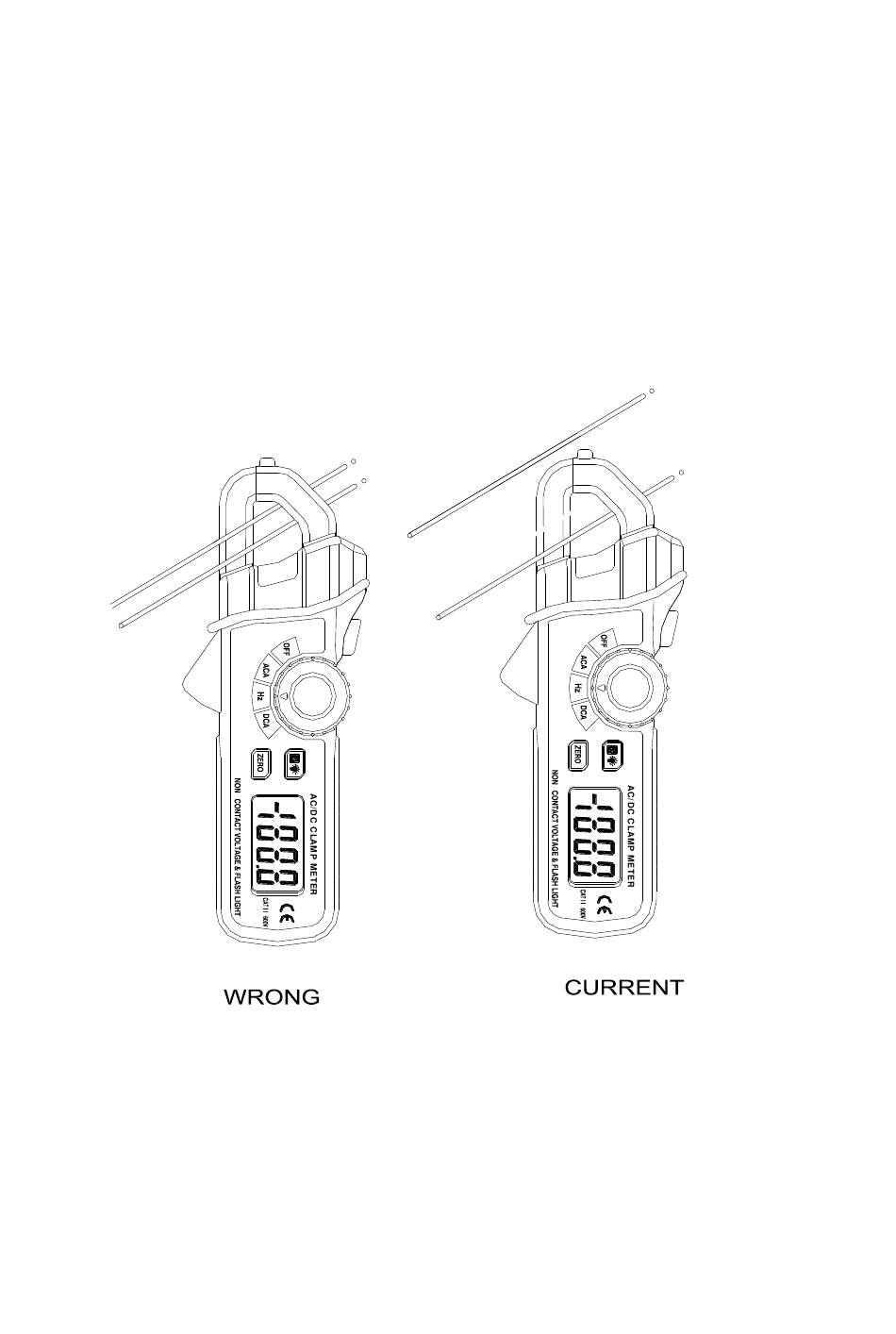

Refer to the diagram at right for
the correct way to enclose a single conductor.
3) Read the ACA value on the LCD.
DC Current Measurements
1) Set the Function switch to the DCA range.
2) Press the ZERO key to null the meter display.
3) Press the Trigger to open the current sense Jaw.
4
