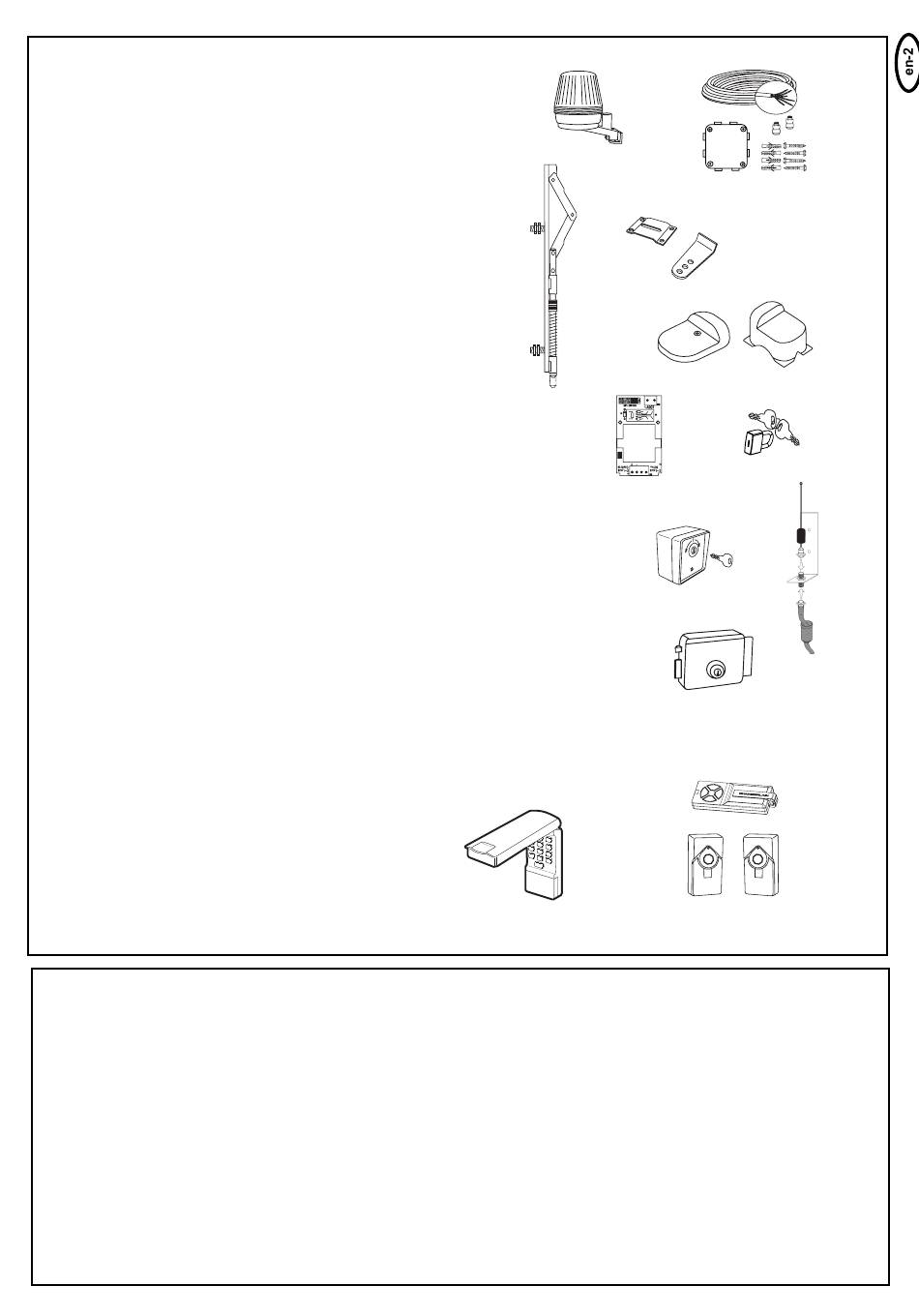

Optional accessories
1. Flashing lamp
2. ECK7
3. . Pfeilerbeschl
041ASWG-0092, 041ASWG-0090
55124VO (2 keys per lock)
4. Padlock
203285 (12 Volts)
5. . E-lock
6. Trafo for E-lock
7. Floor locking
8 Stops for gates
9. External antenna
10. Remote control
11. Photocells
12. Key switch
13. Wireless keypad
BEFORE YOU BEGIN
Leave room on the side of the motor for arms and installation work. Make sure to leave sufficient space.
Windload: Even light wind may cause the motor to reverse (safety-reverse) as the forces effecting the gate are very high. This applies especially
to solid panel gates.
Note: An E-lock in combination with a floor locking device should always be installed in order to relieve the motor. In extreme cases strong wind
may bend fittings and door and /or damage the motor .
There are many important factors when deciding on the correct motor. Assuming a well functioning gate, the initial force is the most difficult
moment. When the gate is moving it generally requires a considerably smaller amount of force.
Gate Size: Gate size is an important factor. Wind can slow down gate or distort it, leading to higher amount of required force.
Gate weight: Specification of gate weight represents only a rough parameter, which can vary according to actual demand. Operation is
important.
Influence of temperature: Low outdoor temperatures can impede or even prevent starting torque (ground deformation etc.). High outdoor
temperatures can lead to premature initiation of temperature protection (approx. 135°)
Attention: Motors are not designed to run continuously (continuous operation). The motor warms up and can reach a temperature at which it
shuts down until operating temperature is reached again. Outside temperature and gate represent important parameters for actual operating
duration.
FLA1-LED
Kit for cable extension of one
installation unit. Consists of 7 m of
cable 6-pole with identical colours,
distribution box IP44, cable screw joints
and fastening material
2 pieces with large 4-hole baseplate
207399
203339 (in combination with E-lock)
203315 standard
203322 high
041ASWG-ANT
TX4RUNI
771REV
41REV
8747EML
1
3
7
6
12
5
10
13
2
8
4
9
3x
11
