Atlas IED DA-PM8GD Install Sheet

Introduction
AtlasIED Dante™ PoE speakers consist of a speaker, amplifier, control board, and a Dante interface. The DA-PM8GD amplifier can produce up to
15-watts RMS of power in single channel mode or up to 2 x 10-watts in dual channel mode with IEEE 802.3at compliant PoE+ switches and 10-watts
single channel mode or 2 x 5-watts in dual channel mode with PoE power. Interconnection is via a top panel mounted female RJ-45 connector. All
models are compatible with the Audinate
EQ, Level Control, and Masking with room tuning EQ. All controls are done via the AtlasIED IP Discovery and Control software. Through this software,
the active IP speaker can be discovered on the network with the ability to custom name each speaker with a location tag for system management. The
AtlasIED control software features an audible ping-me locator making it convenient to physically locate the speaker. System tuning can be done on an
Individual speaker or by an assigned group.
Dante Overview
Audinate created Dante, is an uncompressed, multi-channel digital media networking technology, with near-zero latency and synchronization. Hundreds
of Dante-enabled products are available from many manufacturers, enabling you to mix other Dante-enabled devices from multiple manufacturers.
One cable does it all. Dante does away with heavy, expensive analog or multicore cabling, replacing it with low-cost, widely available CAT5e or CAT6
cable for a simple, lightweight, and economical solution. Dante integrates media and control for your entire system over a single, standard IP network.
Dante systems can easily scale from a simple pairing of a console to a computer, to large capacity networks running thousands of audio channels.
Because Dante uses logical routes instead of physical point-to-point connections, the network can be expanded and reconfigured at any time with just
a few mouse clicks.
Since the signal audio is transmitted digitally, common analog challenges like interference from other electrical equipment, crosstalk between cables,
or signal degradation over long cable runs is not a problem. Setting up Dante networks is easy, even the most complex networks can be set up and
configured quickly and easily with Dante, making system integration simple. Dante automatically handles the technical complexities.
Signal routing and system configuration with Dante is fast, simple, and incredibly flexible. Dante Controller™ is a powerful software application that
manages devices on the network. Setting up a Dante network is typically just a matter of plugging devices into an Ethernet switch and connecting
a computer to the network. All Dante devices are automatically discovered and displayed in Dante Controller, so a system can be up and running in
seconds.
Visit www.audinate.com for details or to learn more on using Dante.

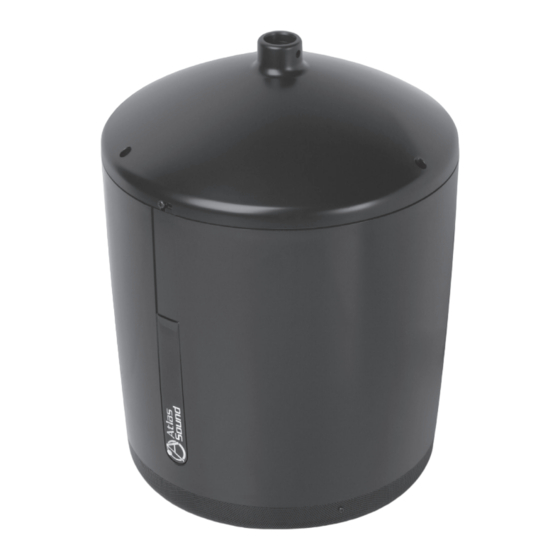

DA-PM8GD
Dante PoE Pendent Mount Speaker Install Sheet
