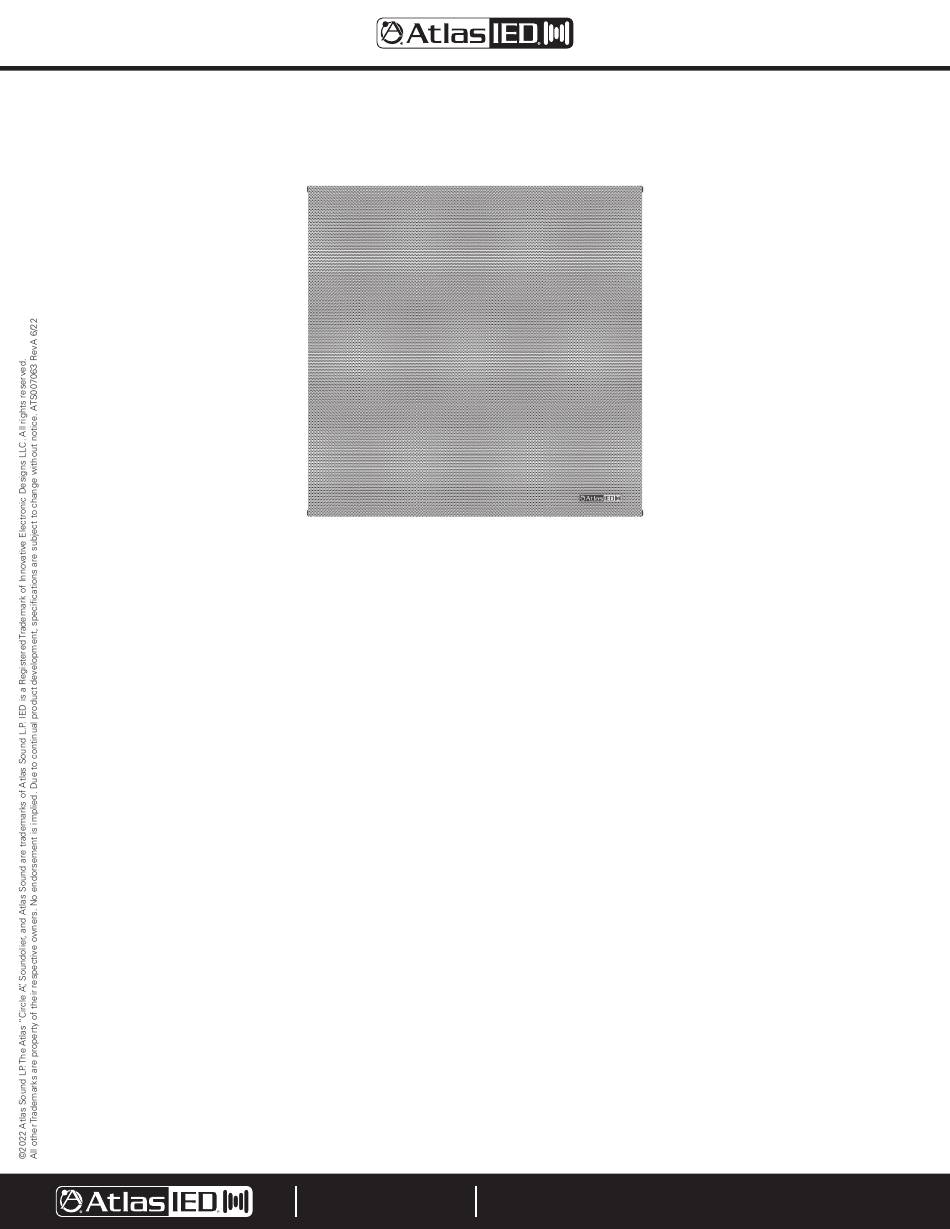

Atlas IED DA-22SYS Install Sheet

Indoor 2' x 2' Suspended Ceiling Mount Dante PoE IP Speaker Install Sheet
Introduction

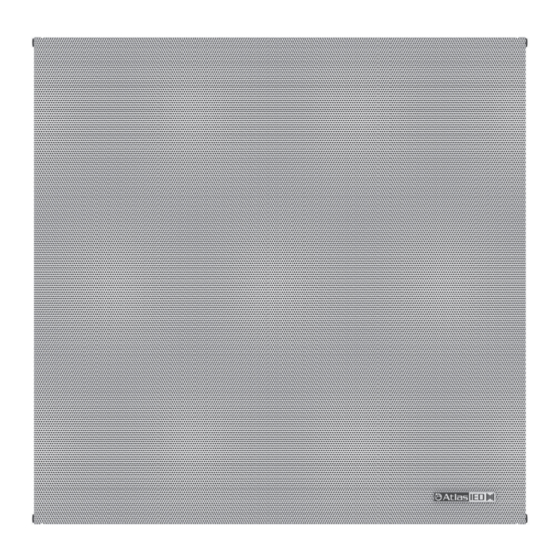

AtlasIED DA-22SYS is a 2' x 2' suspended ceiling mount IP PoE amplified loudspeaker featuring the Audinate
DA-22SYS speakers consist of a factory assembled speaker and baffle with PCB amplifier / control board. The DA-22SYS amplifier is capable of
producing up to 15-watts RMS of amplification in single channel mode or up to 2 x 10-watts in dual channel mode with IEEE 802.3at compliant PoE
switches and 10-watts single channel mode or 2 x 5-watts in dual channel mode with PoE power. Interconnection is via a top panel mounted female
RJ-45 connector. All models are compatible with Audinate's Dante digital audio transport platform.
The DA-22SYS features user configurable amplifier modes, Input EQ, Level Control, and Masking with room tuning EQ. All controls are done via
the AtlasIED IP Discovery and Control software. Through this software, the active IP speaker can be discovered on the network with the ability to
custom name each speaker with a location tag for system management. The AtlasIED control software features an audible ping-me locator making it
convenient to physically locate the speaker. System tuning can be done on an individual speaker or by an assigned group.
The DA-22SYS ships configured for single speaker use. It can also be configured to Dual mode to drive a second passive speaker of the same type.
When the DA-22SYS amplifier is configured to Dual mode the amplifier power is split between the DA-22SYS and the 8-ohm passive speaker. The
secondary speaker output shares the same factory EQ settings as the DA-22SYS. Amplifier levels can be adjusted separately.
The DA-22SYS includes a top cable access plate that is easily removed for installation. The cover also completely conceals the Ethernet cable
terminations.
Dante Overview
Audinate created Dante, is an uncompressed, multi-channel digital media networking technology, with near-zero latency and synchronization. Hundreds
of Dante-enabled products are available from many manufacturers, enabling you to mix other Dante-enabled devices from multiple manufacturers.
One cable does it all. Dante does away with heavy, expensive analog or multicore cabling, replacing it with low-cost, widely available CAT5e or CAT6
cable for a simple, lightweight, and economical solution. Dante integrates media and control for your entire system over a single, standard IP network.
Dante systems can easily scale from a simple pairing of a console to a computer, to large capacity networks running thousands of audio channels.
Because Dante uses logical routes instead of physical point-to-point connections, the network can be expanded and reconfigured at any time with just
a few mouse clicks.
Since the signal audio is transmitted digitally, common analog challenges like interference from other electrical equipment, crosstalk between cables,
or signal degradation over long cable runs is not a problem. Setting up Dante networks is easy, even the most complex networks can be set up and
configured quickly and easily with Dante, making system integration simple. Dante automatically handles the technical complexities.
Signal routing and system configuration with Dante is fast, simple, and incredibly flexible. Dante Controller is a powerful software application that
manages devices on the network. Setting up a Dante network is typically just a matter of plugging devices into an Ethernet switch and connecting
DA-22SYS
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Dante™ digital audio transport platform.
®
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
AtlasIED.com
