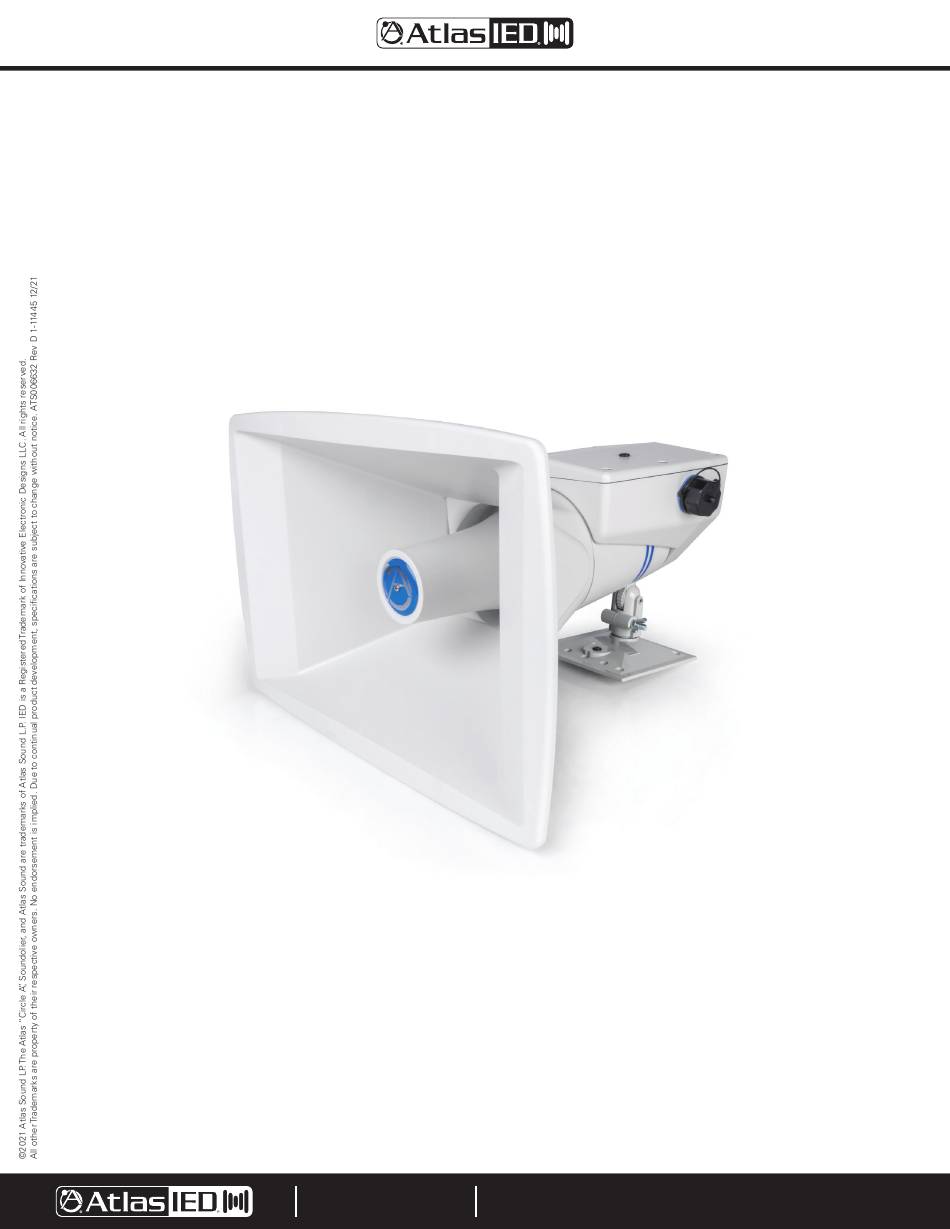

- Page 1 IP-APX Installation Sheet 9701 TAYLORSVILLE ROAD 9701 TAYLORSVILLE ROAD 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 TELEPHONE: (502) 267-7436 TELEPHONE: (502) 267-7436 AtlasIED.com AtlasIED.com AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. LOUISVILLE, KENTUCKY 40299 U.S.A. ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM SUPPORT@ATLASIED.COM SUPPORT@ATLASIED.COM...
- Page 2 Strap or Clamp Mount to a Pole or Beam: • Attach base directly to pole or beam via a 1/2" hose clamp or suitable banding strap. A beam clamp may also be utilized with the IP-APX base. • Make sure that the strap, banding, or clamp is correct for the installation location/ environment.
- Page 3 3. Wire ethernet cable to horn • Remove cap to RJ45 connector. • Take external RJ45 connector from accessory package, unscrew the top cap and remove the middle plug. • Take main body of external RJ45 connector and screw onto connector on enclosure. •...
- Page 4 Plug ethernet cable into connector and push lug into main connector body. • Take screw cap and screw onto end of main connector. 4. Wiring a secondary speaker to the IP-APX Note: If wiring secondary speaker, the secondary speaker needs to be set at 8 Ω. •...
- Page 5 Note: The lid of the enclosure will have to be removed to access the service button. Remove screws from lid using #10 torx screwdriver To factory reset using the service button on the PCB board, press the service button for 10 seconds. The IP-APX will announce that it is being restored to factory defauly settings.
- Page 6 FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules.
- Page 7 Limited Warranty All products manufactured by AtlasIED are warranted to the original dealer / installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems;...
