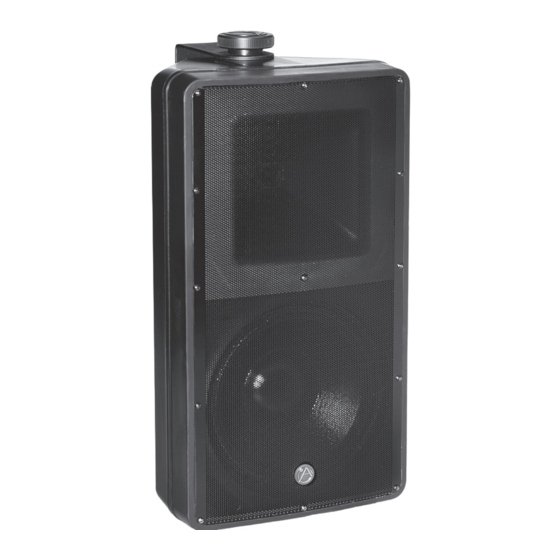

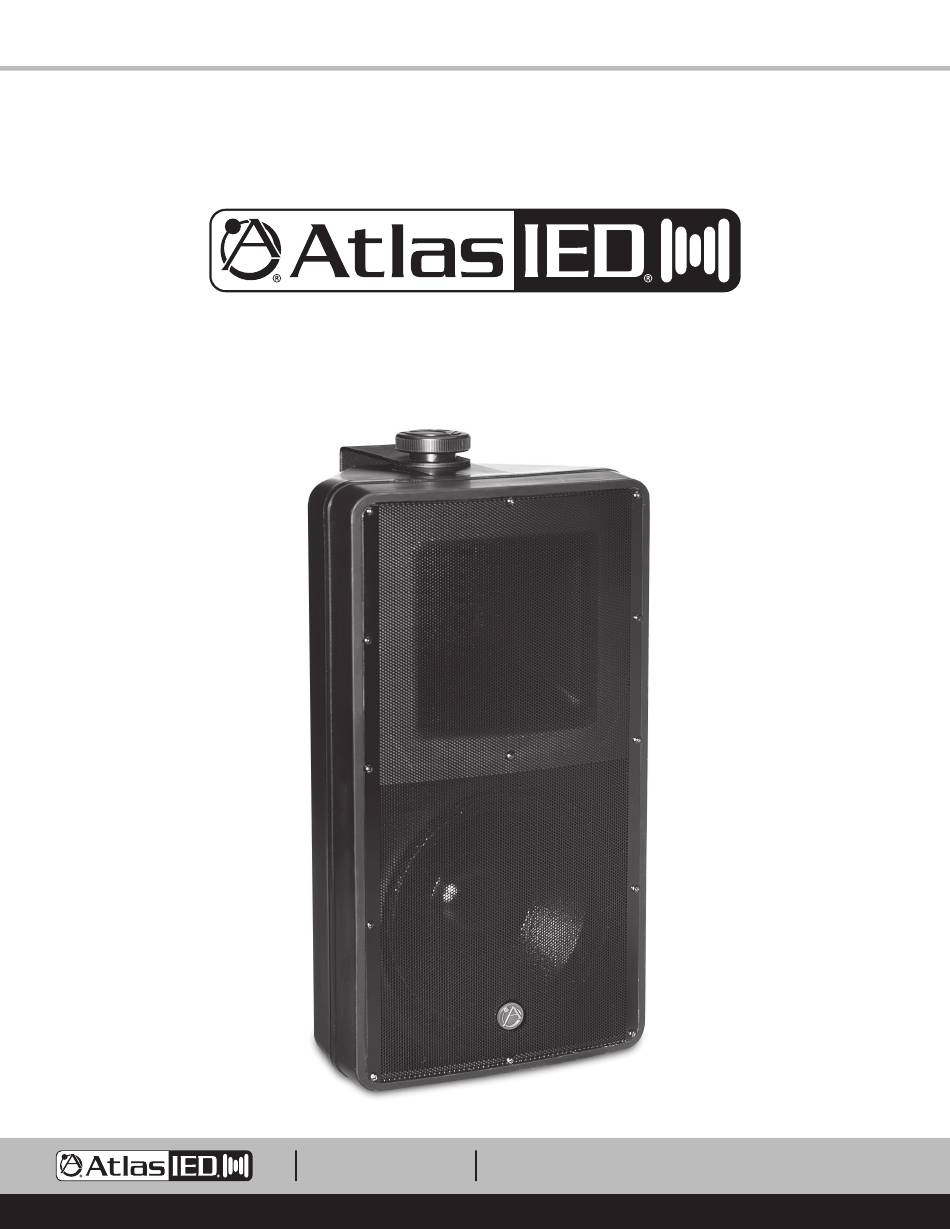

- Page 1 SM82TEN-B / SM82TEN-WH Surface Mount Loudspeakers 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 1 –...
-
Page 2: Table Of Contents
SM82TEN Owner’s Manual Table of Contents Introduction ..........................................3 Key Features ........................................... 3 Placement ..........................................3 Installation ..........................................4 8Ω Connections ........................................5 Line Matching Transformer Connections ................................6 Maintenance and Care ......................................6 Specifications ......................................... 7 Dimensional Drawings ......................................8 Warranty .......................................... -
Page 3: Introduction
SM82TEN Owner’s Manual Introduction Thank you for purchasing the AtlasIED SM82TEN Strategy Series surface mount loudspeakers. The SM82TEN loudspeaker is designed to provide high ® fidelity, long life and installation convenience for commercial and residential applications. Their weather-resistant properties make them perfect for use indoors or out. -
Page 4: Installation
SM82TEN Owner’s Manual Installation Fixed Install The SM82TEN loudspeaker includes a versatile yet simple U-bracket designed to provide easy vertical or horizontal installation on almost any surface. The loudspeaker may be installed using screws or bolts placed through the “Keyhole” shaped holes in the mounting bracket. The center "... -
Page 5: 8Ω Connections
SM82TEN Owner’s Manual Terminal Cover The SM82TEN includes a weather-resistant terminal cover with grommet. Remove cover to gain access to the barrier strip. Feed service line through grommet before terminating to barrier strip. Secure terminal cover (with grommet) over barrier strip when complete. The weather-resistant cover and grommet must be used in all applications. -
Page 6: Line Matching Transformer Connections
SM82TEN Owner’s Manual Line Matching Transformer Connections The SM82TEN includes a two pole barrier strip housed by a weather-resistant cover. The barrier strip is designed to accept either spade connectors or bare wire. AtlasIED recommends using #18AWG for wire runs up to 500', #16AWG for wire runs of 500' to 1000', and #14AWG for runs over 1000'. The weather-resistant cover will except a "... -
Page 7: Specifications
SM82TEN Owner’s Manual System Type Surface Mount Loudspeaker Operation Mode Non-Powered Passive Operating Range (-10dB) 74.5Hz - 20.00kHz Frequency Response (±5dB) 58Hz - 20kHz Usable Low Frequency Limit (3dB Down Point) 51Hz Input Sensitivity at 1W / 4M (EN54-24) 72dB 150 W Continuous, 300 W Program Max Input Ratings (8Ω) 34.6 Volts RMS, 49 Volts Peak... -
Page 8: Dimensional Drawings
SM82TEN Owner’s Manual Dimensional Drawings 9" 8.45" (228.6mm) (214.6mm) 0.1" (3.18mm) 18.43" 16.5" 12.13" 8.75" (468.2mm) (419mm) (308.10mm) (222.25mm) 1.3" (33.02mm) 2.15" (54.6mm) 10.33" (262.3mm) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 8 –... - Page 9 SM82TEN Owner’s Manual Frequency Response 80.00 75.00 70.00 65.00 60.00 55.00 50.00 45.00 40.00 35.00 30.00 25.00 20.00 1000 1250 1600 2000 2500 3150 4000 5000 6300 8000 10000 Frequency (Hz) 4 meters 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A.
- Page 10 SM82TEN Owner’s Manual Horizontal (Figure A) Rotated right from the reference axis of the speaker Rotated left from the reference axis of the speaker (6 dB drop angle) (6 dB drop angle) Center Octave Band (Hz) 85° 90° 1000 50° 60°...
- Page 11 SM82TEN Owner’s Manual Notes UK Representative: POLAR Audio Limited Unit 3, Clayton Manor, Victoria Gardens, 0843 2821 Burgess Hill, RH15 9NB, UK Atlas Sound LP john.midgley@polar.uk.com 1601 Jack McKay Blvd. Ennis, TX 75119 USA DoP No. 3005 EU representative: EN 54-24:2008 Mitek Europe Loudspeaker for voice alarm systems for fire detection and fire alarm systems for buildings.
-
Page 12: Warranty
Limited Warranty All products manufactured by AtlasIED are warranted to the original dealer / installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems;...
