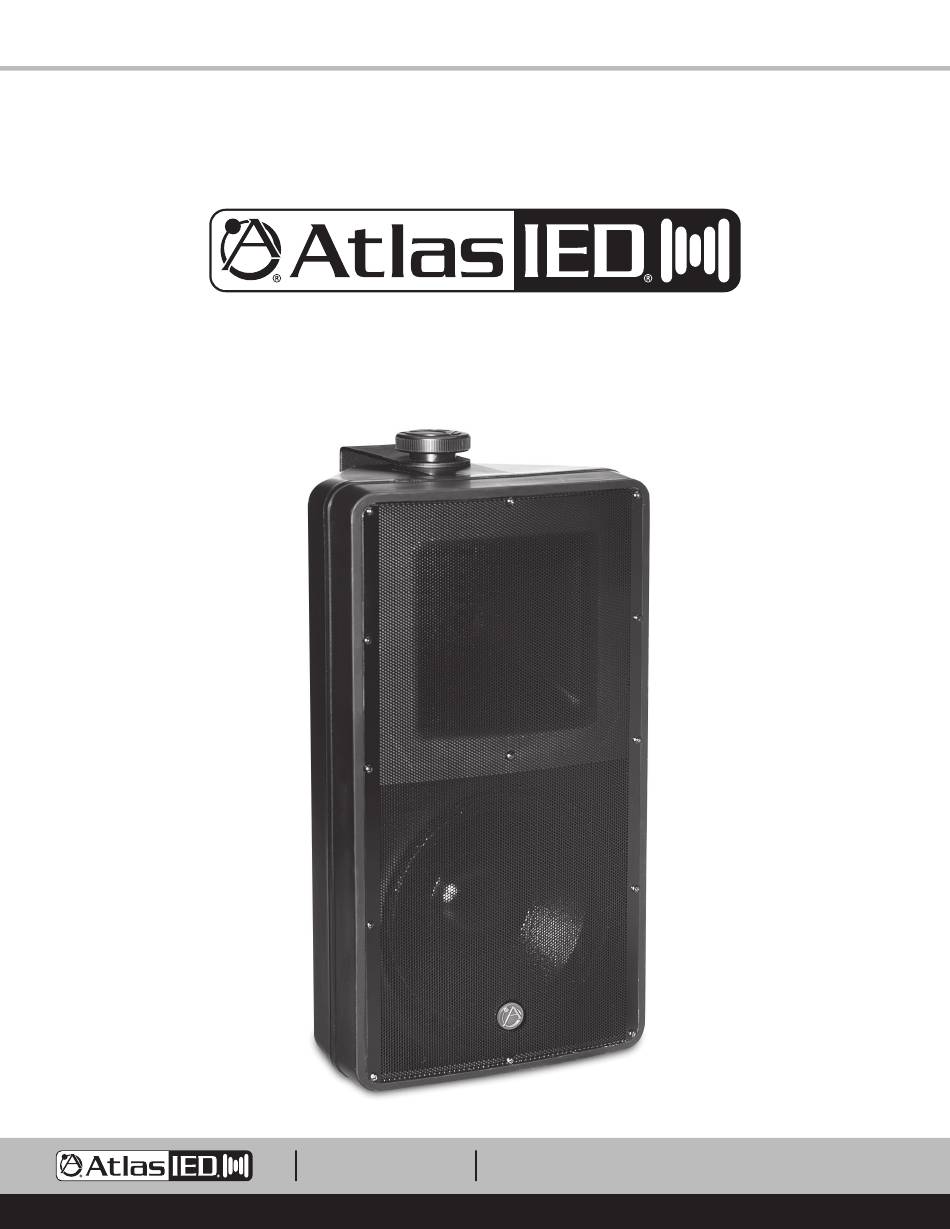

- Page 1 SM82TUC-B / SM82TUC-WH Surface Mount Loudspeakers 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 1 –...
-
Page 2: Table Of Contents
SM Series Owner’s Manual Table of Contents Introduction ........................................... 3 Key Features .......................................... 3 Placement ..........................................3 Installation ..........................................4 Line Matching Transformer Connections ................................5 Maintenance and Care ......................................5 Specifications ......................................... 6 Dimensional Drawings ......................................7 Warranty ..........................................8 1601 JACK MCKAY BLVD. -
Page 3: Introduction

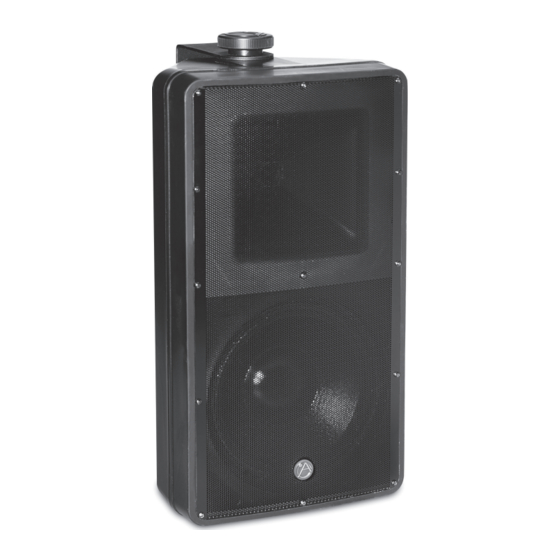

SM Series Owner’s Manual Introduction Thank you for purchasing the AtlasIED SM82TUC Strategy Series surface mount loudspeakers. The SM82TUC loudspeaker is designed to provide high ® fidelity, long life and installation convenience for commercial and residential applications. Their weather-resistant properties make them perfect for use indoors or out. -
Page 4: Installation
SM Series Owner’s Manual Installation Fixed Install The SM82TUC loudspeaker includes a versatile yet simple U-bracket designed to provide easy vertical or horizontal installation on almost any surface. The loudspeaker may be installed using screws or bolts placed through the “Keyhole” shaped holes in the mounting bracket. The center "... -
Page 5: Line Matching Transformer Connections
SM Series Owner’s Manual Line Matching Transformer Connections The SM82TUC includes a two pole barrier strip housed by a weather-resistant cover. The barrier strip is designed to accept either spade connectors or bare wire. AtlasIED recommends using #18AWG for wire runs up to 500’, #16AWG for wire runs of 500’ to 1000’, and #14AWG for runs over 1000’, Building codes often dictate that speaker wire must be plenum rated and run in conduit. -
Page 6: Specifications
SM Series Owner’s Manual System Type Surface Mount Loudspeaker Frequency Response 65Hz - 20kHz (±3dB) Usable Low Frequency Limit (10dB Down Point) 55Hz Transformer Taps - 70V 1.9W, 3.8W, 7 .5W, 15W, 30W, 60W Transformer Taps - 100V 1.9W, 3.8W, 7 .5W, 15W, 30W... -
Page 7: Dimensional Drawings
SM Series Owner’s Manual Dimensional Drawings 9" (228.60mm) 8.5" (216.17mm) 0.1" (3.18mm) 18.4" 16.5" 12.13" 8.75" (467.86mm) (418.99mm) (308.10mm) (222.25mm) 1.3" (33.02mm) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 7 –... -
Page 8: Warranty
Service Should your SM Series loudspeaker require service, please contact the AtlasIED warranty department at 1-877-689-8055, ext. 277 or www.atlasied.com/support to obtain an RA number.
