Atlas IED IPX Series Frequently Asked Questions

How do I find the IP address for an AtlasIED IPX endpoint (Speaker or Zone Controller)?

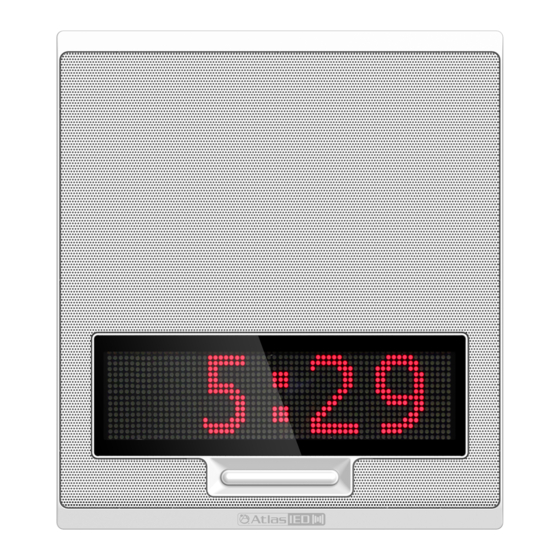

• If a display is present the IP address will scroll across the screen after it boots.
• If a speaker is present, press the service switch located on the device PCB for one second and the endpoint will audibly announce its IP address.
See installation guide for exact service switch location.
• If using a Zone Controller that has a speaker connected to either the line out or speaker out, pressing the service button for one second will
audibly announce its IP address.
How do I access the WebUI (Web User Interface) for an AtlasIED IPX endpoint (Speaker or Zone Controller)?
Using a supported web browser, visit the IP address for the endpoint. The default login for an IPX endpoint is "admin" for both the username and
password. The login credentials can be changed on the Administration page of the WebUI.
How do I get an AtlasIED IPX endpoint (Speaker or Zone Controller) to register with InformaCast
AtlasIED IPX IP endpoints can register with InformaCast
• Service Location Protocol (SLP), a protocol that uses the multicast address of 239.255.255.253. The AtlasIED IPX endpoint will send an SLP
discovery request. Any InformaCast
for registration. If registration fails, verify that multicast is enabled and routed on all intermediate switches and routers.
• Statically assigned server URL. To configure, access the IPX endpoint's WebUI, input the InformaCast
within the InformaCast Service section on the Services tab and save. This change requires a reboot to become active.
®
How do I get an AtlasIED IPX endpoint (Speaker or Zone Controller) to register with Syn-Apps
AtlasIED IPX endpoints can register with SA-Announce
• DHCP Option 72. Configuration method varies by DHCP server product. The AtlasIED IPX endpoint lists Option 72 in its DHCP request. The
response should contain the IP address of the SA-Announce
• Statically assigned Notifier Address. To configure, access the IPX endpoint's WebUI, input the Syn-Apps
field within the Syn-Apps Service section on the Services tab and save. This change requires a reboot to become active.
®

Do I need to set NTP on an IPX IP Endpoint?

InformaCast and GLOBALCOM (GCK) provide time services. Enabling NTP in those environments is not supported. If using either Syn-Apps
®
SA-Announce ® or Revolution ® , it is necessary to enable NTP .
• To configure, access the IPX endpoint's WebUI, input the address of the NTP server within the Server field within the NTP service section on the
Services tab and save. Click on the Services tab, then scroll down to the NTP service area, fill in the server field with the IP address of the NTP
server, set the time zone, click save. This change requires a reboot to become active.

How do I Configure SIP?

The following information is required to configure SIP on the IPX endpoint:
1. Host - SIP server address
2. User ID - typically the extension
3. Registrar ID - Registrar address. Normally the same as the Host
4. Auth ID - Digest Username
5. Auth Secret - Digest Password
6. Digest Realm
Note: Some SIP providers require an outbound proxy address and port.
IPX Series
Endpoint Frequently Asked Questions
using one of the following methods:
®
servers that receive this request will send a unicast response containing configuration information necessary
®
® or Revolution ®
or Revolution
®
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
?
®
®
?
®
using one of the following methods:
server.
®
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
server IP address into the Server URL field
server IP address in the Notifier Address
®
AtlasIED.com
®
