TE Connectivity 408-8569 Instruction Sheet

Lower Insert
Manual Arbor
Frame Assembly
91085-2 (Ref)
1. INTRODUCTION
This instruction sheet covers the installation and setup
procedures for Connector-Specific Kit 1490479-1. The
connector-specific kit is used in conjunction with Base
Assembly Universal Arbor Tool 768338-4 and Manual
Arbor Frame Assembly 91085-2 (see Figure 1), or
Pneumatic Auto-Cycle Unit 91112-3 to terminate
0.64 mm [.025 in.] Plug and Receptacle Connectors to
0.64 mm [.025 in.] centerline flat ribbon cable.
Refer to Instruction Sheets 408-7777 (supplied with
Manual Arbor Frame Assembly) and 408-6732
(supplied with Pneumatic Auto-Cycle Unit) for tooling
©2012 Tyco Electronics Corporation, a TE Connectivity Ltd. company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
Connector-Specific Kit 1490479-1
for 0.64 mm [.025 in.]
Plug and Receptacle Connectors

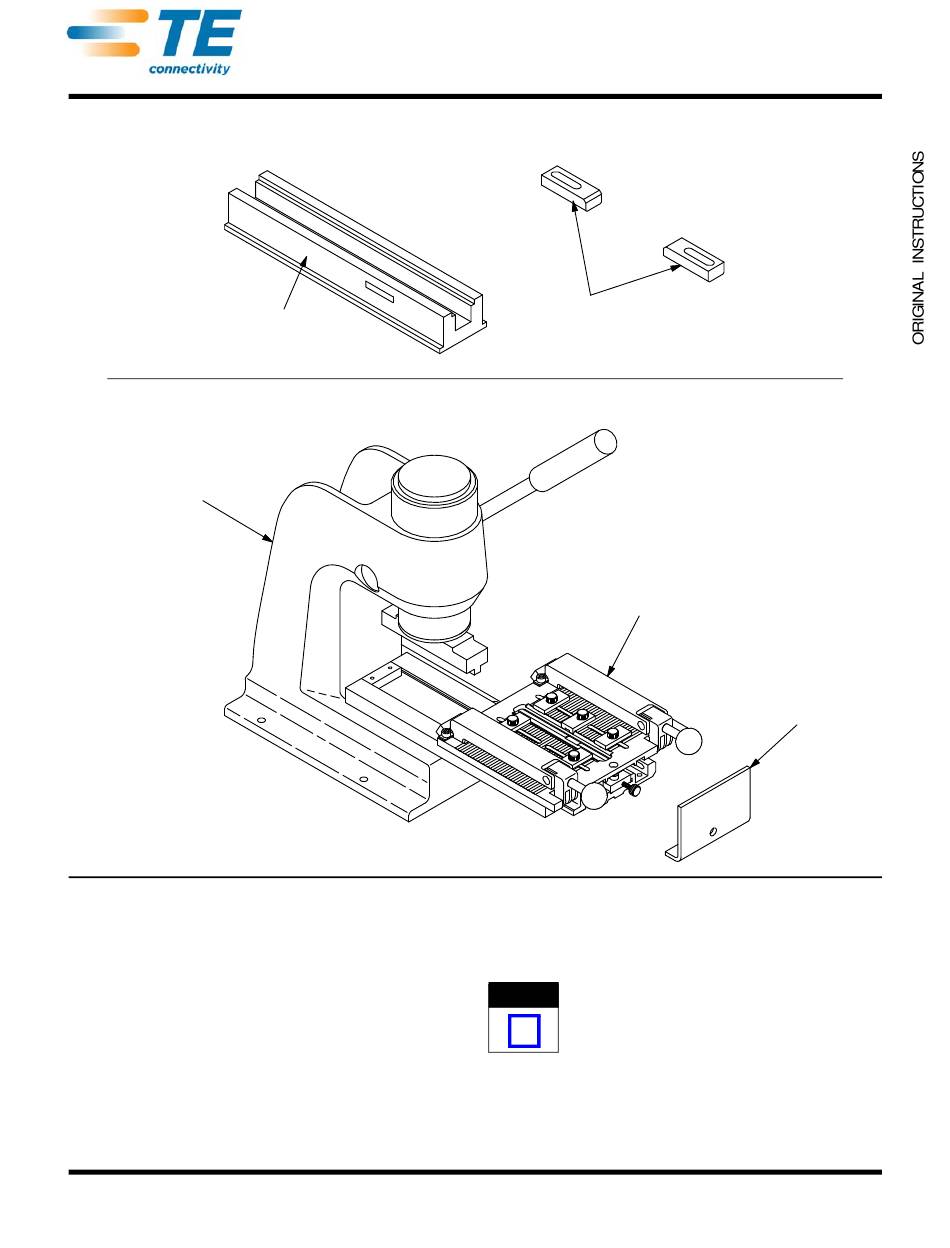

Connector-Specific Kit 1490479-1
Typical Application Tooling
Figure 1
information. Installation and termination procedures
for the Base Assembly Universal Arbor Tool are
available in Instruction Sheet 408-4201.
2. DESCRIPTION
The connector-specific kit features a lower insert and
two locators. The lower insert and locators properly
align the connector for termination.
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Locators
Base Assembly
Universal Arbor Tool
768338-4 (Ref)
Dimensions on this sheet are in millimeters
NOTE
[followed by inches in brackets]. Figures and
illustrations are for reference only and are not
i
drawn to scale.
(Figure 1)
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408-8569
26 MAR 12 Rev A
Front Guard
(Ref)
1 of 4
