PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools
are intended for occasional use and low volume applications. A wide selection of powered application
equipment for extended-use, production operations is available.
0.5 – 1.5
Crimping Chamber Markings
Indenter Jaw
Locator
Anvil Jaw
Tool
Part Number
Crimping Chamber Marking
0.5-1.5
675930-1
1.0-2.5
INTRODUCTION

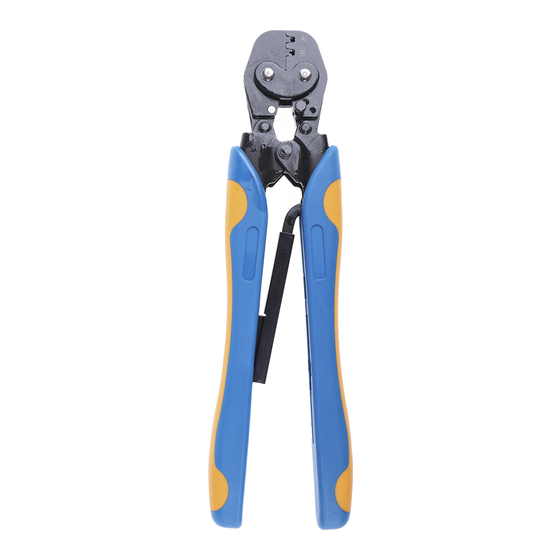

CERTI-CRIMP Hand Crimping Tool 675930-1 is designed to crimp FASTON* .187 Series receptacles onto wire
sizes 0.5-1.5 mm² and 1.0-2.5 mm². Refer to Figure 1.
NOTE
Read these instructions thoroughly before using the hand tool.
NOTE
Dimensions in this instruction sheet are in metric units [with U.S. customary units in brackets]. Figures and illustrations are for
reference only and are not drawn to scale.
Reasons for reissue of this instruction sheet are provided in Section 7, REVISION SUMMARY.
© 2017 TE Connectivity Ltd. family of companies.
All Rights Reserved.
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
CERTI-CRIMP* Hand Crimping Tool;
PN 675930-1
1.0 – 2.5
Insulation Adjustment Pin
Link
Terminal
Strip PN
Loose Piece PN
160430
160433
160429
160431

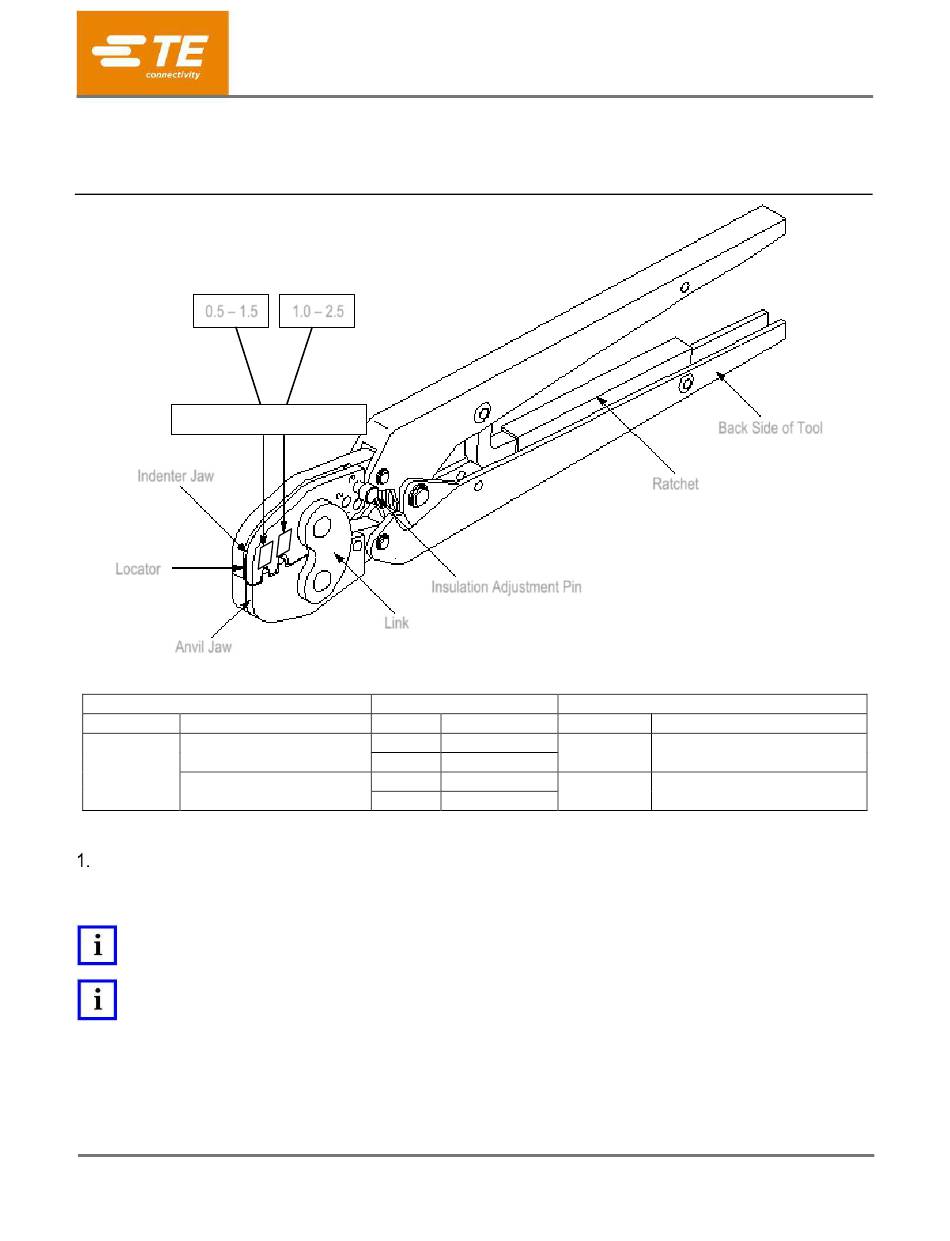

Figure 1
PRODUCT INFORMATION 1-800-522-6752
Ratchet
Range, mm²
160490
0.5-1.5
160493
160491
1.0-2.5
160492
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
408-35023
20 MAR 17 Rev A
Back Side of Tool
Wire
Insulation Diameter Range, mm
2.3-3.3
3.1-3.8
1 of 5
Advertisement
Related Manuals for TE Connectivity CERTI-CRIMP
Summary of Contents for TE Connectivity CERTI-CRIMP
- Page 1 1 of 5 All Rights Reserved. For latest revision and Regional Customer Service, visit our website at www.te.com. *Trademark TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
-
Page 2: Crimping Procedure
408-35023 DESCRIPTION Each hand tool features two jaws (anvil and indenter), a locator, an insulation adjustment pin, and a ratchet. When closed, the jaws form two crimping chambers each marked on the BACK side of the tool with the letters A and B. -
Page 3: Maintenance And Inspection Procedure
408-35023 4. Holding the receptacle in place, squeeze the tool handles together just enough to hold the receptacle in the jaws. CAUTION Squeezing the handles together excessively will deform the wire barrel. 5. Insert the stripped wire into the receptacle insulation barrel and through the wire slot of the tool locator until the wire insulation butts against the locator. -
Page 4: Section 6, Replacement And Repair
408-35023 5.2. Periodic Inspection Lubrication Lubricate all pins, pivot points, and bearing surfaces with SAE 20 motor oil as follows: Tool used in daily production - lubricate daily Tool used daily (occasional) - lubricate weekly Tool used weekly - lubricate monthly Wipe excess oil from tool, particularly from crimping area. -
Page 5: Replacement Parts
Order replacement parts through your TE Representative, or call 1-800-526-5142, or send a facsimile of your purchase order to 717-986-7605, or write CUSTOMER SERVICE (038-035) TE CONNECTIVITY CORPORATION PO BOX 3608 HARRISBURG PA 17105-3608 For tool evaluation and customer repair service, call 1-800-526-5136.
