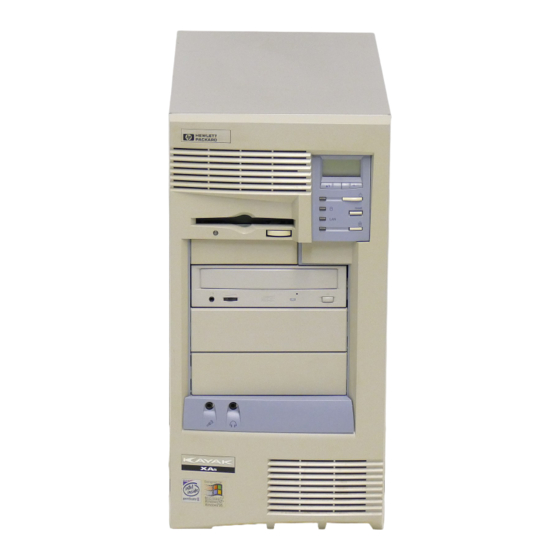

HP Kayak XA-s 02xx PC Workstation -
Installing Accessories In Your
HP Minitower PC Workstation
Explains in detail how to install accessories, such as extra memory,
accessory boards, and additional disk drives.

Advertisement

Table of Contents
loading

Related Manuals for HP Kayak XA-s02

Summary of Contents for HP Kayak XA-s02

  • Page 1 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Explains in detail how to install accessories, such as extra memory, accessory boards, and additional disk drives.

  • Page 2: Supported Hp Accessories

    HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Supported HP Accessories Supported HP Accessories Internal Mass Storage Devices Pack of five pairs of rails for Front Access Devices: - 3.5-inch disk drives (D3566A) - 5.25-inch disk drives (D2880A)

  • Page 3: Removing And Replacing The Cover

    HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Removing and Replacing the Cover WARNING For your safety, never remove the PC Workstation’s cover without first removing the power cord from the power outlet, and any connection to a telecommunications network.
  • Page 4 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Removing and Replacing the Cover Replacing the Cover 1 Ensure that you have installed all your accessories and that all internal cables are properly connected and safely routed.
  • Page 5 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Intrusion Monitor Your PC Workstation is equipped with an intrusion monitor, which is located on the front of the PC Workstation, behind the Hardware Control Panel. It is designed to detect whether your PC Workstation...

  • Page 6: Moving The Power Supply

    HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Moving the Power Supply Moving the Power Supply 1 Disconnect the computer’s power cord and any telecommunications cable. 2 Remove the computer’s cover (see page 3).
  • Page 7 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation WARNING To avoid electrical shock, do not open the power supply. 6 Slide the power supply out of the computer until it stops—the power supply unit remains connected to the computer.

  • Page 8: Installing Memory

    HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing Memory Installing Memory Main Memory Modules If you need more main memory to run your application software, you can install up to 768 MB of memory in three DIMM slots.
  • Page 9 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation 8 Slide the memory module into the slot at 90° to the system board (with the cutouts furthest away from the processor). 9 Firmly press the memory module completely into the connector until the retaining clips click into position.

  • Page 10: Installing Mass Storage Devices

    HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing Mass Storage Devices Installing Mass Storage Devices The computer has two internal shelves (for hard disk drives) and five front-access drive shelves (for front-access drives and hard disk drives).

  • Page 11: Connecting Devices

    HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Connecting Devices If you add an IDE Zip drive, hard disk drive, CD-ROM drive, CD-RW drive, or tape drive, you need to connect it to power and data cables.
  • Page 12 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing Mass Storage Devices Installing a Hard This PC Workstation has integrated Dual Ultra ATA-33 IDE controllers and, on selected models, an Ultra SCSI interface board.
  • Page 13 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing a Hard Disk Drive in an Internal Shelf CAUTION Hard disk drives larger than one inch (1”) in height can only be housed in the lower internal shelf.
  • Page 14 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing Mass Storage Devices 8 Locate the appropriate data cable for the hard disk drive. IDE drives should be connected to a free IDE connector on the IDE cables (you can add up to four IDE devices).
  • Page 15 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing a Hard Disk Drive in a Front-Access Shelf 1 Disconnect the computer’s power cord and any telecommunications cable. 2 Remove the computer’s cover (see page 3).
  • Page 16 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing Mass Storage Devices 8 Slide the drive tray into the drive shelf and secure it. 9 Locate the appropriate data cable for the disk drive.
  • Page 17 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation 10 Connect the data and power cables to the rear of the device. (The connectors are shaped to go in one way only.) Data Cable 11 Slide the power supply back into position, and tighten the four self- retaining screws.
  • Page 18 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing Mass Storage Devices 3 If an error message appears, follow the instructions provided by the Error Message Utility. When prompted, press program. 4 Select the Advanced menu, and the IDE Devices submenu. In the Primary Master item, check that the details for the device have been correctly detected by the Setup program.
  • Page 19 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation 4 If installing a drive in a 5.25-inch wide shelf, remove the drive tray and put it in a safe place. Secure the drive in position 5 Slide the drive into the shelf.
  • Page 20 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing Mass Storage Devices 9 Slide the power supply back into position, and tighten the four self- retaining screws. 10 Remove the plastic panel from the cover by pulling the panel from the left and unhinging its right-hand side.

  • Page 21: Installing Accessory Boards

    HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing Accessory Boards CAUTION Static electricity can damage electronic components. Turn OFF all equipment. Don’t let your clothes touch the accessory. To equalize the static electricity, rest the accessory bag on top of the computer while you are removing the accessory from the bag.
  • Page 22 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing Accessory Boards 4 Unscrew and remove the slot cover. Store it in a safe place. If the slot cover is tight, loosen the screws on the adjacent slots.
  • Page 23 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation 7 Secure the board by replacing the slot cover screw. If you loosened the screws on adjacent slots, remember to tighten them. Secure the board...

  • Page 24: Installing A Processor

    HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing a Processor Installing a Processor Some operating systems support a second processor for enhanced performance. Contact your authorized reseller for up-to-date information. NOTE The Setup program provides an option to disable the second processor.
  • Page 25 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation 7 The system board has two processor sockets and a VRM slot for each processor. If you are changing the existing processor, remove it from the socket by squeezing the tabs at the top and bottom of the processor and gently pulling the processor away from the system board.
  • Page 26 HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation Installing a Processor Completing the 1 Verify that the system board bus speed switches are correctly configured for the processor. Installation of a Processor NOTE If two processors are installed, both must operate at the same bus speed and processor speed.
