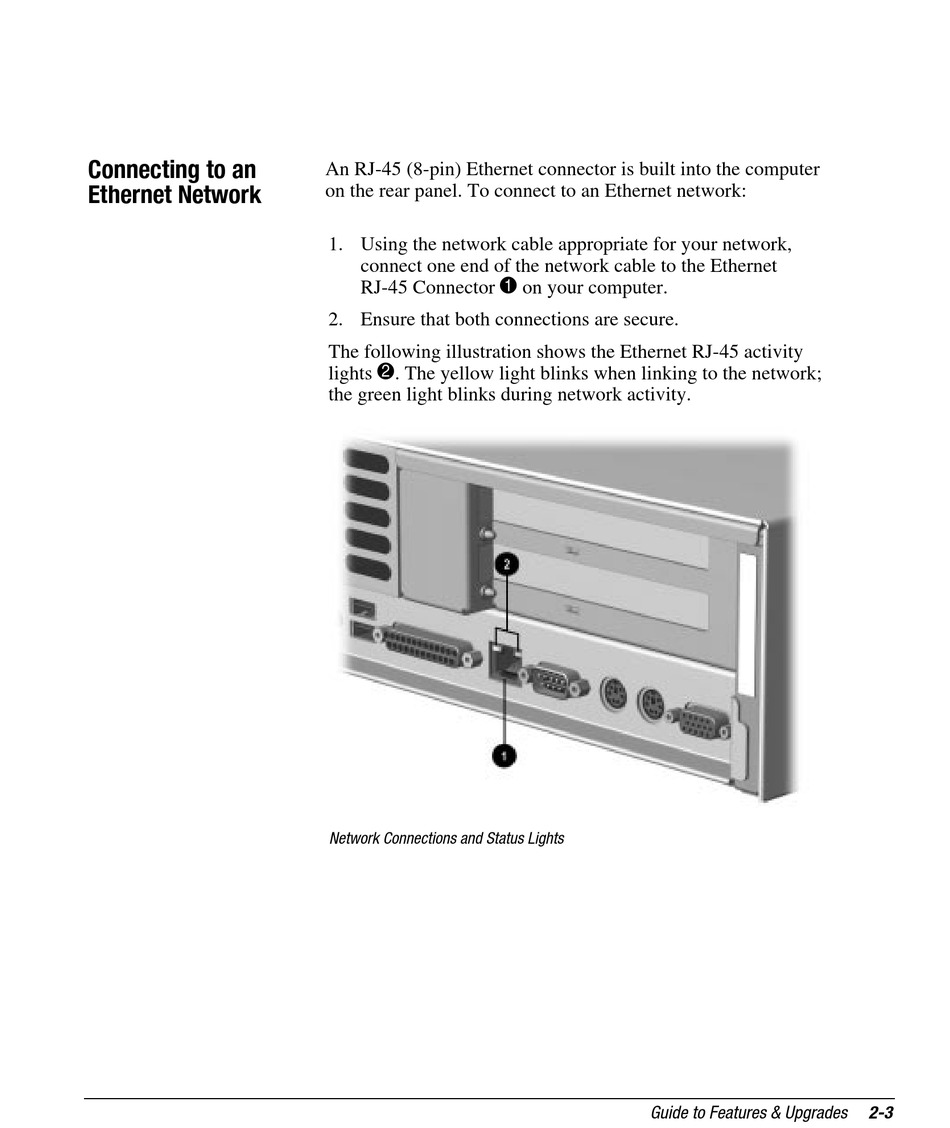

Connecting to an
Ethernet Network
An RJ-45 (8-pin) Ethernet connector is built into the computer
on the rear panel. To connect to an Ethernet network:
1. Using the network cable appropriate for your network,
connect one end of the network cable to the Ethernet
RJ-45 Connector 1 on your computer.
2. Ensure that both connections are secure.
The following illustration shows the Ethernet RJ-45 activity
lights 2. The yellow light blinks when linking to the network;
the green light blinks during network activity.
Network Connections and Status Lights
Guide to Features & Upgrades 2-3
