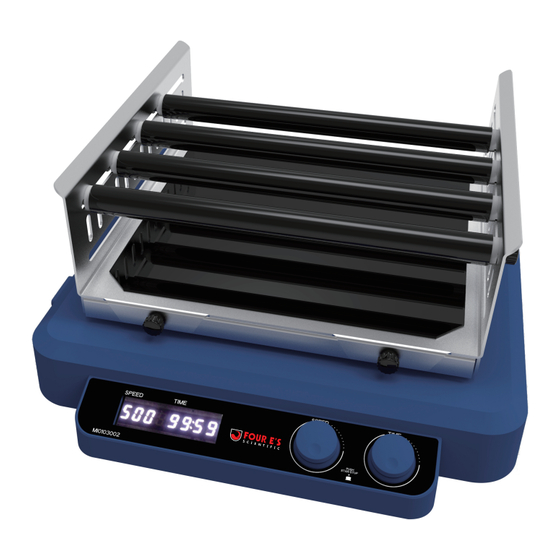

- Page 1 Operating Instructions Oribital and Li near Shaker MI0103002...
-
Page 2: Table Of Contents
Contents Preface Service Warranty 1. Safety Instr uctions 2. Inspection 2.1 Receiving Inspection 2.2 Listing of Items 3. Control and Display 3.1 Control 3.2 Display 4. Operation 5. Faults 6. Maintenance and Cleaning 7. Associated standards and regulations 8. Specifications 9. -
Page 3: Preface
Preface Please read the user mannual carefully before use, and follow all operating and safety instructions! Technical specifications and outline are subject to change without prior notice Service When help needed , you can always contact us for technical support. Please provide the customer care representative with the following information: •... -
Page 4: Safety Instructions
1. Safety Instructions Warning ! • Read the operating instructions carefully before use. • Ensure that only trained staff works with the instrument. Protective ground contact ! • Ensure the socket must be grounded (protective ground contact) before use. • When working wear personal safety guards to avoid the risk of: - Splashing liquids - Broken glass containers •... -
Page 5: Inspection
2. Inspection 2.1 Receiving Inspection Unpack the instrument carefully and check for any damages which may happen during transport. If any damage happens, please contact us for technical support. Note: If there is any apparent damage to the system, please do not connect to the power line. 2.2 Listing of Items Items Main unit... -
Page 6: Display
Linear Shaking Orbital Shaking Timer control knob Speed control knob Power switch Time display Speed display 3.2 Display speed Dispaly Time Dispaly Display Descriptions Er 1 Means motor blocked . Er 2 Means motor overspeed. The displayed reading is for the set Display area value when it flashes and for the actual value when it stops flashing... -
Page 7: Operation
4. Operation • Place the instrument on a safe and stable platform ensure the required operating voltage and power supply voltage matched, and the socket must be earthed reliably. • Connect the power cable. • Switch ON instrument. • The instrument begins self-checking. •... -
Page 8: Maintenance And Cleaning
• Shaking suddenly stops. - Digital displays “Er 01”, indicate the failure of “motor blocked”. - Digital displays “Er 02”, indicate the failure of “motor overspeed” - Pressing the speed control knob or timer control knob first to stop shaking , and then restart shaking with less load.If shaking cannot start ,then repeat the process and gradually reduce load. -
Page 9: Associated Standards And Regulations
• If the instrument will not use for a long time, please switch it off and place it in a dry, cleans,room temperature and stable location. 7. Associated standards and regulations Construction in accordance with the following safety standards: EN 61010-1 UL 3101-1 CAN/CSA C22.2(1010-1) EN 61010-2-10... -
Page 10: Specifications
8. Specifications Items Specifications Model MI0103002 Shaking motion Orbital / Linear Motor type Brush less DC motor Max.load capacity with platform [kg] Orbital diameter [mm] Speed range [rpm] 30-500 Speed Display Digital Display Timer range 0-99Hr59Min Timer Display Digital Display... -
Page 11: Accessories
Descriptions MI0103002-101 MI0103002 Universal attachment MI0103002-102-1 MI0103002 Fixing clip attachment MI0103002-102a MI0103002 Fixing clip for flask volume 25 ml MI0103002-102b MI0103002 Fixing clip for flask volume 50 ml MI0103002-102c MI0103002 Fixing clip for flask volume 100 ml MI0103002 Fixing Clip...
