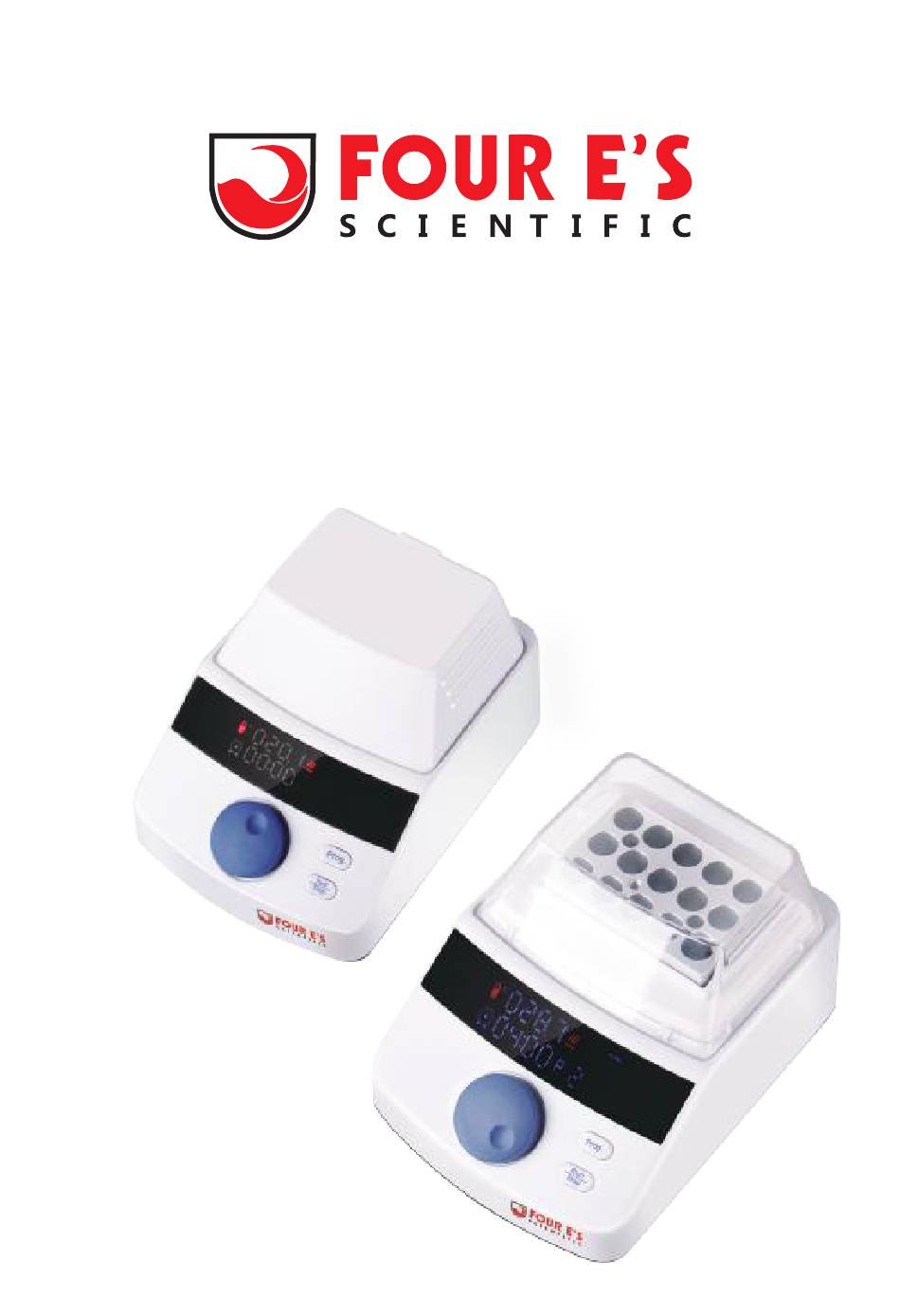

- Page 1 Operating Instructions Mini Dry Bath Incubator...
-
Page 2: Table Of Contents
Contents Safety Instructions Unpacking Correct Use Operation Temperature Calibration Maintenance and Cleaning Technical Data Warranty... -
Page 3: Safety Instructions
Safety Instructions • Read the operating instructions in full before starting up and follow the safety instructions. • Keep the operating instructions in a place where they can be accessed by everyone. • Ensure that only trained staff work with the appliance. •... - Page 4 • Beware of hazards due to: - Flammable materials - Combustible media with a low boiling temperature - Incorrect container size - Overfilling of media - Unsafe condition of container. • Only process media that will not react dangerously to the extra energy produced through processing.
-
Page 5: Unpacking
- Ensure that the base plate is kept clean. - Observe the minimum distances between the devices, between the device and the wall and above the assembly (min. 100 mm) >100mm >100mm (Fig. 1) Unpacking Please unpack the device carefully and check it for damage. It is important that any transport damage is detected when the device is unpacked. -
Page 6: Correct Use
Correct Use • Use - For heating media in block heaters • Range of use - Laboratories, Schools, Pharmacies and universities Operation (Fig. 2) Block LED Display “TEMP/TIMER” knob Power switch Power socket (DC 12V) - Page 7 • Temperature Setting The temperature setting can only be workable when the machine is powered on but not when it’s working. Short press the blue knob; the temperature value on the LED display will flash, and then set the temperature by horizontal rotation of the knob.
-
Page 8: Temperature Calibration
Temperature Calibration Each single instrument is calibrated before shipment. If there is deviation between the actual temperature and the displayed temperature for some reasons, you can do as follow to calibrate the unit again. 1. Long press the blue knob for more than 3 seconds and the system will be in the calibration mode. -
Page 9: Maintenance And Cleaning
8. Restart the machine after the calibration. Temperature Calibration Item Calibration Point Reading of the thermometer 40°C 60°C 80°C 100°C Maintenance and Cleaning The appliance is subject only to the natural wear and tear of components and their statistical failure rate. Use only cleansing agents which have been approved by us to clean our devices. -
Page 10: Technical Data
Technical Data Model TC0401005 TC0401006 Temperature Control Range RT + 5°C~100°C RT + 5°C~100°C Heating Lid Timing Range 0~99h59min 0~99h59min Temp. Control Accuracy ±0.5°C ±0.5°C Display Accuracy ±0.1°C ±0.1°C Heating Time (40°C to100°C Temp.) ≤15min ≤15min Input Power Dimension (mm)
