Summary of Contents for Four E's Scientific MI0102008

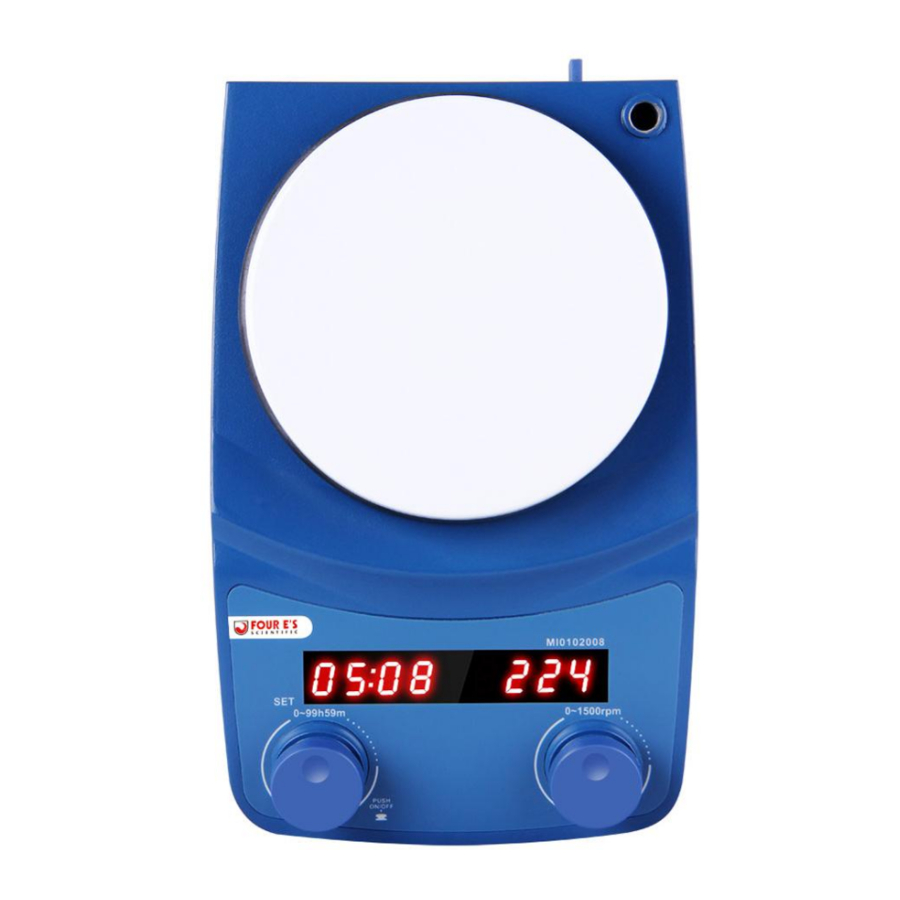

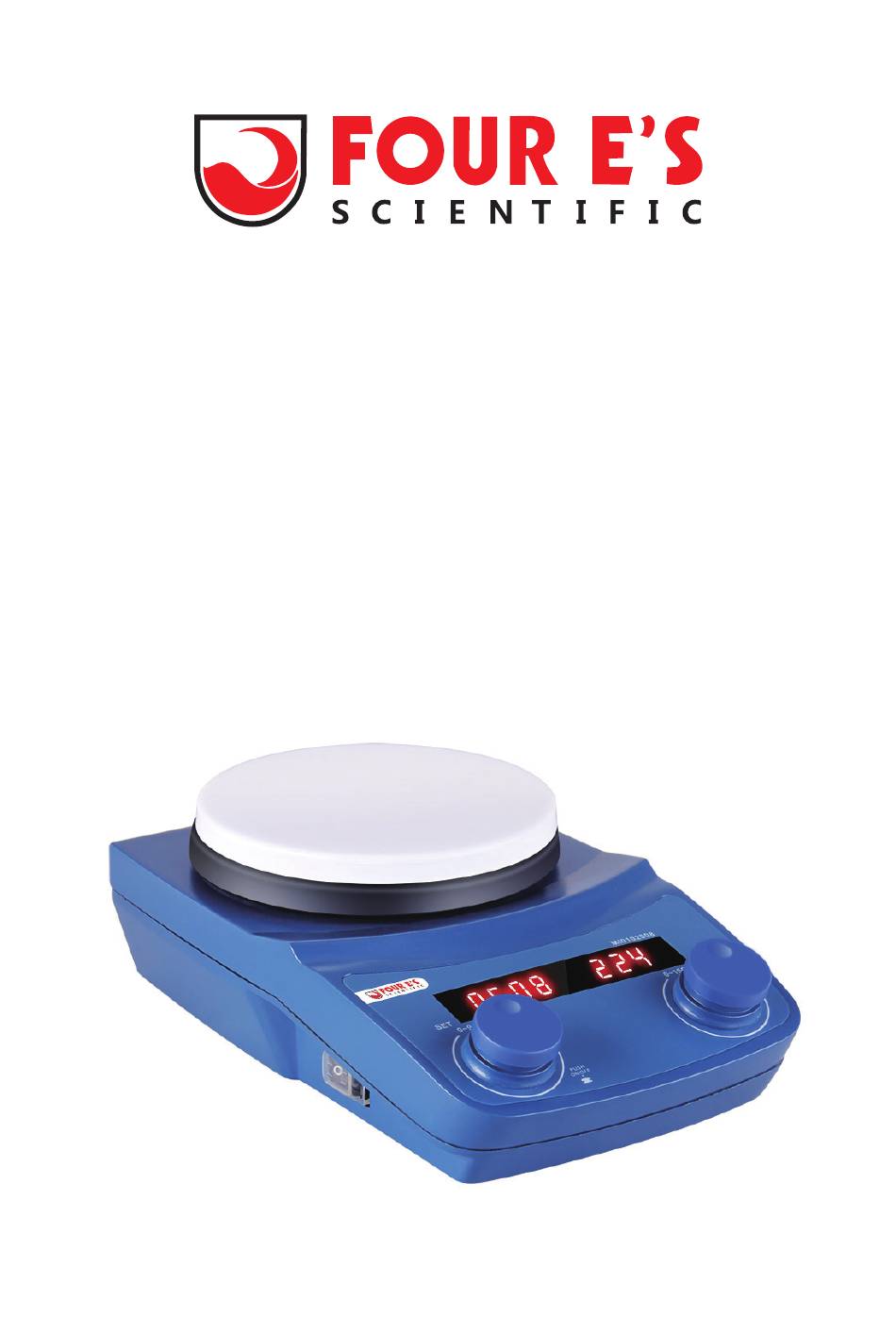

- Page 1 Operating Instructions 5 Inch LED Digital Magnetic Stirrer with Timer MI0102008...
-
Page 2: Table Of Contents
Contents Safety Instructions Inspection Control Trial run Timing Stirring Faults Error codes Maintenance Standards and regulations Specifications Warranty... -
Page 3: Safety Instructions
Safety Instructions For your protection • Read the operating instructions in full before starting up and follow the safety instructions when in use. • Ensure that only trained staff work with the device. • Socket must be earthed (protective ground contact) •... -
Page 4: Inspection
• Only process media that will not react dangerously to the extra energy produced in other ways, e.g. through light irradiation. • Accessories must be securely attached to the machine and can’t come off by themselves. • Always disconnect the plug before fitting accessories. •... -
Page 5: Control
Contents of package Items Main unit Power cable Screwdriver Magnetic stirring bar User Manual Control... - Page 6 Item Description Set the time by rotating the knob Knob for time Start/stop timing by pressing the setting knob Set the speed by rotating the knob Knob for speed Start/stop stirring by pressing the setting knob When timer function starts, it displays the remaining stirring Timer display time.
-
Page 7: Trial Run
Trial run • Make sure the required voltage corresponds to the mains voltage. • Ensure the socket must be properly grounded. • Switch on and start initializing. • Add sample into the container with an appropriate stirring bar. • Place the container on the working plate. •... -
Page 8: Stirring
Stirring Stirring is switched on / off by pressing the speed setting knob. The speed is set by rotating the knob in the range of 50-1500rpm. When powered on, it displays the set speed of last operation. Faults • The device can’t work when powered on - Check if the power line is connected properly - Check if the fuse is broken or loose •... -
Page 9: Standards And Regulations
Dyes isopropyl alcohol water containing tenside / Constructions materials isopropyl alcohol water containing tenside / Cosmetics isopropyl alcohol water containing tenside Foodstuffs water containing tenside Fuels Standards and regulations Construction in accordance with the following safety standards: EN 61010-1 UL 3101-1 CAN/CSA C22.2(1010-1) EN 61010-2-10 Construction in accordance with the following EMC standards:... -
Page 10: Specifications
Specifications Items MI0102008 Voltage [VAC] 200-240/100-120 Frequency [Hz] 50/60 Power [W] Stirring point position quantity Max. stirring quantity (H2O) [L] Max. magnetic bar [L x Φ, mm ] 55 x 10 Motor Type Brushless DC motor Max. power input of motor [W] Max. -
Page 11: Warranty
Warranty The instrument is warranted to be free from defects in materials and workmanship under normal use and service for a period of 24 months from the date of invoice. The warranty is extended only to the original purchaser. It doesn’t cover any worn out parts, nor apply to any damage by improper use, insufficient care or maintenance not carried out in accordance with the instructions in this operating manual.
