INSTRUCTION MANUAL
B·iRON 115
Nano B·iRON Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-iRON 115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc B-iRON 115

Summary of Contents for jbc B-iRON 115

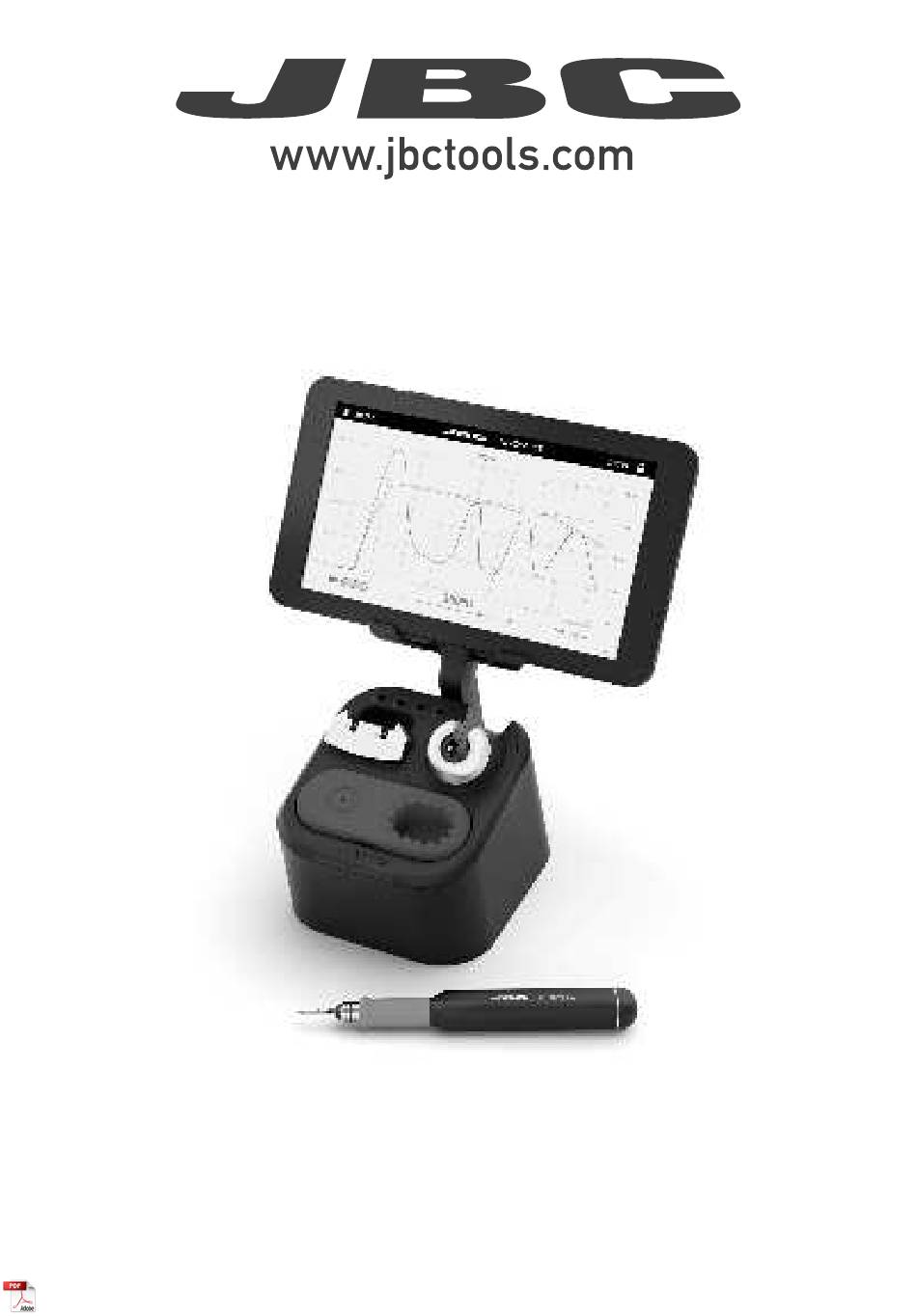

  • Page 1 INSTRUCTION MANUAL B·iRON 115 Nano B·iRON Station...

  • Page 2: Packing List

    This manual corresponds to the following references: Console included*: Console not included*: BI115UA BI115UQA 120 V - N. America, Taiwan 120 V - N. America, Taiwan BI115IA BI115IQA 230 V - India 230 V - India BI115A BI115QA 230 V - Europe 230 V - Europe BI115KA BI115KQA...

  • Page 3: Features And Connections

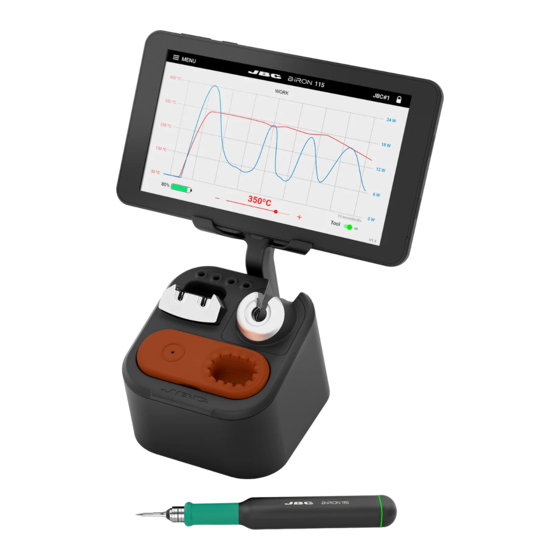

    Features and Connections Stand for B 115 Nano Tool Console Support Cartridge Storage Tool Stand and Charger Quick Tip Changer Brass Wool (inside) Antisplash Membrane Wiper B·iRON Console Note: for references without console blue tooth device like PC or mobile can be connected. B 115 Nano Tool Screw to...

  • Page 4: Quick Start

    Quick Start 1. Connection Connect the stand to the mains (100 - 240 V). 2. Cartridge Insertion and Charging Insert a cartridge into the tool (1) and place it into the charger on the stand (2). Note: Charge the tool completely (30 min) before using for the first time.
  • Page 5 The work screen shows the graph of the current tip temperature and the power supplied to the tip by moving the graph permantely to the left. Application Menu Tool Status Connected Tool Temperature and Power Grafics MENU JBC#1 WORK 24 W 450 ºC 18 W 350 ºC 12 W 250 ºC 150 ºC...

  • Page 6: Operation

    Operation The JBC Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases by 5. Work Charging and Hibernation...
  • Page 7 The automatic recording can be pause by tapping the screen at the grafic area. The automatic recording stops also when the tool stops working. While the automatic recording is stopped, you can get the temperature/power value in a concret point by tapping the graph on the tablet screen. JBC#1 MENU CHARGE 450 ºC 24 W 348ºC...

  • Page 8: Tip Cleaner

    Includes a temperature resistant wiper for removing excess solder by gently tapping or wiping the cartridge tip. If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder and than with Wiper the brass wool.
  • Page 9 Replacing Brass Wool 1. Lifting 2. Replacing Space Lift and remove the antisplash membrane. Replace the brass wool with a new one. Make sure that the brass wool is on the far left and that there is space for the wiper on the right. 3.

  • Page 10: Compatible Cartridges

    Quick Tip Changer Save time and change cartridges safely without switching the station off. 1. Removing 2. Inserting Place the handpiece in the Place the handpiece on top of extractor and pull to remove the new cartridge and press the cartridge. down slightly.

  • Page 11: Menu Settings

    Use pliers if necessary. Menu Settings The B·iRON Console offers an intuitive user interface which provides quick access to station parameters. MENU Return to Work JBC#1 Tool ID Lock Parameters Sleep mode Sleep temperature Tool1 150ºC Locked...
  • Page 12 Parameters Parameter Description Tool ID Allows to change the tool identifier. Allows to change the PIN Hibernation Delay Set hibernation delay from 5 to 15 sec. Countdown starts when no movement ist detected. Sleep Mode / Set sleep mode ON/OFF. The tip temperature will drop to the selected Sleep Temperature sleep temperature.
  • Page 13 - Connect the console/device via USB connection to the PC. - On the console/device notification bar at the top, open “USB Connection Settings” and select “MTP”. - On the PC copy the downloaded file to “IT706/internal share storage/JBC”. - Once copying is finished, disconnect the console/device from the PC.

  • Page 14: Maintenance

    - Maintain tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty surfaces reduce heat transfer to the solder joint. - Do not use liquid such as alcohol, thinner or benzene to clean the console. - Repairs should only be performed by a JBC authorized technical service. Clean periodically...
  • Page 15 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. When unplugging it, hold the plug, not the wire. - Do not work on electrically live parts.
  • Page 16 Notes...
  • Page 17 Notes...
  • Page 18 Notes...

  • Page 19: Specifications

    Specifications B·iRON 115 Nano B·iRON Station With Console Without Console Ref.: BI115UA 120 V - N. America Ref.: BI115UQA 120 V - N. America, Taiwan Ref.: BI115IA 230 V - India Ref.: BI115IQA 230 V - India Ref.: BI115A 230 V - Europe Ref.: BI115QA 230 V - Europe Ref.: BI115KA...
  • Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
