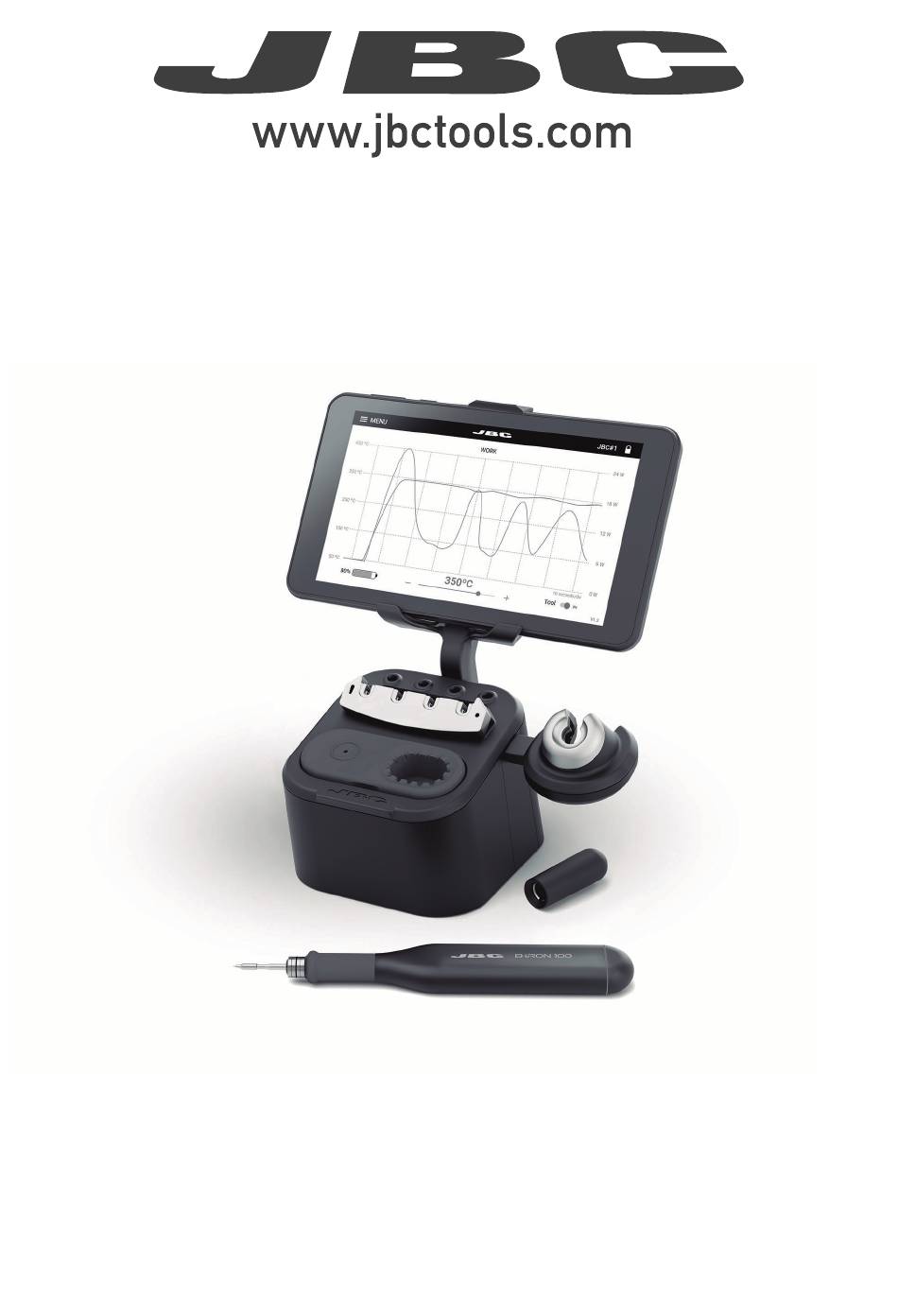

INSTRUCTION MANUAL
B·IRON 100
Battery-Powered Soldering Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-IRON 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc B-IRON 100

Summary of Contents for jbc B-IRON 100

  • Page 1 INSTRUCTION MANUAL B·IRON 100 Battery-Powered Soldering Station...

  • Page 2: Packing List

    This manual corresponds to the following references: BIL-5A* *according to purchased station model, suitable for: 120V - N. America / Taiwan 230V - India / Europe / United Kingdom Packing List The following items are included: B·IRON Handel Charging-Base ... 1 unit Portable Display 7”...
  • Page 3 para manuales - color gris 200 mm 130 mm 130 mm 100 mm 80 mm B·IRON Display Holder 5” to 7” ..... 1 unit USB Cable ....1 unit (USB A to Micro USB) Ref. 0030723 Ref. 0028092 Includes fixing knob 60 mm 50 mm 40 mm...
  • Page 4 Please read this manual and its safety guidelines thoroughly before using the product. Features & Connections Portable Display 7” for B·IRON Cartridge Exchanger Cartridge Holder Ref. 0032465 CL0300 Right-Side Brass Wool Handle Charger for B·IRON Charging-Base (inside) CL0301 Wiper for B·IRON Charging-Base Ref.
  • Page 5 para manuales - color gris 200 mm 130 mm 130 mm Features and Connections 100 mm Portable Display 7” for B·IRON 80 mm 60 mm Ref. 0030723 B·IRON Display Holder 50 mm 5” to 7” 40 mm B·IRON 100 TOOL Precision Handle Display Support Safety Cap...

  • Page 6: Quick Start

    Quick Start 1. Display Holder Assembling 2. Display Holder Setting Display Holder Insert the thin end of the display holder into the Insert the fi xing knob (3) and tighten it just enough upper area of the rear rail of the charging base so that it stays in its place but the display holder (1).
  • Page 7 para manuales - color gris 200 mm 130 mm 130 mm 5. Turning on the Portable Display Power Button 100 mm Turn on the display by holding down the power button and then open the B·IRON app*: 80 mm * Note: The app can also be downloaded to your own devices.

  • Page 8: Tool Selection

    Hibernation delay (seconds) Minimum Temperature Maximum Temperature 100ºC 400ºC Tool Status Temperature units Charging Working No cartridge Low battery ºC ºF Power OFF Tool Selection 7. Tool Selection Tools shown on the display can be selected to 8174 work with. 24 W 100% It is possible to connect up to two tools at the same time.
  • Page 9 para manuales - color gris 200 mm Safety Cap 130 mm 130 mm Thanks to their safety cap, the B-IRON handles can be transported safely even with the cartridge inserted. 100 mm Handle When the cap is placed onto the handle, the cartridge stops heating immediately, data...

  • Page 10: Operation

    Operation The JBC Most Efficient Soldering System MENU JBC#1 This revolutionary technology can recover tip temperature extremely quickly. This allows the user to WORK work at a lower temperature. 24 W 100% 450 ºC 450 º Work Charge Mode Sleep Mode 18 W 100% 350 º...

  • Page 11: Work Screen

    It allows to modify the tool working temperature, check the battery status and turn on and off the 350ºC 10 seconds/div 10 seconds/div Tool Tool tool in use. V1.2 V1.2 100 mm Temperature and Power Graph JBC#1 MENU 80 mm CHARGE Updat 24 W 450 ºC Tool I 348ºC 60 mm 18 W 350 ºC 12 W 250 ºC...
  • Page 12 50 ºC 350ºC 350ºC 10 seconds/div 10 seconds/div Tool Work Screen Tool V1.2 V1.2 Connected Tool and Tool Selector JBC#1 MENU CHARGE Updat 24 W 450 ºC Tool ID 348ºC 18 W 350 ºC 12 W 250 ºC 150 ºC 50 ºC...
  • Page 13 V1.2 The cartridge exchanger saves time and allows to chan The cartridge exchanger saves time and allows to change cartridges safely without switching the tool off. tool off. JBC#1 Return to Work 1. Removing Cartridges 2. I 100 mm 1. Removing Cartridges 2.
  • Page 14 3. Fixing Cartridges Depending on the shape of the tip, use the holes on the sides of the cartridge exchanger Holes to properly adjust the cartridge. Important: Push the cartridge in as far as it will go, making sure that it is firmly assembled*. 3.

  • Page 15: Tip Cleaner

    It also includes a temperature-resistant wiper for removing excess solder by gently tapping or wiping the cartridge tip on it. If the tip is very dirty, JBC recommends cleaning it first Wiper with the wiper to remove excess solder and then with the brass wool.
  • Page 16 Replacing Brass Wool 1. Lifting 2. Replacing Lift the wiper by using the recess on the edge. Remove the wiper and replace the brass wool with a new one. 3. Reassembling 4. Pressing on Assemble the new wiper onto the charging base. Press the wiper down at the 4 corners until Make sure that the brass wool is on the far left you feel it click into place.
  • Page 17 para manuales - color gris 200 mm Replacing Grips 130 mm 130 mm Cutting Removing Assembling New Grips B0001 Cutter Worn Grip Grip for B·IRON Handles 100 mm 80 mm Make a length-ways cut on the Remove the worn grip. Firmly slide the new grip onto worn grip.
  • Page 18 Tool Charger Disassembly and Replacement Disassembling the Tool Charger Loosen the screws (1) at the bottom of the charging base. Hold the tool charger with your hand in place, to prevent it from falling down, and pull the slide band down (2). Side Band Replacing the Tool Charger To install a new charger, insert it into the top of...
  • Page 19 - color gris 200 mm Menu 130 mm 130 mm MENU JBC#1 Work MENU MENU MENU Devices Work Devices W 100% 450 ºC 450 ºC 450 ºC Documents Settings Documents Tool ID Lock Parameters Sleep mode Sleep temperature...
  • Page 20 Settings Parameter Description Tool ID Allows to modify the tool identifier. Lock parameters Allows to lock the parameters of the station using a four-digit code. The default code is 0105, but a new code can be set by simply entering some other four digits of choice when locking the parameters.
  • Page 21 Locked Unlocked 2822 40 mm Hibernation delay (seconds) Minimum Temperature Maximum Temperature User manuals related to the station or to the tools can be consulted in this section or on JBC’s website: www.jbctools.com 100ºC 400ºC Tool Status Temperature units Charging...

  • Page 22: Updating The Firmware

    Tool ID 348ºC 18 W 100% 350 ºC 18 W 100% 350 ºC - Download the JBC update file to your PC from: https://www.jbctools.com/software.html. Hibernation d 12 W 100% 12 W 100% 250 ºC 250 ºC - Connect the tablet/device via USB connection to the PC.
  • Page 23 For more information on the entire B-IRON product range that goes beyond the information in this 100 mm manual, please visit www.jbctools.com. Display Holder In addition to the display holder supplied with the B·IRON station, JBC offers a holder for tablet sizes 80 mm between 10” to 13”. Assemble the display...

  • Page 24: Maintenance

    Clean the contact surfaces regularly to ensure that the - Do not use liquids such as alcohol, thinner or tool gets charged benzene to clean the tablet. correctly - Repairs should only be performed by a JBC authorized technical service.
  • Page 25 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.

  • Page 26: Safety - Battery

    - In the event of damage, leakage, or overheating of the batteries, discontinue use immediately and contact customer support or JBC technical service facility. - Dispose of devices with batteries inside, responsibly according to regulations. They must be disposed of in accordance with local regulations so that they can be recycled.

  • Page 27: Specifications

    para manuales - color gris 200 mm Specifications 130 mm 130 mm B·IRON 100 Battery-Powered Soldering Station Ref. BIL-5A 100 mm Charging-Base - Input: 100 V - 240 V 50/60 Hz - Nominal Power: 40 W - Tool Output: 12 V / 1000 mA 80 mm - USB Output:...
  • Page 28 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
