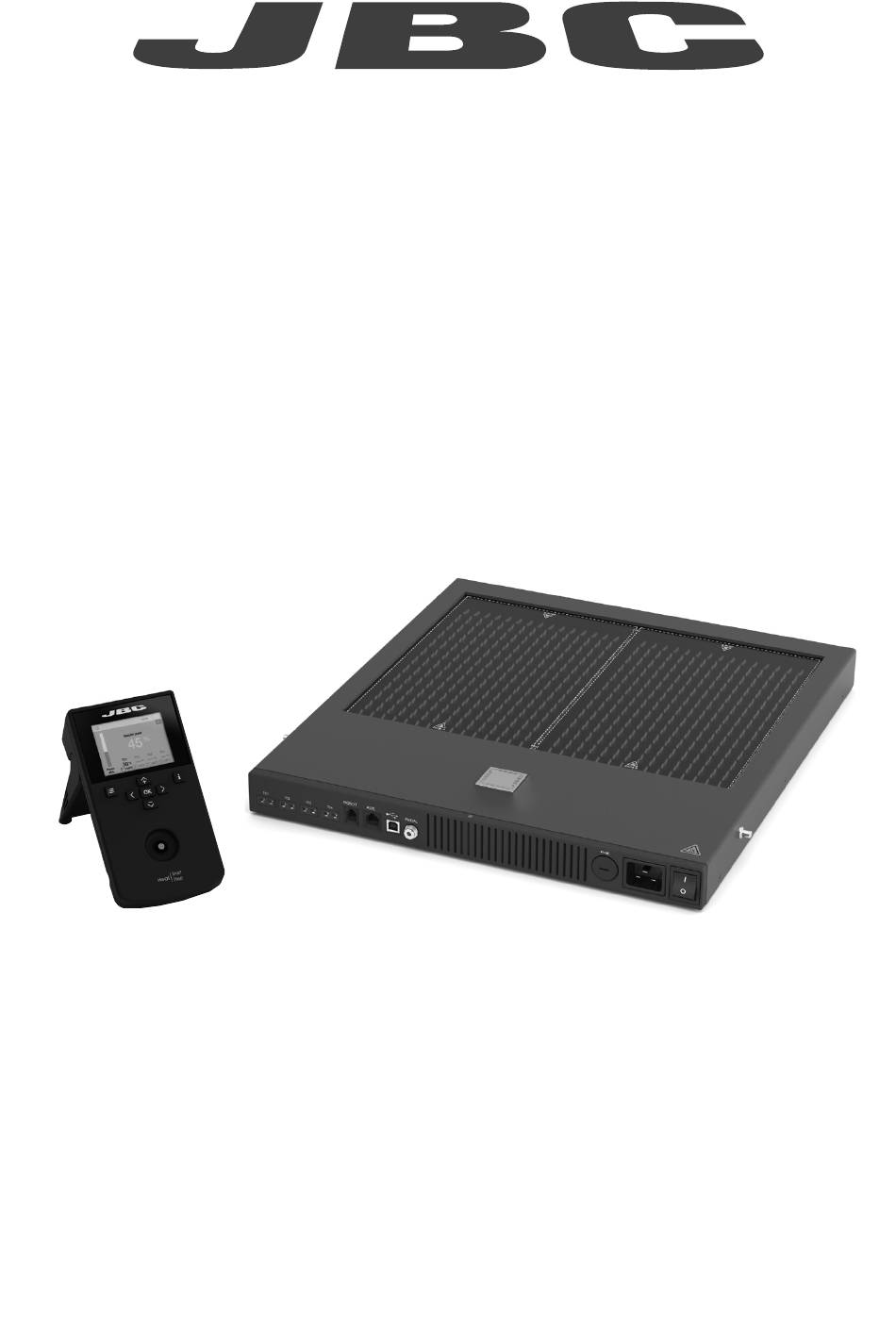

INSTRUCTION MANUAL
PHBE
Preheater for PCBs
up to 36x28cm/14x11"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHBE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc PHBE Series

Summary of Contents for jbc PHBE Series

  • Page 1 INSTRUCTION MANUAL PHBE Preheater for PCBs up to 36x28cm/14x11”...

  • Page 2: Packing List

    This manual corresponds to the following references: PHBE-9B (100 V) PHBE-1B (120 V) PHBE-2B (230 V) Packing List The following items are included: PHBE Preheater Unit ......1 unit Console ............1 unit Ref. ACE-A RJ45 Cable ..........1 unit Power Cord ..........1 unit Ref.

  • Page 3: Placement Instructions

    para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Preheater Unit Heating Areas 100 mm Zone A Zone B Fuse 80 mm Fixing Brackets for PHBS Support Thermocouple 60 mm Connectors x4 Power RJ12 Connector Power Socket 50 mm (to Robot)
  • Page 4 º º º º Power C 100 P 100 P 100 º º º P 100 º Work Display The console offers an intuitive user interface, which provides quick access to station parameters. 14:15 Status Indicator Max. Rate 14:15 Status Bar º...

  • Page 5: Recommended Guidelines

    para manuales - color gris 200 mm Setting Thermocouples Function 130 mm 130 mm Select Thermocouples from the Work mode menu to set them up. The thermocouples (TC) can work in three different ways depending on what is needed. · Control: the unit maintains the selected temperature. 100 mm ·...

  • Page 6: Work Mode

    Max. Rate º 1.6ºC/s Selected 120 º 14:15 Work Mode º º º º Power Max. Rate C 100 P 100 P 100 º º º P 100 º º 1.6ºC/s Temperature Mode: Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected º...
  • Page 7 para manuales - color gris 200 mm Work Mode 130 mm 130 mm Temperature Mode: This function allows you to set a maximum value for the temperature increase per second when heating. Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection The maximum heating rate value can be set between 0.1ºC/s and 2.0ºC/s (2) or “None”...
  • Page 8 º º º Profile Modes Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit.

  • Page 9: Profile Editor

    JBC Predefined Profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain gradual warming.

  • Page 10: Process Analysis

    Process Analysis By pressing Graphics in the main MENU, the temperature of TC1 thermocouple and power fi gures in real time are displayed. Graphics 14:15 Power (%) Temperature (ºC) Power [%] Ext. Temp [ºC] Switch Y Axis Between Power and Temperature System Notifications The following icons will be displayed on the screen’s status bar.
  • Page 11 USB-A connector to 80 mm export/import profiles. Update the Station Software 60 mm 1. Download the JBC Update File from 2. Insert the USB flash drive into the console. www.jbctools.com/software.html and save The icon is displayed while updating. it on a USB flash drive. (Preferably one with no 50 mm other files).

  • Page 12: Maintenance

    - Only if it is absolutely necessary and if cleaning with isopropyl alcohol (IPA) is not enough, it is recommended to use a scraper to remove dirt in the glass area. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 13 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than PCB preheating. Incorrect use may cause a fire. - The mains cable must be plugged into approved bases.
  • Page 14 INSTRUCTION MANUAL Articulated Hand Rest for PHBEK Preheater Set...

  • Page 15: Packing List

    This manual corresponds to the following reference: RHB-A Packing List The following items are included: Articulated Heigh Adj. Flange..1 unit Shaft ......1 unit Hand Rest Arm....1 unit Ref. 0023991 Ref. 0024007 Base PHBE compatible ......1 unit Headless Screw ........
  • Page 16 Features Shaft Height Adjustment Knob Hand Rest Arm Headless Screw Base Hand Rest ESD Connector (connect to ESD Common Grounding Point) Hand Rest Height Adjustment Flange Assembly Right Hand Setting up the Articulated Rest Hand Rest Shaft Fit the shaft into the base bushing Base (1) and tighten the headless screw Bushing...

  • Page 17: Height Adjustment

    Height Adjustment According to your work needs the articulated hand rest allows adjustment for different heights through the vertical axis. Slide the arm to the appropriate height (1) and Knob secure it by tightening the knob (2) to guarantee stability. Work Position Adjustment RHN arm allows adjustment for different positions according to your work needs.
  • Page 18 Accessories* If a second hand rest ist needed, Articulated Left Hand Rest HRL is available. HRL also allows adjustment for different positions. Articulated Left Hand Rest In the case of using both left and right arms, assemble both as shown in the illustration according to the letters on the back of the hand rest, to keep the hand supports at the same level.
  • Page 19 Compatible JBC Articles* HRR and HRL can be combined with: RWT Adjustable Rework Arm, RWS Adjustable Rework Arm for PHSE and RWB Adjustable Rework Arm for PHBE. Assemble first the height adjustment flange (1), then the HRR (2) and afterward the HRL (3). Assemble the second height adjustment flange (4) and finally the RWT (5).
  • Page 20 - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts. - Replace any defective damaged parts. Use original JBC spare parts only. Do not leave HRR over the preheater when the preheater is working.

  • Page 21: Specifications

    23.43 x 20.67 x 7.28 / 31.24 lb Complies with CE standards ESD Safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
  • Page 22 INSTRUCTION MANUAL PHBS Support for PCBs up to 36x28cm/14x11”...
  • Page 23 This manual corresponds to the following reference: PHB-SA Packing List The following items are included: PHBS Support ............................1 unit Allen key ............. 1 unit Manual ............1 unit Ref. 0013754 Ref. 0026995...

  • Page 24: Features And Connections

    para manuales - color gris 200 mm Features and Connections 130 mm 130 mm 100 mm Clamp Knob Rubber Cap 80 mm Allen Key 60 mm 50 mm 40 mm Sliding Guide Guide Knob Height Adjusting System Slot Clamps For fixing irregular shaped PCBs.
  • Page 25 Height Adjustment The support allows changing the height between the PCB and the preheater heating area. It can be chosen between 3 positions for working height adjustment. To change the height, do as follows: To raise the support, hold the base and pull up. To lower the support, press the button and move down.
  • Page 26 para manuales - color gris 200 mm Fast PCB Replacement 130 mm 130 mm The support lets you replace PCBs of the same batch fast and easily thanks to the spring-loaded clamps, located at the frontal sliding guide. To do this, there is no need to open the sliding guide knob (1) and nor to move the sliding guides.
  • Page 27 - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts - Replace any defective or damaged piece. Sliding guide axes Use original JBC spare parts only. clean periodically - Repairs should only be performed by a JBC authorized technical service.
  • Page 28 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - When using the support with a preheater unit, the temperature of accessible surfaces may remain high after the unit is turned off.
  • Page 29 23.2 x 20.5 x 7.09 in / 10.58 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
