- Page 1 ENCORE BURST RGBW IP User Manual...
- Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
DMX Addressing DMX Modes System Menu Multi Unit Power Linking | Dimmer Mode Chart Dimensional Drawing | Trouble Shooting | Cleaning Limited Warranty (USA Only) Specifications ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 3... -
Page 4: Introduction

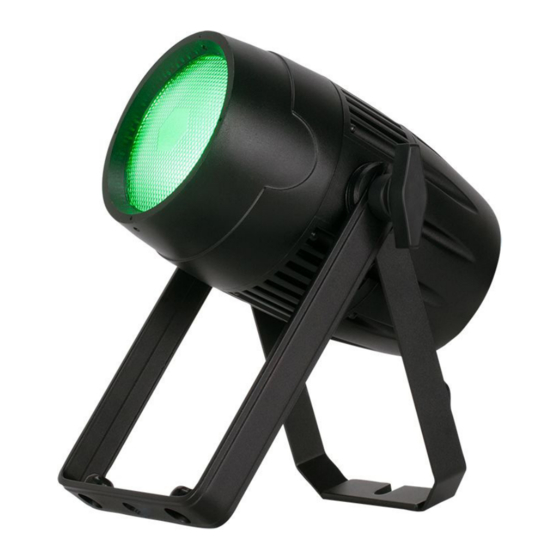

Introduction: The ADJ Encore Burst RGBW IP is a DMX intelligent, high powered LED fixture. To opti- mize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. -
Page 5: Features | Warranty Registration
• WARRANTY REGISTRATION The Encore Burst RGBW IP carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 6: Safety Precautions
• The fixture should be serviced by qualified service personnel when the appliance does not appear to operate normally or exhibits a marked change in performance. ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 6... -
Page 7: Ip65 Notice
NOT be subject to any warranty claims and/or repairs. ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 7... -
Page 8: Overview
OVERVIEW ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 8... -
Page 9: Installation
The Encore Burst RGBW IP is fully operational in three different mounting positions: hanging upside- down, mounted sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc). -
Page 10: Connections
TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM ENTERING THE FIX- TURE, ALL UNUSED CONNECTION RUBBER CAPS MUST BE SEALED. ONLY IP65 RATED POWER AND DATA CABLES MUST BE USED. ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 10... -
Page 11: Dmx Set Up
Data Cable (DMX Cable) Requirements (For DMX Operation): The Encore Burst RGBW IP can be controlled via DMX-512 protocol. The Encore Burst RGBW IP has multiple DMX channel modes. Your unit and your DMX controller requires a 5-pin XLR connector for data input and data output. We recommend Accu-Cable DMX cables. -
Page 12: Dmx Addressing
In the case of the Encore Burst RGBW IP, when in 4 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 5 (4 + 1), the third unit to 9 (5 + 4), and so on. (See chart below for more details.) -
Page 13: Dmx Modes
158 - 165 Primary green 166 - 172 Moss green 173 - 180 Fern green 181 - 187 JAS green 188 - 195 Lime Green CONTINUED ON NEXT PAGE ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 13... - Page 14 081 - 100 Theatre 101 - 120 Stage 2 121 - 140 Dim speed, fast to slow (0.1s-10.0s) 141 - 255 Default CONTINUED ON NEXT PAGE ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 14...
- Page 15 021 - 040 1.0 041 - 060 2.0 061 - 080 2.2 081 - 100 2.4 101 - 120 2.6 121 - 130 2.8 131 - 255 No function ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 15...
-
Page 16: System Menu
MENU button. If there are no changes/adjustments made within 10 seconds, the unit will revert back to the setting made under “No DMX State”. ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 16... - Page 17 On / Off Display Lock Red (000-255) Green (000-255) Effect Adjust SERVICE Passcode Blue (000-255 Passcode = 011 White (000-255) Factory Restore Passcore CONTINUED ON NEXT PAGE ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 17...
- Page 18 2. Maximum Temperature - Overall maximum fixture temp that has been recorded. (Not Resettable) 3. DMX value options depend on the DMX Channel mode the fixture is set to. ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 18...
- Page 19 CAN be reset. NOTE: The displayed time represents the current LED ON time since the last reset. • LED On Time Reset - With this function you can reset the CURRENT LED ON time that is dis- played under “LED On Time-R”. ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 19...
- Page 20 INFORMATION - DMX VALUES - Displays the DMX values of any DMX channel that is currently in use. NOTE: DMX value options depend on the current DMX channel mode setting. INFORMATION - SOFTWARE VERSION - The current software version is displayed. ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 20...
-
Page 21: Multi Unit Power Linking | Dimmer Mode Chart
NOTE: USE CAUTION WHEN POWER LINKING FIXTURES OF DIFFERENT MODEL TYPES, AS THE POWER CONSUMPTION OF OTHER MODELS MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE! CHECK SILK SCREEN FOR MAX AMPS. DIMMER MODE CHART ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 21... -
Page 22: Dimensional Drawing | Trouble Shooting | Cleaning
2. Clean the external optics with glass cleaner and a soft cloth every 20 days. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog resi- due, dust, dew). ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 22... -
Page 23: Limited Warranty (Usa Only)
ADJ Products, LLC factory unless prior written authorization was is- sued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual. -
Page 24: Specifications
DMX, RDM (remote device management), Stand Alone Please Note: Specifications and improvements in the design of this unit and this manual are subject with change without any prior written notice. ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 24... - Page 25 ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 25...
