5. Connection Configuration
5.1 Change the IP Address of PC

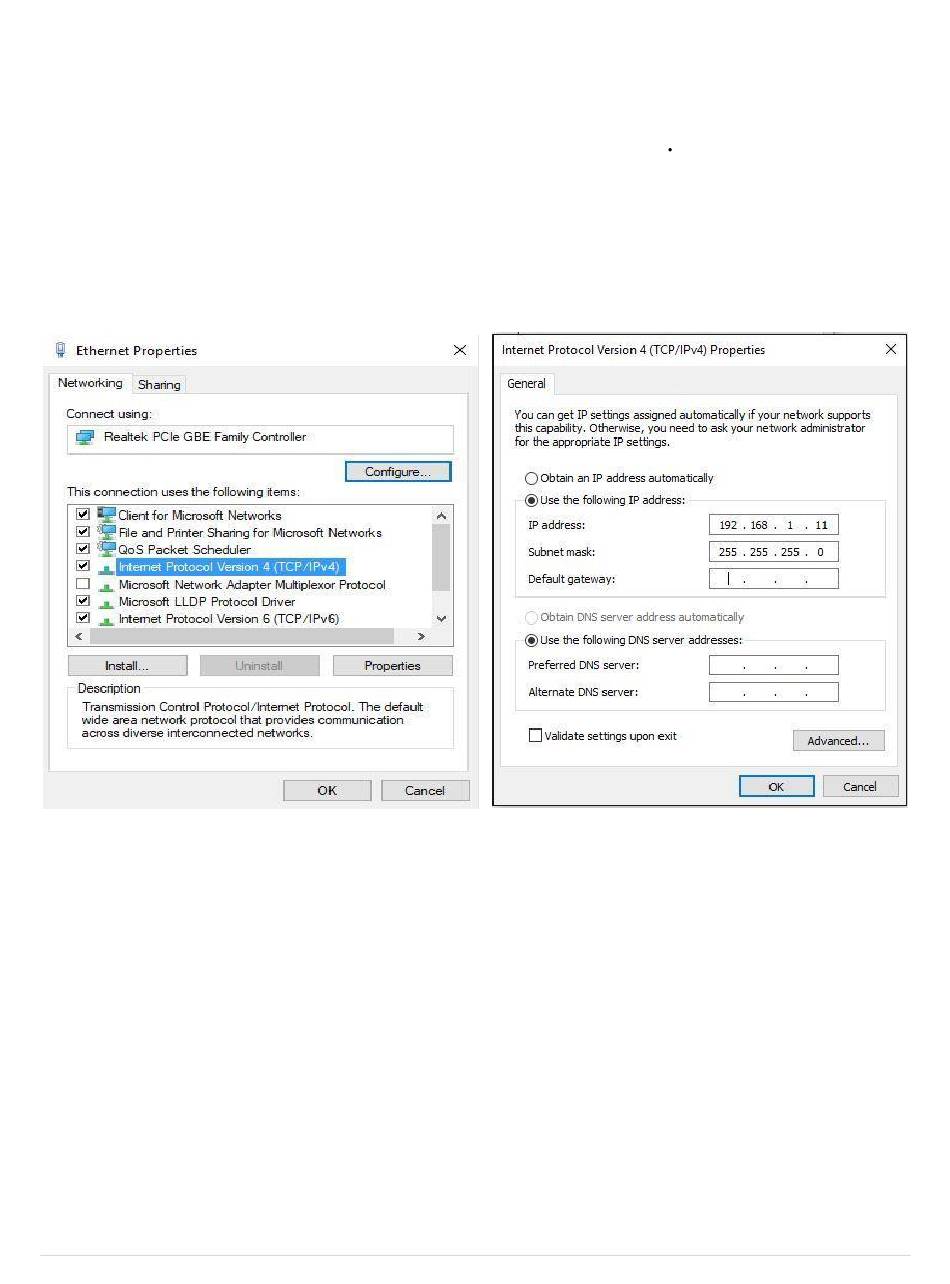

Assign the PC (or laptop) an IP address. On a Windows PC: Press the
+R on your keyboard
→Enter "control netconnections" in the run box and press enter → Right click on your wired
ethernet adapter → Select "Properties" → Double click "Internet Protocol Version 4 (TCP/IPv4)"
→ Enter the IP address with 192.168.1.11 (0-255) and Subnet mask 255.255.255.0. Press OK
twice to save the configuration.
5.2 Login for Configuration
Enter the unit's IP address (192.168.1.168) in your browser's address bar, to open the web GUI.
Login with the default credentials, User Name – admin | Password – admin
6 |
P a g e
