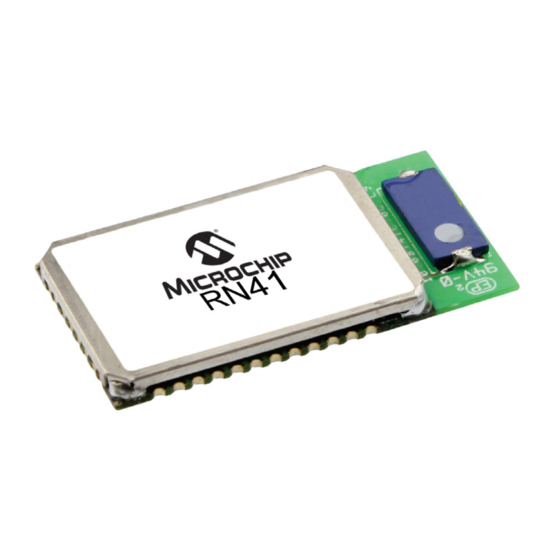

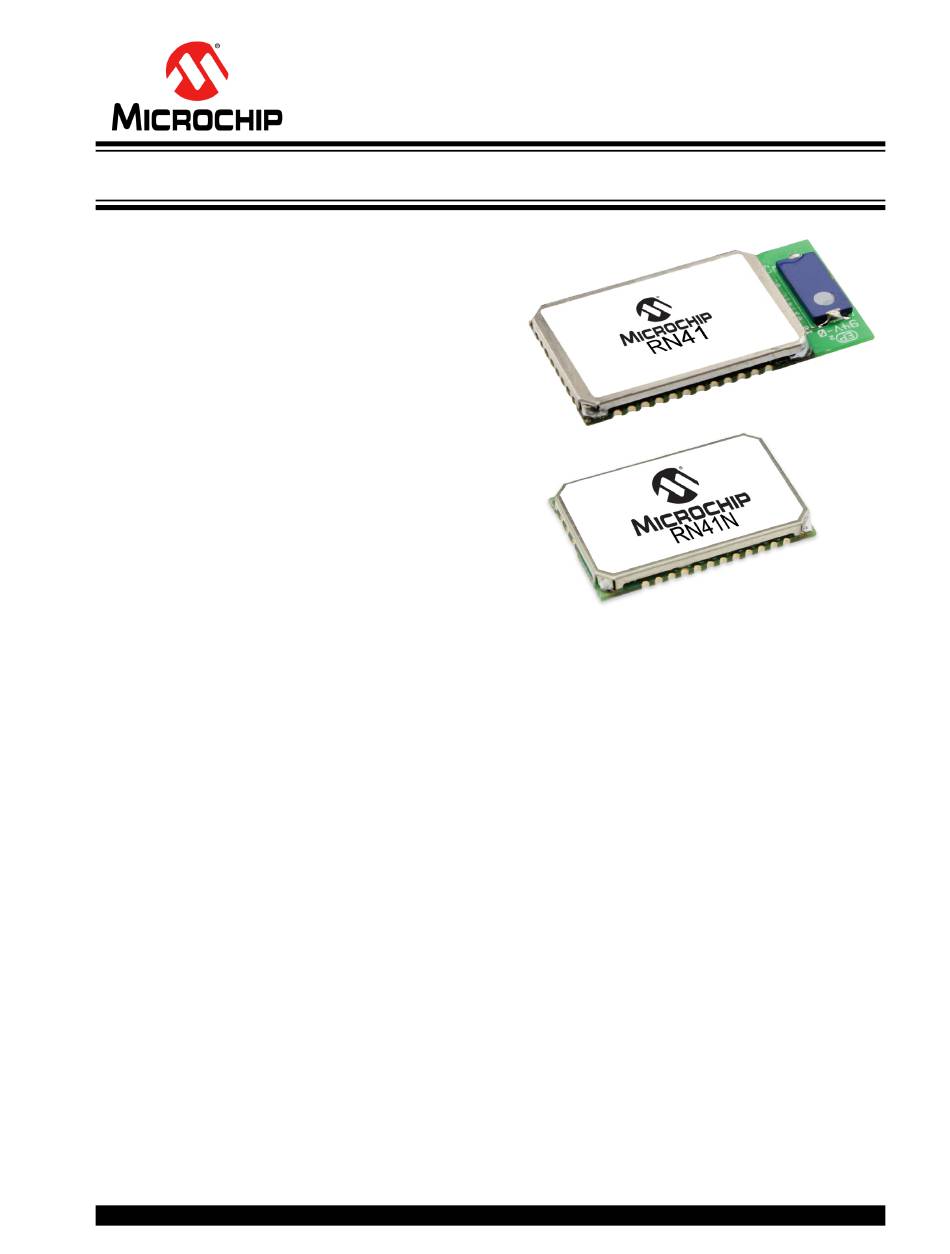

Class 1 bluetooth module with edr support

Advertisement

Quick Links

Class 1 Bluetooth
Features
®
• Fully qualified Bluetooth
supports version 2.1 + Enhanced Data Rate
(EDR)
• ASCII command interface over UART
• Postage-stamp sized form factor:
- RN41: 13.4 mm x 25.8 mm x 2 mm
- RN41N: 13.4 mm x 20 mm x 2 mm
• Low-power (30 mA connected, < 10 mA sniff
mode)
• UART (SPP or HCI) and USB (HCI only) data
connection interfaces
• Sustained SPP data rates: 240 Kbps (Peripheral
mode), 300 Kbps (Central mode)
• HCI data rates: 1.5 Mbps sustained, 3.0 Mbps
burst in HCI mode
• Embedded Bluetooth stack profiles include: GAP,
SDP, RFCOMM, L2CAP protocols, with SPP, HID
and DUN profile support (does not require any
host stack).
• Bluetooth SIG qualified, end product listing
• Castellated SMT pads for easy and reliable PCB
mounting
• Class 1 high-power amplifier with on-board
ceramic chip antenna (RN41) or external antenna
(RN41N)
• Compliance:
- Modular Certified for the United States (FCC)
and Canada (ISED)
- European RED Assessed Radio Module
- Australia/New Zealand/Korea/Taiwan/Japan
- Bluetooth SIG QDID
• Integrated Crystal, Internal Voltage Regulator,
Matching Circuitry, Power Amplifier, Low Noise,
Memory Amplifier and PCB Antenna
• Easy Integration into Final Product - Minimize
Product Development, Quicker Time to Market
• Compatible with Microchip Microcontroller Fami-
lies (PIC16F, PIC18F, PIC24F/H, dsPIC33 and
PIC32)
• Up to 100 meter range
 2014-2022 Microchip Technology Inc.
®
Module with EDR Support
version 2.1 module,
RN41/RN41N
Applications
• Cable replacement
• Barcode scanners
• Measurement and monitoring systems
• Industrial sensors and controls
• Medical devices
DS50002280C-page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RN41 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Microchip Technology RN41

  • Page 1 • ASCII command interface over UART • Postage-stamp sized form factor: - RN41: 13.4 mm x 25.8 mm x 2 mm - RN41N: 13.4 mm x 20 mm x 2 mm • Low-power (30 mA connected, < 10 mA sniff mode) •...
  • Page 2 Note: See Section 4.0 “Ordering Information” for customer part numbers. Information on firmware versions can be found on the RN41/RN41N product web page and the “Bluetooth Data Module Command Reference and Advanced Information User’s Guide”.  2014-2022 Microchip Technology Inc.
  • Page 3: Table Of Contents

    When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are using. Customer Notification System Register on our web site at www.microchip.com to receive the most current information on all of our products.  2014-2022 Microchip Technology Inc. DS50002280C-page 3...
  • Page 4: Device Overview

    FIGURE 1-1: RN41/RN41N TO MCU INTERFACE The RN41/RN41N module is a small form factor, low- power, class 1 Bluetooth radio that is ideal for designers who want to add wireless capability to their products without spending significant time and money developing Bluetooth-specific hardware and software.
  • Page 5 — VDD + 0.4 Output Logic Level Low — — Output Logic Level High VDD - 0.2 — — A All I/O pins (Except reset) Default to Weak Pull Down +0.2 +1.0 +5.0  2014-2022 Microchip Technology Inc. DS50002280C-page 5...
  • Page 6 DIMENSIONS SPI_MISO SPI_MOSI SPI_CSB GPIO6 GPIO4 GPIO7 GPIO5 RESET GPIO3 SPI_CLOCK GPIO2 PCM_CLK USB_D- RN41N Top View PCM_SYNC USB_D+ PCM_IN UART_CTS PCM_OUT UART_RTS UART_TX UART_RX 35 29 34 33 32 31 28 30  2014-2022 Microchip Technology Inc. DS50002280C-page 6...
  • Page 7 UART TX/RX data activity GPIO8 GPIO9 I/O (remote DTR signal) GPIO10 I/O (remote RTS signal) GPIO11 (Not used) Optional analog input AIO1 Note 1: Pin numbers 7 through 10 are reserved for future use.  2014-2022 Microchip Technology Inc. DS50002280C-page 7...
  • Page 8: Application Information

    PCB footprint for the RN41 and RN41N, respectively. ing with the RN41/RN41N module, including radio When laying out the carrier board for the RN41 module, interference, factory reset, solder reflow profile, con- the areas under the antenna and shielding connections nection status and so on.
  • Page 9 Note: Example U.FL connector layout under Shield Pads FIGURE 2-3: RN41 MODULE MOUNTING DETAILS Keep area around antenna (approximately 31 mm) clear of metallic structures for best performance. Edge of Ground Plane  2014-2022 Microchip Technology Inc. DS50002280C-page 9...
  • Page 10 RN41/RN41N FIGURE 2-5: RN41 HOST PCB EXAMPLE LAYOUT RN-41 RN-41 Best RN-41 RN-41 No Copper In these Areas Okay Okay Okay External Antenna Types (RN41N) HCI Mode The RN41N module’s antenna pin (pin 25) provides a Microchip offers the Host Controller Interface (HCI) 50-ohm impedance to external antennas.
  • Page 11 Bluetooth SIG QDID host processor. With this architecture, it is possible to achieve Bluetooth’s theoretical maximum throughput of The RN41 has a QDID registered with the Bluetooth 3 Mpbs. SIG. The manufacturer using the RN41 module in their end product can reference this QDID when filing an ®...
  • Page 12 2.10 Application Schematic The following figure shows a example application circuit. This schematic is for the RN-41-EK development tool. Refer to Section 1.1 “MCU Interface” for details on how to connect RN41/RN41N to a microcontroller. FIGURE 2-7: TYPICAL APPLICATION CIRCUIT RN41 Module 3.3V...
  • Page 13: Regulatory Approval

    Transmitter approval. Modular approval allows the This device complies with Part 15 of the FCC Rules. end user to integrate the RN41/RN41N module into a Operation is subject to the following two conditions: finished product without obtaining subsequent and sep-...
  • Page 14 RF Exposure compliance. there is no guarantee that interference will not occur If the RN41/RN41N module is used in a portable appli- in a particular installation. If this equipment does cation (i.e., the antenna is less than 20 cm from per-...
  • Page 15 For transmitters of output power greater than 10 milli- watts, the total antenna gain shall be added to the mea- sured RF output power to demonstrate compliance to the specified radiated power limits.  2014-2022 Microchip Technology Inc. DS50002280C-page 15...
  • Page 16 RED. 3.3.1 LABELING AND USER INFORMATION REQUIREMENTS The label on the final product which contains the RN41/ 41N module must follow CE marking requirements. 3.3.2 CONFORMITY ASSESSMENT From ETSI Guidance Note EG 203367, section 6.1...
  • Page 17 MODULE AND USER’S 3.4.2 HELPFUL WEB SITES REQUIREMENTS The Australian Communications and Media Authority: The label on the final product that contains the RN41/ www.acma.gov.au/. RN41N module must follow the UKCA marking require- ments. New Zealand The New Zealand radio regulations do not provide a modular approval policy similar to the United States (FCC) and Canada (ISED).
  • Page 18 UKCA DECLARATION OF CONFORMITY Hereby, Microchip Technology Inc. declares that the radio equipment type RN41/RN41N is in compliance with the Radio Equipment Regulations 2017. The full text of the UKCA declaration of conformity for this product is available (under Documents > Certifica- tions) at: •...
  • Page 19: Ordering Information

    Information on firmware versions can be found on the RN41/RN41N product web page and the “Bluetooth Data Module Command Reference and Advanced Information User’s Guide”.
  • Page 20 RN41/RN41N NOTES:  2014-2022 Microchip Technology Inc. DS50002280C-page 20...
  • Page 21: Appendix A: Revision History

    Section 2.6.2 “HCI over USB” updated with the new terminology Revision A (August 2014) This is the initial released version of the document in the Microchip format. This replaces Roving Networks RN41/RN41N Data Sheet.  2014-2022 Microchip Technology Inc. DS50002280C-page 21...
  • Page 22 RN41/RN41N NOTES:  2014-2022 Microchip Technology Inc. DS50002280C-page 22...
  • Page 23: Product Identification System

    Temperature Range: = -40°C to +85°C RN41APL-I/RM543: Ceramic Chip Antenna firmware version 5.43 RN41HCI-I/RM: Ceramic Chip Antenna Package: * = Radio Module HCI over UART *All package offerings are Pb Free (Lead Free)  2014-2022 Microchip Technology Inc. DS50002280C-page 23...
  • Page 24 RN41/RN41N NOTES:  2014-2022 Microchip Technology Inc. DS50002280C-page 24...
  • Page 25: The Microchip Web Site

    To register, access the Microchip web site at www.microchip.com. Under “Support”, click “Customer Change Notification” and follow the registration instructions.  2014-2022 Microchip Technology Inc. DS50002280C-page 25...
  • Page 26 RN41/RN41N NOTES:  2014-2022 Microchip Technology Inc. DS50002280C-page 26...
  • Page 27 Microchip intellectual property rights unless otherwise stated. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries. All other trademarks mentioned herein are property of their respective companies.
  • Page 28 Tel: 46-31-704-60-40 Tel: 631-435-6000 Sweden - Stockholm San Jose, CA Tel: 46-8-5090-4654 Tel: 408-735-9110 UK - Wokingham Tel: 408-436-4270 Tel: 44-118-921-5800 Canada - Toronto Fax: 44-118-921-5820 Tel: 905-695-1980 Fax: 905-695-2078  2014-2022 Microchip Technology Inc. and its subsidiaries DS50002280C-page 28 09/14/21...
