Microchip Technology RN4870/71 Manual
  1. Manuals
  2. Brands
  3. Microchip Technology Manuals
  4. Control Unit
  5. RN4870/71
  6. Manual

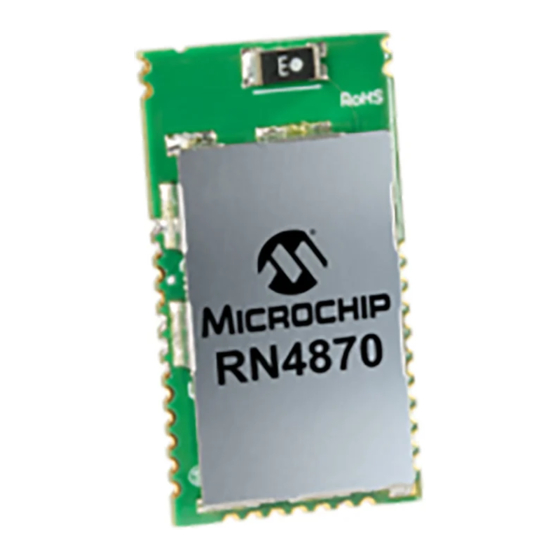

Microchip Technology RN4870/71 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Date:
04-Feb-2021
Product Category:
Bluetooth Module
PCN Type:
Document Change
Notification Subject:
Data Sheet - RN4870/71 Bluetooth Low Energy Module Data Sheet
Affected CPNs:
SYST-03YDHP471_Affected_CPN_02042021.pdf
SYST-03YDHP471_Affected_CPN_02042021.csv
Notification Text:
SYST-03YDHP471
Microchip has released a new Product Documents for the RN4870/71 Bluetooth Low Energy Module Data Sheet of devices. If you are
using one of these devices please read the document located at
Notification Status: Final
Description of Change:
1) Added new description for VDD_IO pins in Table 1-2.
2) Added labeling information of Brazil for RN4871 module.
Impacts to Data Sheet: None
Reason for Change: To Improve Manufacturability
Change Implementation Status: Complete
SYST-03YDHP471
.
Page 1 of 2
