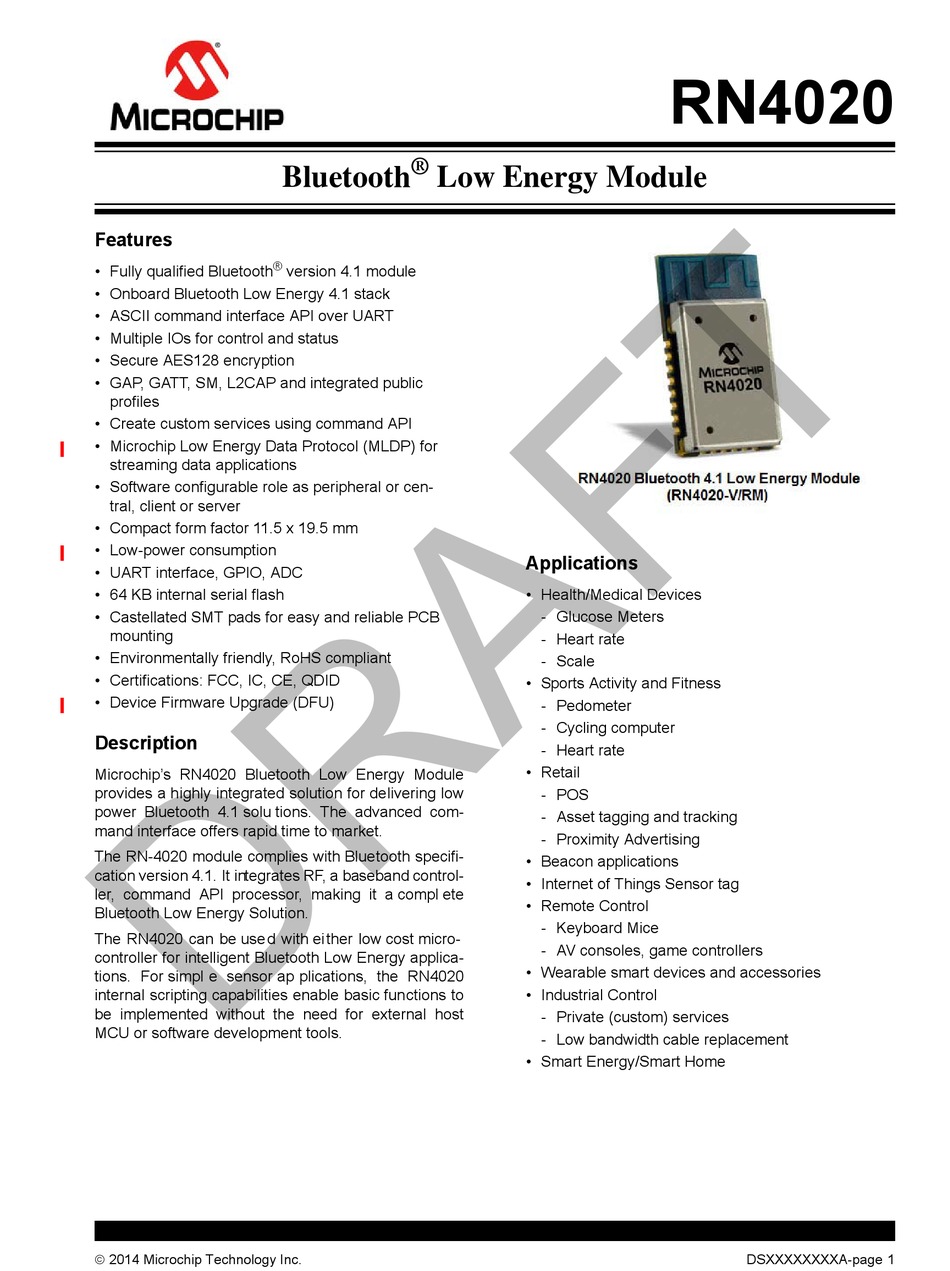

Features
®
• Fully qualified Bluetooth
• Onboard Bluetooth Low Energy 4.1 stack
• ASCII command interface API over UART
• Multiple IOs for control and status
• Secure AES128 encryption
• GAP, GATT, SM, L2CAP and integrated public
profiles
• Create custom services using command API
• Microchip Low Energy Data Protocol (MLDP) for
streaming data applications
• Software configurable role as peripheral or cen-
tral, client or server
• Compact form factor 11.5 x 19.5 mm
• Low-power consumption
• UART interface, GPIO, ADC
• 64 KB internal serial flash
• Castellated SMT pads for easy and reliable PCB
mounting
• Environmentally friendly, RoHS compliant
• Certifications: FCC, IC, CE, QDID
• Device Firmware Upgrade (DFU)
Description

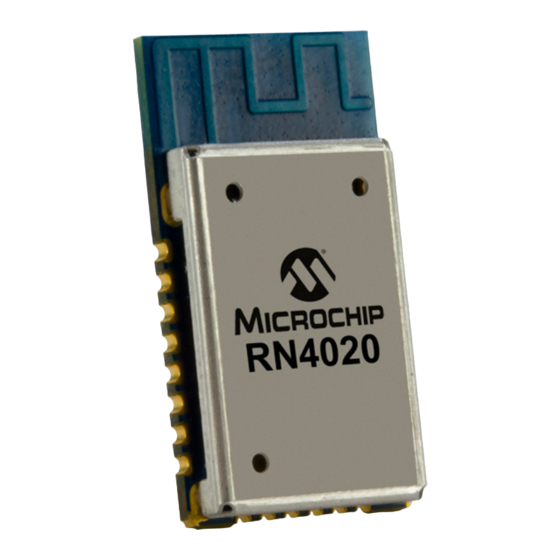

Microchip's RN4020 Bluetooth Low Energy Module
provides a highly integrated solution for delivering low
power Bluetooth 4.1 solu tions. The advanced com-
mand interface offers rapid time to market.
The RN-4020 module complies with Bluetooth specifi-
cation version 4.1. It integrates RF, a baseband control-
ler, command API processor, making it a compl ete
Bluetooth Low Energy Solution.
The RN4020 can be use d with ei ther low cost micro-
controller for intelligent Bluetooth Low Energy applica-
tions. For simpl e sensor ap plications, the RN4020
internal scripting capabilities enable basic functions to
be implemented without the need for external host
MCU or software development tools.
2014 Microchip Technology Inc.
®
Bluetooth
Low Energy Module
version 4.1 module
RN4020
Applications
• Health/Medical Devices
- Glucose Meters
- Heart rate
- Scale
• Sports Activity and Fitness
- Pedometer
- Cycling computer
- Heart rate
• Retail
- POS
- Asset tagging and tracking
- Proximity Advertising
• Beacon applications
• Internet of Things Sensor tag
• Remote Control
- Keyboard Mice
- AV consoles, game controllers
• Wearable smart devices and accessories
• Industrial Control
- Private (custom) services
- Low bandwidth cable replacement
• Smart Energy/Smart Home
DSXXXXXXXXA-page 1
Advertisement
Table of Contents
Related Manuals for Microchip Technology RN4020
Summary of Contents for Microchip Technology RN4020
- Page 1 • Remote Control Bluetooth Low Energy Solution. - Keyboard Mice The RN4020 can be use d with ei ther low cost micro- - AV consoles, game controllers controller for intelligent Bluetooth Low Energy applica- • Wearable smart devices and accessories tions.
-
Page 2: Table Of Contents
RN4020 Table of Contents Device Overview................................... 3 General Specifications.................................. 5 Microcontroller to RN4020 Interface ............................. 6 Physical Dimensions..................................7 Typical Application Schematic ..............................8 ASCII Command API ..................................9 Supported Services ..................................10 Regulatory Approval ................................... 13 Ordering Information................................... 19 Appendix A: Revision History ................................ -
Page 3: Device Overview
RN4020 DEVICE OVERVIEW FIGURE 1-1: RN4020 TOP VIEW Figure 1-2 shows the module’s pinout and Table 1-1 describes the pins. FIGURE 1-2: RN4020 PIN DIAGRAM 2014 Microchip Technology Inc. DSXXXXXXXXA-page 3... - Page 4 Initiate Advertising state or connect to stored ADVCONN module in advertising state (discoverable address GPIO[7] and open for connection). In Central , initi- ates connect to stored address. Do not connect. Factory diagnostics RSVD DSXXXXXXXXA-page 4 2014 Microchip Technology Inc.
-
Page 5: General Specifications
JESD22-A224 class 0 product Humidity 10% ~ 90% non-con- densing TABLE 2-2: WEIGHT AND DIMENSIONS Specification Description Dimensions RN4020: 19.5 x 11.5 x 2.5 mm Weight 1.2 g TABLE 2-3: ELECTRICAL CHARACTERISTICS Specification Description Supply Voltage 3Vport: 2.0 - 4.2 V DC... -
Page 6: Microcontroller To Rn4020 Interface
BTLE service that provides a 20kbps serial data trans- using ASCII comman d API. T he command API is port over Bluetooth Low Energy on the RN4020. Pin 8 described in Sec XX. (CMD/DATA) is required. CTS/RTS hardware control is... -
Page 7: Physical Dimensions
RN4020 PHYSICAL DIMENSIONS Figure 4-1 shows the physical dimensions for RN4020 module. Figure 4-2 shows the recommended PCB layout. FIGURE 4-1: PHYSICAL DIMENSIONS FOR RN4020 FIGURE 4-2: RECOMMENDED PCB FOOTPRINT 2014 Microchip Technology Inc. DSXXXXXXXXA-page 7... -
Page 8: Typical Application Schematic
RN4020 TYPICAL APPLICATION SCHEMATIC ™ Figure 5-1 shows schematic for the RN4 020 PICtail /PICtail Plus Daughter Board development tool, PN- XXXXXXXXXX. FIGURE 5-1: RN4020 TYPICAL APPLICATION SCHEMATIC DSXXXXXXXXA-page 8 2014 Microchip Technology Inc. -
Page 9: Ascii Command Api
RN4020 ASCII COMMAND API The RN4020 command API is documented in RN4020 Command Reference: doc-xxx-xxxxxx: Commands are categorized into the following func- tions: • Built-in public services - Enable/Disable service as Server or Client - Red value - Set value •... -
Page 10: Supported Services
Scan Parameters 0x1813 Public and Private Services The RN4020 provided the ability to cre ate customer services. If the services a re supported on both end points of a Bluetooth Low Energy connection, such as Central and Peripheral devices, data can be exchanged. - Page 11 Part Number OMNIX OM-310 LFM-70W INP Metal Composition SAC305 (96.5% Sn, 3% Ag, 0.5% Cu) 88% Sn, 3.5% Ag, 0.5% Bi, 8% In Liquidus Temperature ~220°C ~215°C FIGURE 7-4: SOLDER REFLOW TEMPERATURE PROFILE 2014 Microchip Technology Inc. DSXXXXXXXXA-page 11...
- Page 12 RN4020 FIGURE 7-5: SOLDER REFLOW CURVE DSXXXXXXXXA-page 12 2014 Microchip Technology Inc.
-
Page 13: Regulatory Approval
LABELING AND USER INFORMATION REQUIREMENTS This section outlines the regulatory information for the The RN4020 module has bee n labeled with its own RN4020 module for the following countries: FCC ID number, and if the FCC ID is not visible when •... - Page 14 8.1.2 RF EXPOSURE The RN4020 module has been approved for mixed The RN4020 module has been certified for use in Can- mobile and portable exposure hosts; co-location ada under Industry Canada (IC) Ra dio Standards with other transmitters may need additional eval- Specification (RSS) RSS-210 and RSSGen.
- Page 15 Issue 3, December 2010): product and is theref ore responsible for The RN4020 module can only be sold or operated with demonstrating compliance of th e final antennas with which it was approved. Transmitter may product with the essential requirements of be approved with multiple antenna types.
- Page 16 • European Conference of Postal and Telecommu- nications Administrations (CEPT): http://www.cept.org/ • European Telecommunications Standards Insti- tute (ETSI): http://www.etsi.org • European Radio Communications Office (ERO): http://www.ero.dk/ • The Radio and Telecommunications Terminal Equipment Compliance Association (R&TTE CA): http://www.rtteca.com/ DSXXXXXXXXA-page 16 2014 Microchip Technology Inc.
- Page 17 It is the responsibility of the integrator to know what http://www.rsm.govt.nz/cms/licensees/types-oflicence/ is required in the compliance folder for ACMA compli- general-user-licences/short-range-devices ance. All test reports are available on the RN4020 product web page at http://www.microchip.com. For http://www.rsm.govt.nz/cms/policy-and-planning/spec- more information on Australia compliance, refer to the...
- Page 18 RN4020 DSXXXXXXXXA-page 18 2014 Microchip Technology Inc.
-
Page 19: Ordering Information
RN4020 ORDERING INFORMATION Table 9-1 provides ordering information for the RN4020 module. TABLE 9-1: ORDERING INFORMATION Part Number Description RN4020RM Standard firmware (GATT, GAP, L2CAP) peripheral and Central mode Note: For custom applications, contact Microchip representative. Go to http://www.microchip.com for current pricing and a list of distributors carrying Microchip products. - Page 20 RN4020 NOTES: DSXXXXXXXXA-page 20 2014 Microchip Technology Inc.
-
Page 21: Appendix A: Revision History
RN4020 APPENDIX A: REVISION HISTORY Revision A (May 2014) This is the in itial released version of the document in the Microchip format. 2014 Microchip Technology Inc. DS00000000A-page 21... - Page 22 RN4020 NOTES: DS00000000A-page 22 2014 Microchip Technology Inc.
-
Page 23: The Microchip Web Site
To register, access the Microc hip web site at www.microchip.com. Under “Support”, click “Customer Change Notification” and follow the registration instructions. 2014 Microchip Technology Inc. DS00000000A-page 23... - Page 24 RN4020 NOTES: DS00000000A-page 24 2014 Microchip Technology Inc.
-
Page 25: Product Identification System
To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office PART NO. Device Temperature Package Firmware Range Revision Number Device: RN4020: UART, PCB Antenna Temperature Range: -40°C to +85°C Package: Radio Module 2014 Microchip Technology Inc. DSXXXXXXXXA-page 25... - Page 26 RN4020 NOTES: DSXXXXXXXXA-page 26 2014 Microchip Technology Inc.
- Page 27 Total Endurance, TSHARC, UniWinDriver, WiperLock, ZENA and Z-Scale are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. GestIC and ULPP are registered trademarks of Microchip Technology Germany II GmbH &...
- Page 28 Tel: 86-29-8833-7252 Tel: 631-435-6000 Fax: 86-29-8833-7256 San Jose, CA China - Xiamen Tel: 408-735-9110 Tel: 86-592-2388138 Canada - Toronto Fax: 86-592-2388130 Tel: 905-673-0699 China - Zhuhai Fax: 905-673-6509 Tel: 86-756-3210040 03/25/14 Fax: 86-756-3210049 DS00000A-page 28 2014 Microchip Technology Inc.
