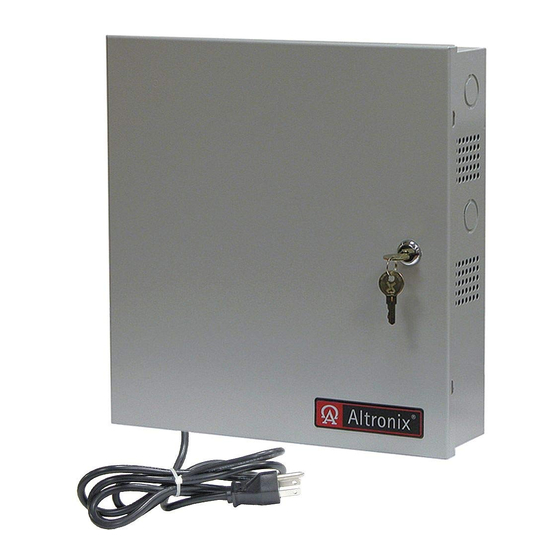

ALTV2432UL3 Series
CCTV Power Supplies with
Factory installed 3-wire line cord
Models Include:
ALTV2432300UL3
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Thirty-two (32) Fuse Protected Outputs.
ALTV2432600UL3
- 24VAC @ 25A (600VA)
or 28VAC @ 20A (560VA).
- Thirty-two (32) Fuse Protected Outputs.
Installation Guide
Rev. 040506
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
ALTV2432300ULCB3
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Thirty-two (32) PTC Protected Outputs.
ALTV2432600ULCB3
- 24VAC @ 25A (600VA)
or 28VAC @ 20A (560VA).
- Thirty-two (32) PTC Protected Outputs.
More than just power.
TM
Advertisement
Related Manuals for Altronix ALTV2432300UL3
Summary of Contents for Altronix ALTV2432300UL3
- Page 1 ALTV2432UL3 Series CCTV Power Supplies with Factory installed 3-wire line cord Models Include: ALTV2432300UL3 ALTV2432300ULCB3 - 24VAC @ 12.5A (300VA) - 24VAC @ 12.5A (300VA) or 28VAC @ 10A (280VA). or 28VAC @ 10A (280VA). - Thirty-two (32) Fuse Protected Outputs.
-
Page 2: Specifications
Overview: Altronix ALTV2432UL3 Series CCTV Power Supplies provide 24VAC or 28VAC distributed via thirty-two (32) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. Thirty-Two (32) Output ALTV2432UL3 Reference Chart: Altronix Model Number 24VAC 12.5A –... -
Page 3: Terminal Identification
Keep power-limited (PTC protected outputs only) wiring separate from non power-limited wiring. Minimum 0.25” spacing must be provided. Use separate knockouts. 5. Measure output voltage before connecting devices. This helps avoid potential damage. CAUTION: Determine the maximum operating voltage of the equipment being powered before adjusting the output voltage. - Page 4 Fig. 1 - ALTV2432300UL3, ALTV2432300ULCB3 4 5 6 7 8 12 13 COMMON OUTPUTS PROTECTED OUTPUTS Used on ALTV2432300ULCB3 Power Distribution Board Power-Limited Class 2 PTCs 4 5 6 7 8 12 13 4 5 6 7 8 12 13...
- Page 5 Fig. 2 - ALTV2432600UL, ALTV2432600ULCB 4 5 6 7 8 12 13 COMMON OUTPUTS PROTECTED OUTPUTS Used on ALTV2432600ULCB3 Power-Limited Class 2 Power Distribution Board PTCs 4 5 6 7 8 12 13 4 5 6 7 8 12 13 COMMON COMMON OUTPUTS...
- Page 6 Notes: - 6 - ALTV2432UL3 Series Installation Guide...
- Page 7 Notes: ALTV2432UL3 Series Installation Guide - 7 -...
- Page 8 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIALTV2432UL3 Series L03U...
