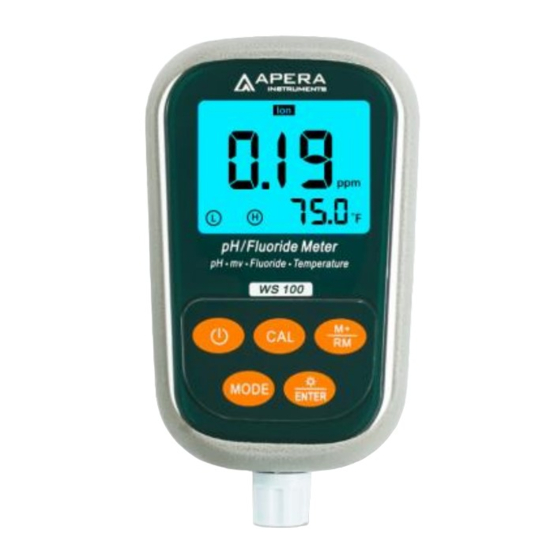

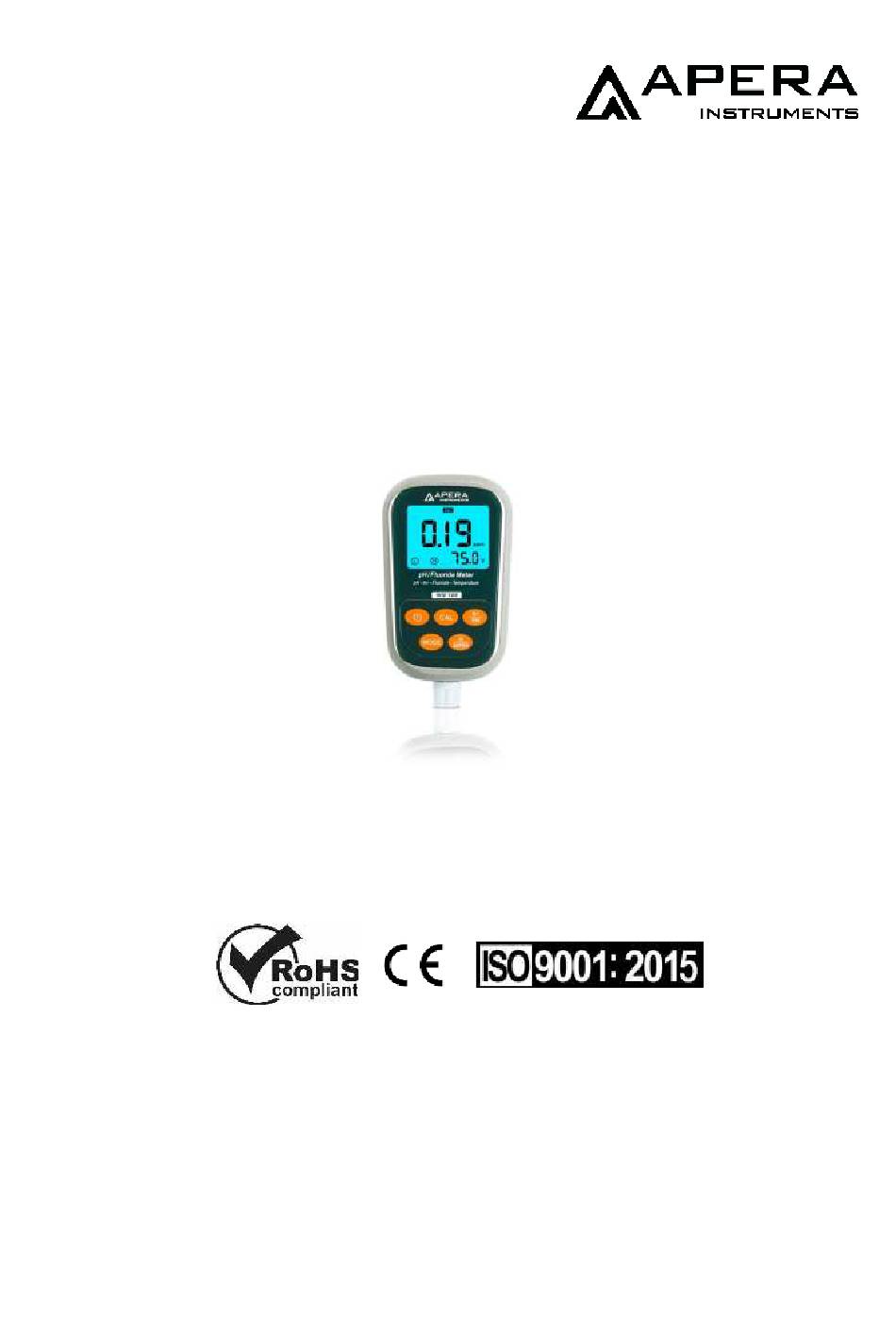

- Page 1 WS100 Fluoride/pH Portable Meter Kit Instruction Manual APERA INSTRUMENTS (Europe) GmbH www.aperainst.de - 1 -...
-
Page 2: Table Of Contents
Inhalt: Overview ..........................- 3 - Basic Functions ......................- 3 - Features of Fluoride Measurement ................- 3 - Features of pH measurement ..................- 3 - Technical Parameters： ....................... - 3 - Fluoride ......................... - 3 - pH ..........................- 4 - mV .......................... -
Page 3: Overview
Overview Thank you for purchasing the Apera Instruments WS100 Fluoride/pH Portable Meter Kit (Hereon after referred as the meter). This fluoride/pH combo meter is widely used for drinking water, surface water and other water treatment applications, ideal for both in-field and laboratory testing. -
Page 4: Other Technical Parameters
Measuring range ( -2.00 - 19.99) pH Resolution 0.1/0.01 pH Accuracy ± 0.01 pH ± 1 digit Temperature Compensation Range (0 – 100) °C (Automatic) Measuring range -1999mV ~ 0 ~ 1999mV Resolution Accuracy ±0.1% FS Other technical parameters: Data Storage 300 Groups Numberings, measurements, units of measurement and a Storage Content... -
Page 5: Operation Keys
Operation keys — Switch on / off key 3.2.1 — Calibration key 3.2.2 (a) When in the measurement mode, press this key to enter calibration mode. (b) When in the parameter setting mode, press this key to change the number or ON/OFF state. 3.2.3 Function key (a) In pH measurement mode, short press to change measurement parameters, long press... -
Page 6: Fluoride Concentration Measurement
(c) Clear the stored measuring information: In the data displaying mode, press the for 5 seconds, LCD will appear CLr for 2 seconds. It means that all the storage has been eliminated and returns to measuring mode. Fluoride concentration measurement Preparation 4.1.1 Press key to start connect F501-S fluoride ion electrode;... -
Page 7: Parameter Settings
4.3.3 Short press key, the meter enters the mV mode and displays the mV value of the fluoride ion concentration. 4.3.4 After test, rinse off the electrode with distilled water, shake off excess water, and store dry with the cap on. Parameter Settings Table (4-3) Symbol... -
Page 8: Ph Measurement
the difference of temperature between test solution and the calibration solution, the higher the measuring accuracy is. Typically, temperature difference between test solution and calibration solution should ≤±15°C; for high accuracy measurement, the temperatures should be the same. 4.5.7 When the meter is functioning abnormally, please set P4 as “ON” to restore the meter to factory default mode, and then perform calibration and measurements again. -
Page 9: Sample Measurement
(b) After the second-point calibration, (see item 5.2.3.), press to confirm two-point calibration and return to measuring mode. The indication icon L and M for two-point calibration will appear on the lower left corner of LCD. User can choose pH4.00 and pH7.00 to calibrate if the measurement is within the acidity range and choose pH7.00 and pH10.01 to calibrate if within the alkalinity range. - Page 10 (c) Press key to enter next parameter setting or press key to confirm and return to measuring mode. 5.4.3 Purified water pH temperature compensation setting (P2) (a) Short press key in the mode P1, the meter enters mode P2, see picture (4-3). to choose ON or OFF.
-
Page 11: Notes
5.4.7 Auto power off time setting (P6) (a) Short press key in mode P5 to enter mode P6, see picture (4-7). (b) Press key to choose the time: 0min, 10min or 20min. The auto power off function will be closed if choosing 0min. - Page 12 5.5.4 Always keep the meter clean and dry; especially around the socket connecting the meter and electrode, otherwise it may lead to inaccurate measurements or a damaged probe/meter. To clean, dry them with medical cotton and rubbing alcohol if the connectors appear dirty. 5.5.5 The sensitive glass bulb at the front of the combination electrode should not come in contact with hard surfaces.
-
Page 13: Self-Diagnose Information
Get the readings when the smiley face ion appears and stay on the screen. Complete Kit ◼ WS100 Fluoride/pH meter ◼ 201T-S 3-in-1 plastic pH/ATC electrode ◼ F501 Fluoride combination electrode ◼ pH standard buffer solution (pH4.00, pH7.00and pH10.01, 50mL) ◼... -
Page 14: Warranty
We warrant this instrument to be free from defects in material and workmanship and agrees to repair or replace free of charge, at option of APERA INSTRUMENTS (Europe) GmbH, any malfunctioned or damaged product attributable to responsibility of APERA INSTRUMENTS (Europe) GmbH for a period of two years from the delivery (a six-month limited warranty applies to probes).
