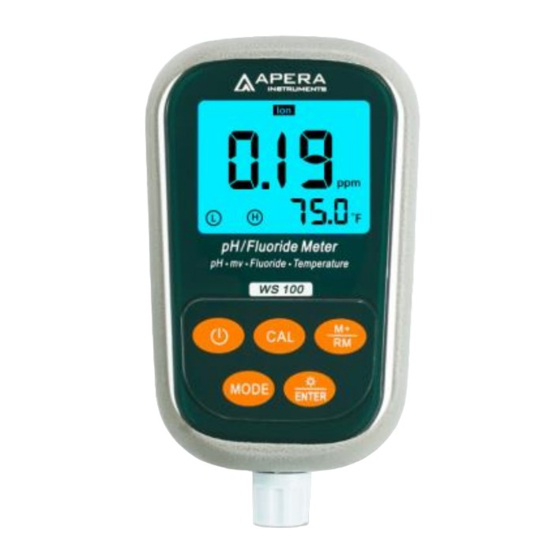

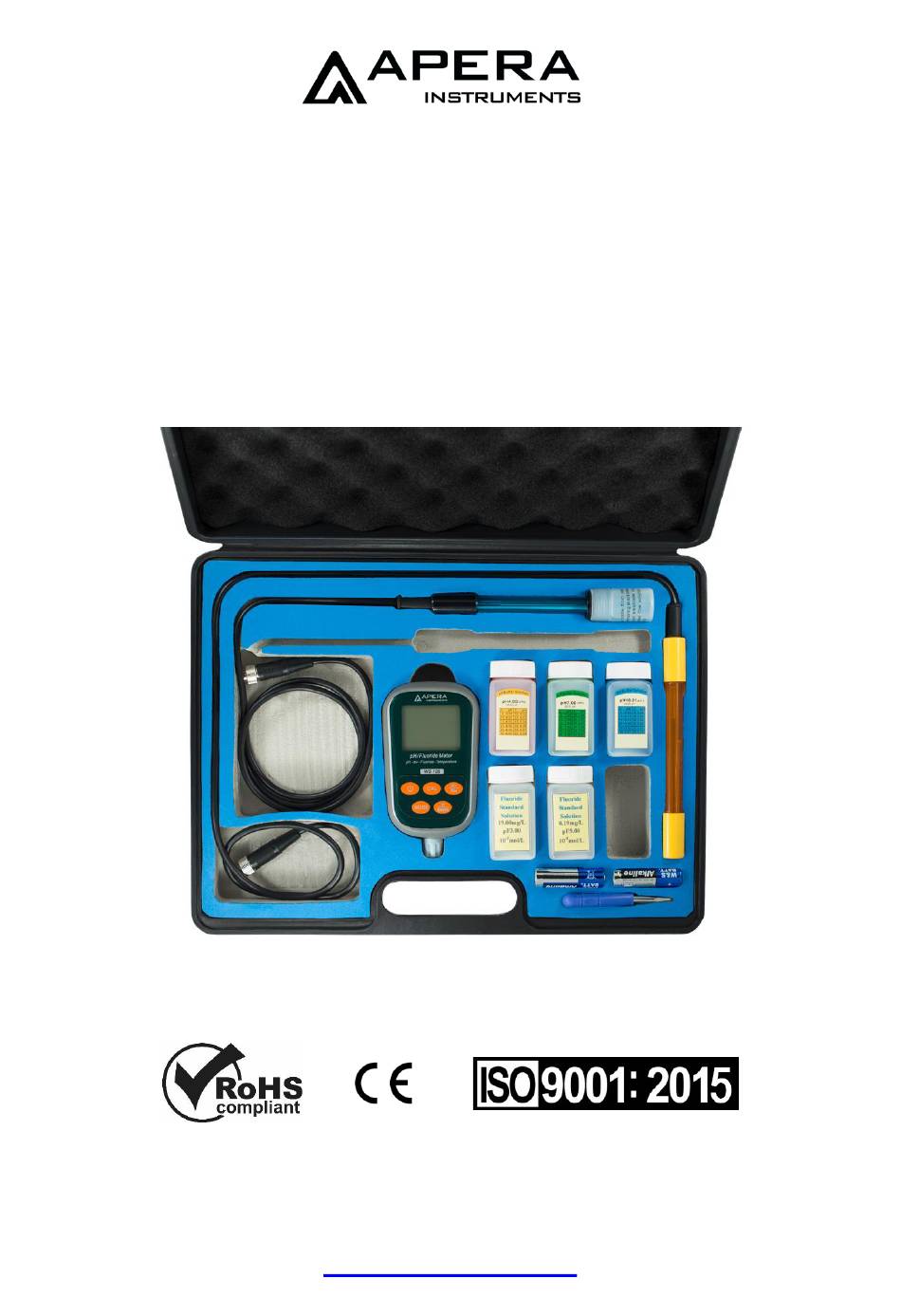

- Page 1 WS100 Fluoride/pH Portable Meter Kit Instruction Manual APERA INSTRUMENTS, LLC aperainst.com - 1 -...
-
Page 2: Table Of Contents
Overview ......................... - 3 - Basic Functions ........................- 3 - Features of Fluoride Measurement ..................- 3 - Features of pH measurement ....................- 3 - ： Technical Parameters ....................- 4 - Fluoride ..........................- 4 - pH ............................- 4 - mV ............................ -
Page 3: Overview
Overview Thank you for purchasing the Apera Instruments WS100 Fluoride/pH Portable Meter Kit (Hereon after referred as the meter). This fluoride/pH combo meter is widely used for drinking water, surface water and other water treatment applications, ideal for both in-field and laboratory testing. -
Page 4: Technical Parameters
Technical Parameters： 2.1 Fluoride Measurement range 0.02 ppm to 1900 ppm Display units mg/L, ppm, pF Accuracy ±0.02 ppm or ±5% of reading (whichever is greater) Temperature (0-80) ℃ (Automatic) Compensation Range 2.2 pH Measurement range (-2.00 - 19.99) pH Resolution 0.1/0.01 pH Accuracy... -
Page 5: Instrument Description
Instrument Description 3.1 LCD Display ① —— Parameter mode ② —— Measurement value ③ —— Measured value storage and display of numbers, symbols indicate: M+ — Store Measured value RM - Recall measurement values icon ; ④ —— Measurement unit ⑤... -
Page 6: Data Storage, Recall Data, And Clear Data
3.3 Data Storage, Recall Data, and Clear Data: 3.3.1 Data Storage While in the measurement mode, when the measurement data is stable and the smiley face icon appears, short press key (＜1.5s), LCD will display “ M+ ” icon and a storage serial, and meanwhile storing all of the measurement information. -
Page 7: Sample Measurement
on the screen, indicating the meter has entered the 2nd point calibration mode and the calibration solution is 19.00 mg/L. 4.2.3 Take out the electrode and shake off excess solution, then dip it into 19.00 mg/L calibration solution, stir gently and let it stand still. When the reading is stable and stays on screen, press again to finish 2nd point calibration. -
Page 8: Notes
4.4.3 Auto-off time setting (P3) In P2, press to enter P3，remaining operations see section 5.4.7 4.4.4 Restore factory default (P4) In P3, press to enter P4，remaining operations see section 5.4.8 Notes 4.5.1 The meter does not automatically recognize calibration solutions. Please make sure to use correct calibration solution according to the displayed reminders "0.19 mg/L"... -
Page 9: Ph Measurement
pH Measurement 5.1 Preparation Connect the 201T-S pH Electrode to the meter (pay attention to the inserting direction); loosen the cap of the storage bottle of electrode; screw off the storage bottle; Press to turn on meter. The meter automatically switches to pH measurement mode. -
Page 10: Sample Measurement
measurement mode. The indication icon M standing for one-point calibration will appear on the lower left corner of LCD. When the requirement of accuracy is ≤±0.1pH, users can perform a one- point calibration with the pH7.00 buffer solution. (b) After the second-point calibration, (see item 5.2.3.), press to confirm two-point calibration and return to measurement mode. - Page 11 Auto power off setting 0-10-20min Restore to Factory Default OFF-On 5.4.2. pH buffer solution series selection (P1) (a) Press key, meter enters P1 mode: see picture (4-2). (b) Press key to choose buffer solution series: ⚫ U.S.A series —1.68, 4.00, 7.00,10.01 and 12.45 pH ⚫...
- Page 12 5.4.5. Temperature unit ℃/℉ setting (P4) (a) Short press key in mode P3 to enter mode P4, see picture (4- (b) Press key to choose temperature unit: ℃ or ℉. (c) Press key to enter next parameter setting or press to confirm and return to measurement mode.
- Page 13 Notes 5.5.1. The frequency that you need to calibrate your meter depends on the tested samples, performance of electrodes, and the requirement of the accuracy. For high-accuracy measurements (≤ ±0.02pH), the meter should be calibrated before test every time; For ordinary-accuracy measurements (≥±0.1pH), once calibrated, the meter can be used for about a week or longer.
-
Page 14: Self-Diagnose Information
Table-8 Clean contaminated glass bulb and junction Contamination Cleaning Solutions Inorganic metal oxide Dilute acid less than 1mol/L Organic lipid Dilute detergent (weak alkaline) Resin macromolecule Dilute alcohol, acetone, ether Proteinic haematocyte sediment Acidic enzymatic solution (saccharated yeast tablets) Paints Dilute bleacher, peroxide Every pH electrode gradually loses its sensitivity and will eventually fail. -
Page 15: Orp Measurement
APERA INSTRUMENTS, LLC, any malfunctioned or damaged product attributable to responsibility of APERA INSTRUMENTS, LLC for a period of two years from the delivery (a six-month limited warranty applies to probes). This warranty does not apply to defects resulting from actions such as misuse (violation of the instructions in this manual or operations in the manner not specified in this manual), accidental damage, improper maintenance, or unauthorized repairs. -
Page 16: Appendix 1. Fluoride Concentration Conversion Table
19.00 19.00 1 × 10 4.00 1.90 1.90 1 × 10 5.00 0.19 0.19 APERA INSTRUMENTS, LLC Address: 6656 Busch Blvd, Columbus, OH 43229 Phone: 1-614-285-3080 Website: Email: info@aperainst.com a p er a in st. co m - 16 -...
