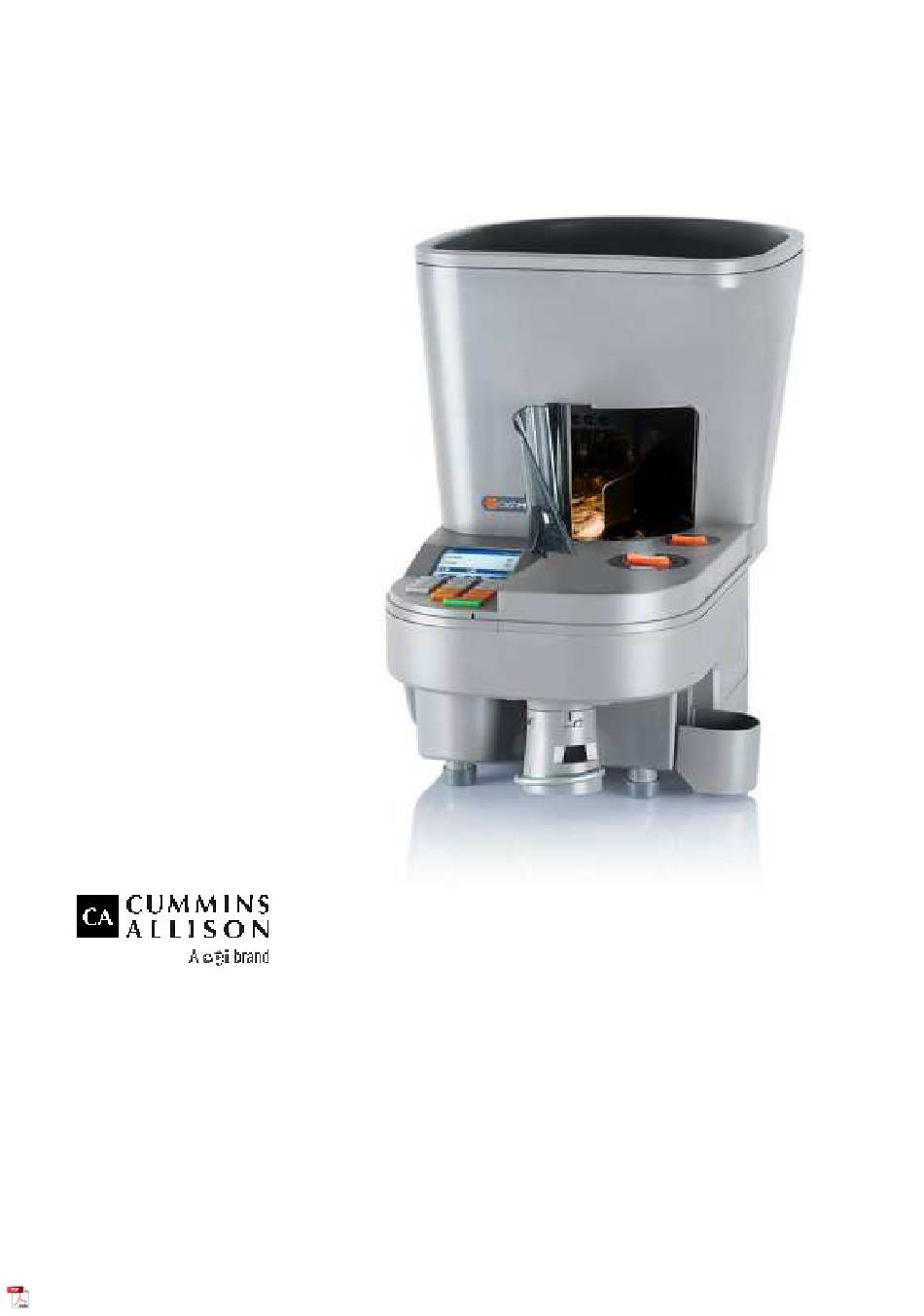

- Page 1 CMX02 User Manual 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191 Copyright © 2022 Cummins Allison ULC...
-
Page 2: Table Of Contents
Screen display ..............................12 Counting mode..............................12 Batch selection ..............................12 Maintenance ................................14 Troubleshooting ..............................15 Certifications ................................16 Specifications ................................. 17 CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 3: Introduction And Intended Use
Warning of possible device tilting. Do not exceed the weight of 9 kg in Risk of tilting the counting bag and 7 kg in the reject bag. (See also Chapter “Installation”) Front / Rear View CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... - Page 4 Count exit with Quick-change switch Foot pedal connector Coin Hopper Printer port (RS232) Coin tray support rod Carry handle Power cord socket & main switch CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191...
-
Page 5: User Interface
Delete count result and bag content Delete Memory Select new denomination or coin Denomination number. Show memory total. Enter setting menu Setting Show key functions Help CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 6: Installation
But ensure the front feet of the CMX02 remain in fully resting on the table/work surface. Reject exit Count exit with Bagging unit Front feet Table edge Minimum table size: 440 x 240 mm 440mm 620mm CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 7: Bag, Box Installation
A bag is fixed by: Move the metal ring upwards, wrap the bag around the tube and clamp it by moving down the ring. CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 8: Setting The Coin Size
Turn the adjuster backward until the token moves freely and has side clearance of about 0.4 mm. CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 9: Coin Preparation
Note: Value or piece counting is selectable in Setting menu, option “Counting mode” Select Denomination Adjust both the thickness and diameter knobs to the desired coin denomination and attach an CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 10: Memory
The CMX02 has three stop levels. The active stop level type is defined in the “Settings” menu. Batch 1: Individual stop number for every denomination CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 11: Clear Incomplete Bag
“0”, which may lead to an incorrect bag stop. To delete the bag content, hold the “B” key for about 3 seconds. CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 12: Settings Menu
The CMX02 has three stop levels: Batch 1: Individual stop number for every denomination Batch 2: One stop number for all denominations Off: No stop CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... - Page 13 After you have made all required adjustments, Press the ON/OFF to exit to the menu screen and press it again to enter to the main counting screen. CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191...
-
Page 14: Maintenance
Daily cleaning: Remove the dirt from the coin track. Wipe the dust away under the counting sensor. Use a soft brush and a lint-free cloth. CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 15: Troubleshooting
(99,999.99) The disc full sensor is Coin feeder does not start Check and remove the disc full sensor blocked. CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 16: Certifications
Shiguo Cheng Martin Blankenburg Position: Managing Director Technical Director This product meets furthermore the requirements of the EC directives RoHS 2011/65/EC - WEEE 2002/96/EC CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 17: Specifications
Diameter: 14 - 34 mm Coin size range Software Update SD-Card Thickness: 0.8 – 3.8 mm 3” color LCD see „Accessories” Display Options CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191...
