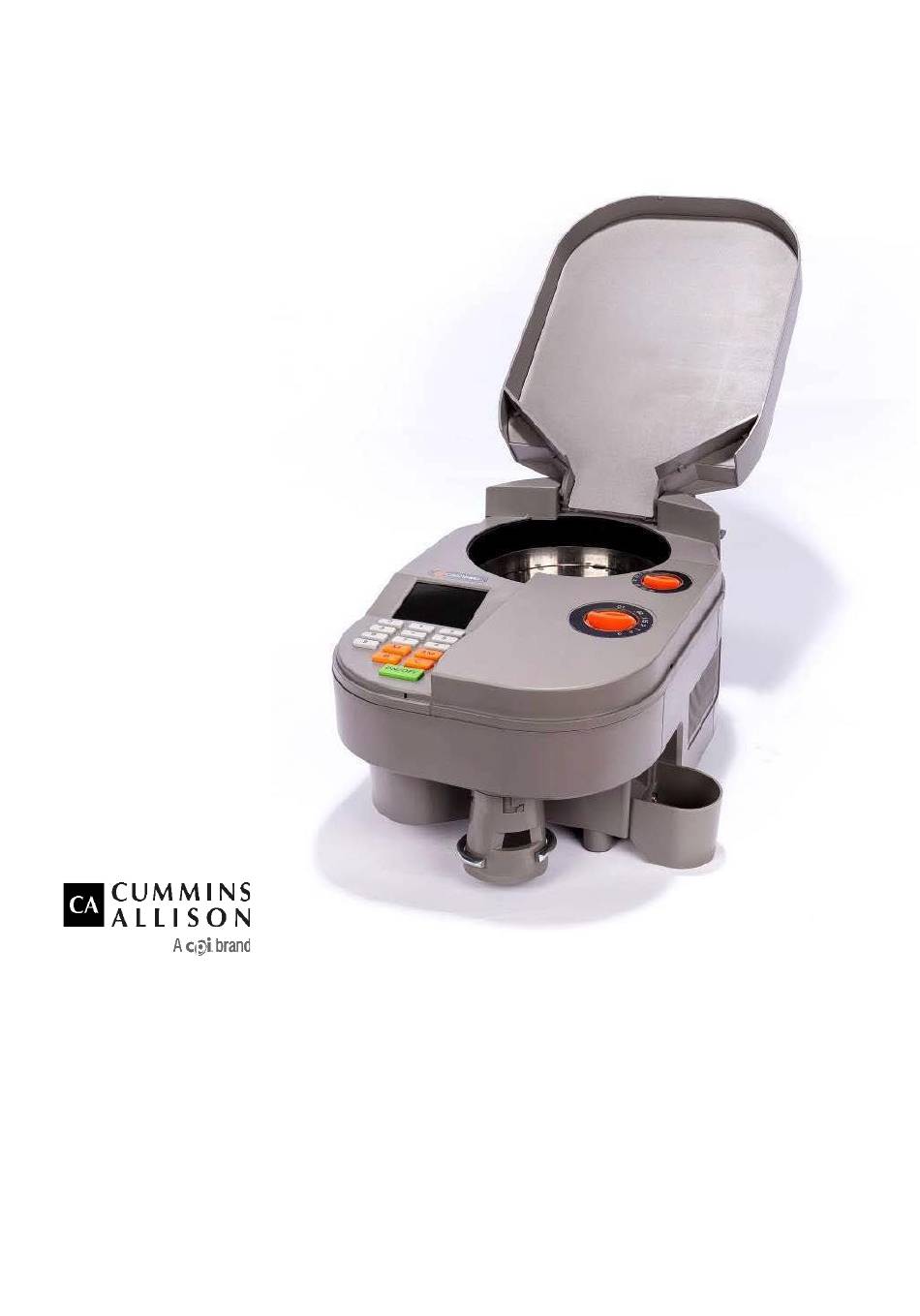

- Page 1 CMX01 User Manual 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191 Copyright © 2022 Cummins Allison ULC...
-
Page 2: Table Of Contents
Batch selection ..............................12 Value (Denom) / Batch Setting ........................... 13 Maintenance ................................14 Troubleshooting ..............................15 Certifications ................................16 Specifications ................................. 17 CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 3: Introduction And Intended Use
Introduction and Intended Use The CMX01 is a high-speed counter for coins and tokens. It is designed to count a very wide range of coin sizes. The pre-selected coin size will be counted while smaller coins are being rejected without slowing down the counting speed. -
Page 4: Front / Rear View
Count exit with Quick-change switch Coin tray support rod Foot pedal connector Printer port (RS232) Device S/N label Carry handle Power cord socket Main Switch CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 5: User Interface
Deletes count result and bag content Deletes memory Select new denomination or coin Denomination number. Show memory total. Setting Enter setting menu Help Show key functions CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 6: Installation
The main fuse protection must be minimum 1.5A. Install the CMX01 where no one can step on it or trip over the line cord, and the line cord cannot be damaged. The seating area must be stable, solid, and smooth. -
Page 7: Bag, Box Installation
Bag, Box Installation The CMX01 has one counting and one reject exit. The counting exit is provided to clamp a coin bag on but can be also used for the optional tubing kit. On the reject exit a cup or a bagging unit can be attached. When using the reject bagging unit, the CMX01 must be placed on the left side of the desk, so the reject bag hangs freely. -
Page 8: Setting The Coin Size
Turn the adjuster backward until the token moves freely and has side clearance of about 0.4 mm. CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 9: Coin Preparation
Before counting make always sure the desired coin denomination is selected on BOTH dials. Counting Press “On/Off” key to start the count or push the coin exit to activate the Quick-change switch. The CMX01 shows the counted quantity or value. When the count is finished the CMX01 stops automatically. (You can also press “On/Off”... -
Page 10: Memory
Memory Add Memory The CMX01 adds automatically full bags to the memory. When a count is finished and a bag stop is not reached, it is possible to accumulate the count to the memory by pressing “M”. After pressing “M” the Count/ Value is reset to “0”. -
Page 11: Bag Stop
Note: A steady stop in “Batch 1” must be entered in the Settings menu, option “Denom/Batch setting”. Clear Incomplete Bag When you install an empty bag without a request from the CMX01, you must clear the Bag content, otherwise, the counter will not start with “0”, which may lead to an incorrect bag stop. -
Page 12: Settings Menu
The CMX10 has three stop levels: Batch 1: Individual stop number for every denomination Batch 2: One stop number for all denominations Off: No stop CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 13: Value (Denom) / Batch Setting
After you have made all required adjustments, Press the ON/OFF to exit to the menu screen and press it again to enter to the main counting screen. CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 14: Maintenance
Daily cleaning: Remove the dirt from the coin track. Wipe the dust away under the counting sensor. Use a soft brush and a lint-free cloth. CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 15: Troubleshooting
Troubleshooting In case of an error event, the CMX01 stops and shows an error message. The messages and locations are explained below. When the error is solved, confirm the message, and press on/Off to continue to count. When the error appears repeatedly and you cannot fix that problem, please call the service, and tell them the error message. -
Page 16: Certifications
Shiguo Cheng Martin Blankenburg Position: Managing Director Technical Director This product meets furthermore the requirements of the EC directives RoHS 2011/65/EC - WEEE 2002/96/EC CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191... -
Page 17: Specifications
Diameter: 14 - 34 mm Coin size range Software Update SD-Card Thickness: 0.8 – 3.8 mm Display 3” color LCD Options see „Accessories” CUMMINS ALLISON, A CPI BRAND 3350 Ridgeway Drive, Unit 3, Mississauga, Ontario L5L 5Z9 www.cranepi.com Tel: 1-800-499-6191...
