Summary of Contents for CUMMINS ALLISON JetSort 2000

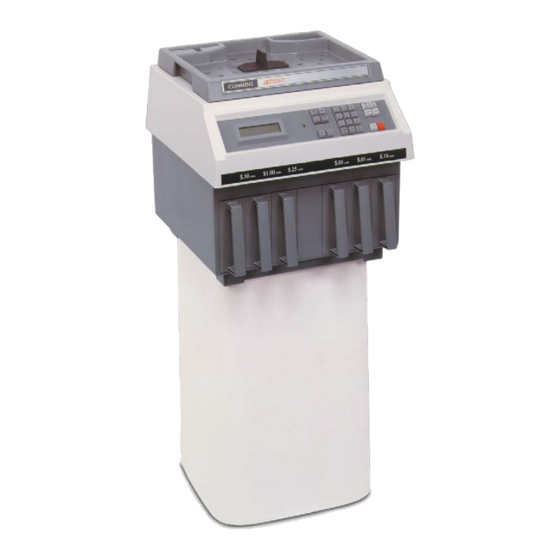

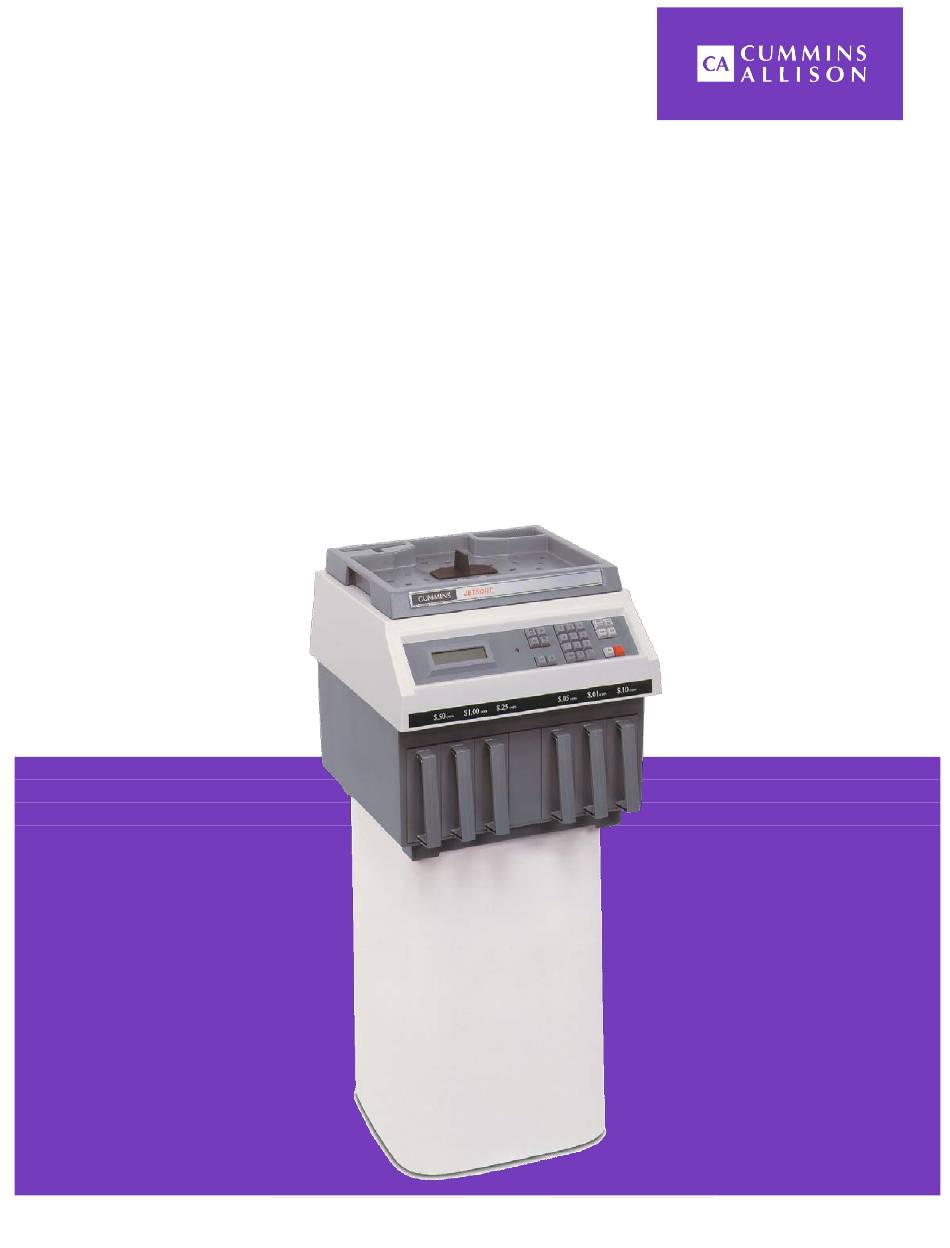

- Page 1 JetSort 2000 ® High-Speed Coin Sorter/Counter Operating Instructions...
- Page 2 Turn power OFF and unplug power cord from machine before cleaning. Do not defeat safety interlock switches. Do not attempt repairs. Repairs must be made by authorized Cummins Allison personnel. Plug three-prong grounded plug (supplied) into properly grounded three-prong outlet.
- Page 3 This manual is designed to provide the new user with a detailed description of the various features and modes of operation for the JetSort 2000 Series basic/advanced machines. Not all functions apply to all machines. For ease of use, the manual is divided into three sections:...
- Page 4 Operations About JetSort JetSort 2000 is designed to quickly process and count a U.S. coin set of mixed coins, including penny, nickel, dime, quarter, half dollar and dollar (all dollar types except the Eisenhower Dollar). JetSort has a sorting accuracy of 99.995 percent and processes as many as 3,600 coins per minute.
- Page 5 Control Panel The control panel includes a numeric keypad and various function keys. Key operations are described below: Red Key Description MODE/COIN Enter and exit feature setup mode. UNIT Convert displayed dollar value to unit value. Access stop-limit settings. SAVE/-- Save a stop-limit setting.
- Page 6 Batch Waiting and Batch Ended Conditions A Batch Waiting condition or Sub-Batch Waiting condition is indicated when coin sorting has stopped but has not yet been ended. To end batch processing, press END. Batch Waiting Condition 12.00 BATCH WAITING Sub-Batch Waiting Condition 166.55 S/BAT WAITING Once END is selected, the Batch Ended condition appears.
- Page 7 Sorting Batches and Sub-Batches Once a batch is started, JetSort my display prompts for additional information. The specific prompts are determined through setup selections. These prompts may include date, label, declared balance or additional media, including notes or checks. When processing a batch, these prompts may be skipped by pressing RCPT/ENTER.
- Page 8 Start Sub-Batch 1. From the batch waiting condition, press START S/BAT. 0.00 SORT S/BAT 2. Pour coin from inspection tray into sorting chamber. 3. When coin processing is complete, press [RED KEY] to stop or allow the sort disk to stop on its own (timeout).
- Page 9 Entering Labels In order to use Labels, the feature must be enabled through Setup. Labels may be entered to identify origination or processing information, such as route numbers, bag numbers or customer IDs. If Labels A, B, C or D are enable in Setup, an entry is required during batch processing.
- Page 10 3. The screen displays the batch amount in relation to the declared value. If the amount declared and the amount processed is the same, the total batch amount appears on screen with EVEN displayed in the upper-left corner. EVEN 5.25 BATCH ENDED If the amount declared is more or less than the amount processed, the difference between the declared and processed amounts appears on the screen with SHORT or...
- Page 11 Retrieving IDs If JetSort is equipped with ID software, totals for individual or collective IDs may be displayed. ID totals are displayed through the DAY key. The DAY key will switch to ID when pressed. 00.00 When the cursor is moved to DAY, “DAY” changes to read “id 0.” The value in the upper right hand corner of the display represents the total value of coin processed that “day”...
- Page 12 g IDs Clearin Clear IDs individually or all IDs at once. Clearing all IDs at once will clear the Day. 1. From a Batch Ended screen press the MODE/COIN button. 2. Use the < and > keys to scroll to DAY. 3.
- Page 13 Stop Limits: Programmable Jet-Stops (PJS) A PJS limit is the amount at which coins stop filling boxes for each denomination. PJS limits can be set to restrict the number of coins within a box or to restrict the value of coins within a box.
- Page 14 2. With the cursor under ALL, enter the file number on the numeric keypad. The limits for each denomination are automatically set to the saved limits. FULL FILE 10 c 3. Press PJS. Change PJS Limits by Denomination Value This process changes a denomination limit but does not permanently save the limit.
- Page 15 4. Press SAVE to permanently save the new limit. 5. Enter a two-digit number between 03 and 99 that has not been previously assigned. SAVE FILE 10 c Press PJS. Note: The new limit must not be lower than the amount of coin already processed into the box or higher than the capacity of the container.
- Page 16 Clear Box before Limit is Reached A box may be cleared before a limit is reached in order to reduce the number of stops during sorting. 1. Remove the box to be cleared and replace it with an empty box. 2.
- Page 17 4. Press MODE/COIN. Cursor defaults to ALL. 5. Press CLEAR. 144.20 10 c 144.20 CLEAR ALL BOXES? 6. Press CLEAR again to clear boxes and return to the Batch Ended condition. Clear DAY Totals 1. Press MODE/COIN to move cursor to bottom line. 2.
- Page 18 Display Totals From a Batch Ended Condition, press MODE/COIN. 0.00 Press < or > until the cursor is under the desired mode (see mode descriptions below). Mode Description Total coin value of current batch. Total coin value of current sub-batch. Total coin value of all boxes.
- Page 19 View Coin, Receipt or Combined Totals Select RCPT/ENTER to view totals for coin only, receipts only, or receipts and coins combined for current batch, sub-batch or day total. Display identifies total type: 1289.34 BATCH WAITING 100.00 RCTS BATCH WAITING 1389.34 R&C BATCH WAITING Mode...
- Page 20 Printed Report The following is an example of printed reports representing a single batch composed of two sub-batches. All data fields in the example are enabled in Setup. Only fields enabled in Setup, the field does not appear on the printed report. SUB-BATCH REPORT DATE: 3-18-11...
- Page 21 Verify Counts Coins may be sorted and counted without adding the amount to the batch, sub-batch or day totals. 1. From a Batch Ended condition, pour coins to be counted into inspection tray. Press VERIFY. 0.00 VERIFY 2. Press [RED KEY] or wait for process to timeout. Record the amount. 155.21 VERIFY WAITING 3.
- Page 22 Setup Setup menu screens are sequential. To set or change a programmed feature, press < or > to scroll through the menu selections until the desired feature menu is reached. Once the desired feature is modified, press MODE/COIN to return to the menu selections.
- Page 23 Set Specific Denomination to Box/Bag 1. Press MODE/COIN to move the cursor to the bottom menu line. 2. Press < or > to scroll forward to the desired denomination: 1¢, 5¢ or 10¢. 3. Press CONT to change the specific denomination to Box or Bag. ...
- Page 24 Currency, Checks and Miscellaneous Media The JetSort allows users to enter, as part of a batch and sub-batch, values for other media, such as currency, checks, and miscellaneous media (MISC) - including but not limited to: travelers’ checks rolled coin and tickets. Each menu has three modes: Dollars And Cts, Dollars Only and No.
- Page 25 Labels The Label menu allows users to identify batches and sub-batches on printed reports in four user-defined categories. Labels, such as route numbers, bag numbers or customer #s may be entered for each batch or sub-batch. Each label may have as many as 12 digits Label information is entered during batch processing and is not stored in long-term memory.
- Page 26 Date The Date menu may be On or Off. If the date option is on, the user is prompted to enter a date at the beginning of a new batch, after clearing DAY totals. Dates are entered on the numeric keypad, followed by Enter.
- Page 27 End Key Requirement Setting the End Key requirement impacts the user process for closing batches and sub-batches. End-Key Description Requirements The user is required to select End following each sub-batch. The next sub- Yes, Needed batch cannot begin until End is selected. The user selects End a second time to end a batch.
- Page 28 4,000 coins. For additional information about coin-volume settings, contact a Cummins Allison representative. The Pulse determines the length of time the auto oiler motor will be on when it is activated to dispense oil.
- Page 29 Prime and Check Oiler The Shot and Prime features are used for initial auto oiler setup. Shot dispenses one drop of oil onto the sort head. 1. Press MODE/COIN to move the cursor to the bottom menu line. 2. Press CONT to select On to dispense one drop of oil onto the sort head. Wipe off any excess oil with a soft cotton cloth and discard the cloth when finished.
- Page 30 Report printing may be set to Auto or Dmnd. Report Setting Description Batch and sub-batch reports print automatically following the end of each Auto closed transaction. Dmnd Setting not used. 1. Press MODE/COIN to move the cursor to the bottom menu line. 2.
- Page 31 Print Mode 1 SUB-BATCH REPORT SUB-BATCH REPORT DATE: 3-18-11 DATE: 3-18-11 AUDIT: 00145-0120-002 AUDIT: 00144-0120-001 UNIT VALUE COIN TOT. 7.63 UNIT VALUE CHECKS 75.23 COIN TOT. 0.98 NOTES 373.00 CHECKS 123.39 GIFT CARDS 0.00 CURRENCY 527.00 TOTAL RECEIPTS 448.23 MISC. 20.00 __________ TOTAL RECEIPTS...
- Page 32 BATCH REPORT DATE: 3-18-11 AUDIT: 00145-0120-002 00154-0125-001 SB 353.16 00155-0125-002 SB 39.52 00156-0125-003 SB 367.78 00157-0125-004 SB 228.47 Id # RCPTS TOTAL 00157-0125-004 B 988.93 670.37 448.23 455.86 COIN UNIT VALUE Print Mode 4 0.01 0.05 0.10 0.25 7.00 353.16 UNIT VALUE 39.52...
- Page 33 Print Format 2 Print Format 2 has two features: 1) ID Breakdown and 2) Red Totals. The ID Breakdown feature details each transaction by user ID on printed reports. To properly record IDs for this printed report, the ID Codes feature must also be On (for more information, see SETUP/ID Codes).
- Page 34 +ACK. If JetSort does not get a response from the computer, “Comm Link Error” appears. (– ACK) Disable Acknowledge option. Comm Mode: Immediate –Ack Consult a Cummins Allison representative to set communication mode protocols. ® 34 | JetSort 2000 series | Setup...
- Page 35 JetCount . In order to connect a peripheral device to the JetSort, select the appropriate data transmission functions, such as baud rate, stop bits and parity. For more information, contact your local Cummins Allison Representative. Device Options Description Printer...
- Page 36 To change port configurations for Port 1, Port 2, Port 3 or Port 4: 1. Press MODE/COIN to move the cursor to the bottom menu line. 2. Press CONT to select device: Prt, Co, Bcr, JtS, JtC Rmt or Off. 3.
- Page 37 Reference Error recovery If a jam occurs while sorting coin, or if there is a sensor malfunction, the JetSort immediately stops, the red error light flashes and the display blinks one of two error messages: • SENSOR ERROR – jam has occurred at the sensor •...
- Page 38 Table error recovery Sorting Halted TABLE ERROR 1. Remove the inspection tray and, using a non-metallic tool, clear all loose coin from sort disk area. 2. Press CLEAR to clear the error. 3. The message “SENSORS CLEARED, Verify or Cont” will appear. 4.
- Page 39 Removing oil from disk negatively impacts performance and may negate disk warranty. If disk cannot be cleaned with a clean, dry microfiber towel or cotton cloth, contact a Cummins Allison service representative for assistance. ® Reference | JetSort...
- Page 40 5. Remove any debris by hand and clean disk if needed using dry microfiber towel, a clean cotton cloth, or a soft, non-metallic brush. Sort head damage can result from using metallic brush. Use only soft, non-metallic brush as instructed by a Cummins Allison representative. To prevent damage and to maintain coin-sorting function as designed, do not brush sort pad that rests on lower disk.
- Page 41 Highlights information that is necessary or useful to know prior to executing a procedure. Highlights information that is interesting or useful to know after completing a procedure. Specifications JetSort 2000 99.995+ percent (one mis-sort possible in 20,000 Accuracy normal/undamaged circulated coins) 1 cent single box/bag...
- Page 42 Information is subject to correction or change without prior notice. This manual contains proprietary information of Cummins Allison. It is intended solely for the information and use of parties authorized by Cummins Allison to maintain the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without express written permission of Cummins Allison.
Need help?
Do you have a question about the JetSort 2000 and is the answer not in the manual?
Questions and answers
Had power dip, front panel of 2000 shows line of black boxes. How do i do a default reset?
To reset the CUMMINS ALLISON JetSort 2000 after a power dip, follow these steps:
1. Turn the power switch off (located on the back of the machine next to the power cord).
2. Press and hold the START BATCH button.
3. Turn the power switch back on while continuing to hold START BATCH.
4. Release the button when the setup menu appears.
This process will allow you to access the setup menu and restore default settings if needed.
This answer is automatically generated
@Mr. Anderson
@Clayton Toupard
reset didn't work ... I sincerely appreciate you responding to my question. My guess is that the main circuit board may have an issue. I'll drop the machine off to Cummins .... Ahhhhhhh!
If the reset did not work, follow these troubleshooting steps for the JetSort 2000:
1. Check for Obstructions:
- Remove the inspection tray.
- Use a non-metallic tool to clear any blocked sensors or loose coins from the sort disk area.
2. Clear Errors:
- Press the CLEAR button to reset the error message.
- If a sensor is still blocked, the screen will indicate which one needs attention.
3. Verify or Continue:
- If the sensor has been cleared, the message "SENSORS CLEARED, Verify or Cont" will appear.
- Press CONT to resume the transaction.
4. Reconcile Batch (if necessary):
- If verification of processed coins is required, press the Verify key and follow the Reconcile Batch instructions.
If the issue persists, contact authorized Cummins Allison personnel for further assistance.
